Product Number: RV5PPTM12JBK

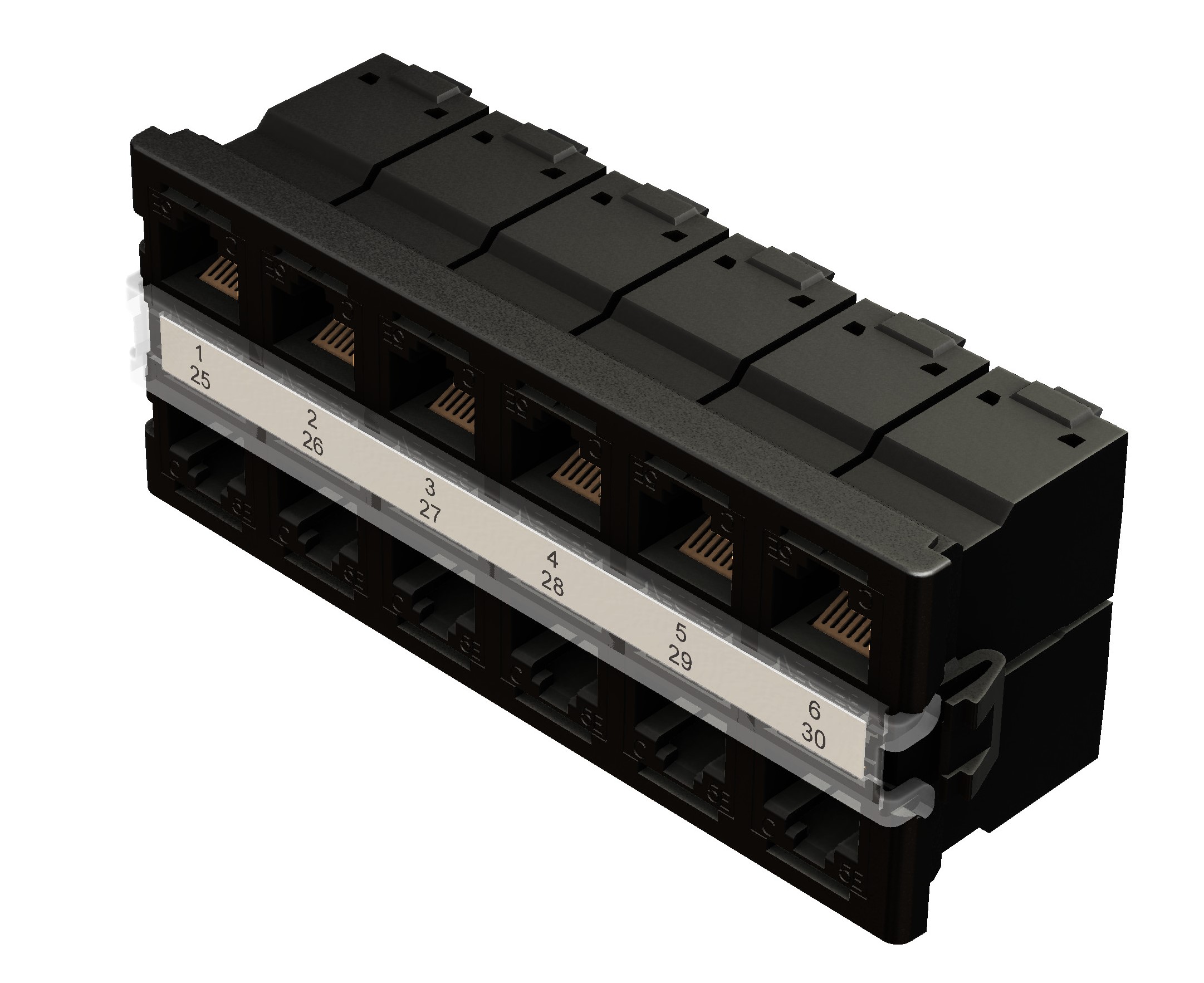

REVConnect HD Patch Panel Termination Module, Cat 5e, 12 Port
REVConnect Category 5e Patch Panel Termination Module, 12 Port, Black
-
Availability:
Global
-
Global inventory:
Available
Specifications
Product Overview
|
Suitable Applications |
REVConnect 1200 System, Ethernet 1000BASE-T, Ethernet 100BASE-TX, Ethernet 10BASE-T, PoE++, PoE+, PoE |
|---|
Physical Characteristics (Overall)
|
Height |
1.73 |
|---|---|
|
Width |
4.33 |
|
Depth |
1.52 |
|
Port Count |
12 Port |
|
Packaging |
Individually packaged in a cardboard box. |
|
Weight |
0.353 |
Connectors
Materials
| Description | Material | Type |
|---|---|---|
| Front Connection | Copper Clad Flexible PCB, 50µin Gold-plated Contacts over Nickel | RJ45 |
| Rear Connection | Copper Alloy, Gold-plated Contacts over Nickel | REVConnect |
| Connector Body | PBT Glass Reinforced UL94V-0 |
Construction and Dimensions
|
Max Capacity |
12 Connectors (Preloaded) |
|---|
Electrical Characteristics
|
Dielectric Strength |
1,000 V RMS @ 60 Hz for 1 minute |
|---|---|
|
Current Rating |
1.300 A |
|
Insulation Resistance |
500 M-Ohm Minimum |
|
Termination Resistance |
2.5 mOhm |
Temperature Range
|
Installation Temperature Range |
-10°C to +60°C |
|---|---|
|
Storage Temperature Range |
-40°C to +70°C |
|
Operating Temperature Range |
-10°C to +60°C |
Mechanical Characteristics
|
Footprint/Type |
REVConnect |
|---|---|
|
Tool Compatibility |
REVConnect Termination Tool (RVUTT01) |
|
Plug /Jack Compatibility |
RJ45 |
|
Termination Front Connection |
Mated Connection |
|
Termination Front Connection Durability |
750 Cycles |
|
Termination Rear Connection |
Mated Connection |
|
Termination Rear Connection Durability |
20 Cycles |
|
Cable/Connector Retention |
15 lbs |
|
Connector/Hardware Retention |
20 lbs |
|
Plug/Connector Retention |
11.250 lbs |
Standards
|
UL Rating |
UL94V-0 |
|---|---|
|
Data Category |
Category 5e |
|
TIA/EIA Compliance |
Category 5e - TIA 568-C.2 |
|
IEEE Compliance |
Power Over Ethernet (PoE) IEEE 802.3at type 1 and 2 (up to 30W), IEEE 802.3bt/D1.7 type 3 and 4 (up to 100W), CISCO UPOE (up to 60W), Power over HDBaseTTM (up to 100W) |
|
Other Standards |
FCC Part 68, Subpart F, IEC 60603-7 |
Applicable Environmental and Other Programs
|
Environmental Space |
Indoor |
|---|---|
|
EU Directive 2011/65/EU (RoHS 2) |
Yes |
|
MII Order #39 (China RoHS) |
EUP 50 |
Flammability, LS0H, Toxicity Testing
|
Safety Listing |
c(UL)us Listed |
|---|
Related Part Numbers
|
Related Parts |
REVConnect Termination Tool, Cat 5e Modular Cords, REVConnect Empty High Density Patch Panels |
|---|
Product Notes
|
Included Parts |
12 Cat 5e REVConnect High Density Jacks, Black, Preloaded; 12 REVConnect Cable Managers and Caps; 1 Clear Window; 1 Frame; 1 Installation Guide |
|---|---|
|
Notes |
For proper installation, refer to Installation Guide PX107031. |
History
|
Update and Revision |
Revision Number: 0.28 Revision Date: 05-31-2024 |
|---|
Information
|
Update and Revision |
Revision Number: 0.28 Revision Date: 05-31-2024 |
|---|
Part Numbers
| Item # | Color |
|---|---|
| RV5PPTM12JBK | Black |
