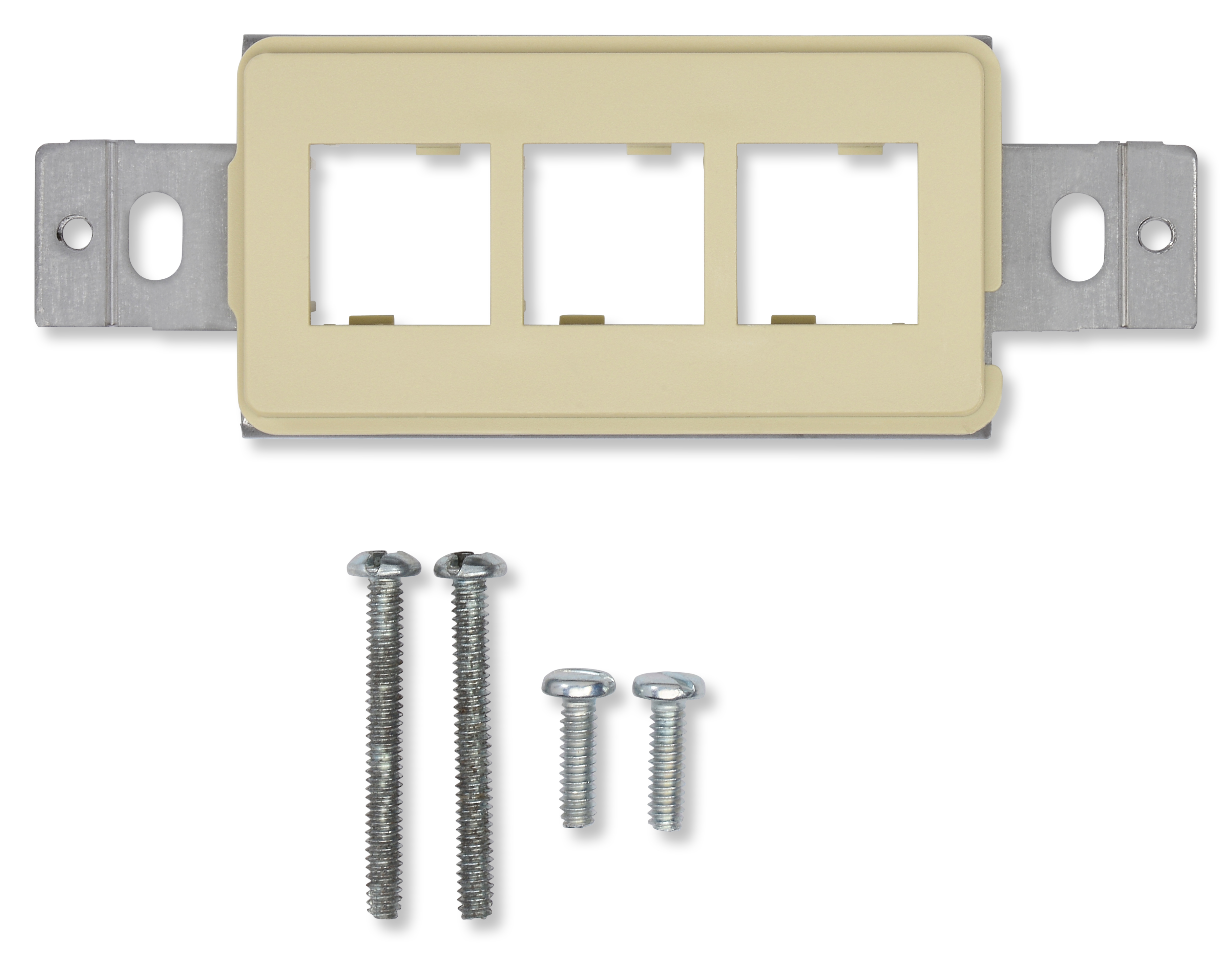

MDVO DECO ADAPTERS

3-Port MDVO Deco Adapters

...
MDVO Deco Adapters are available in many colors.
English
Request Quote
Share
Get Product Alerts

Specifications
Report An Error
Product Overview

Suitable Applications

Compatible with a variety of modules that are suitable for use with Belden IBDN Systems 10GX, 4800,3600, 2400 and 1200

Physical Characteristics (Overall)

Height

4.1 m

Width

1.43

Depth

0.567

Port Count

3 Port

Front Connection

Flush

Packaging

Individually packaged in a plastic bag.

Weight

0.11 kg
Connectors
Materials
Material
Plastic - UL94V-0
Temperature Range

Installation Temperature Range

-10 to 60°C

Storage Temperature Range

-40 to 70°C

Operating Temperature Range

-10 to 60°C

Mechanical Characteristics

Footprint/Type

MDVO

Connector/Hardware Retention

20 lbs
Applicable Environmental and Other Programs

Environmental Space

Indoor

EU Directive 2002/95/EC (RoHS)

Yes

MII Order #39 (China RoHS)

EUP 50

Flammability, LS0H, Toxicity Testing

Safety Listing

ACA, Bi-national Standard Listed

Related Part Numbers

Related Parts

Compatible with 10GX, CAT6+ and CAT5E MDVO-style Modular Jacks and MDVO Multimedia Modules

Product Notes

Included Parts

installation sheet, #6-32 screws, blank

Notes

For proper installation refer to Installation Guide P0749203 included with the product or visit our web site at http://www.belden.com

History

Update and Revision

Revision Number: 0.173 Revision Date: 03-04-2023

Show All Specifications
Hide Specifications
Part Numbers
Item # Color Port Count
A0409652 Almond 3 Port
A0409654 Black 3 Port
A0409651 Gray 3 Port
AX102593 Ivory 3 Port
A0409653 White 3 Port
Show All Parts Number
Show Less
