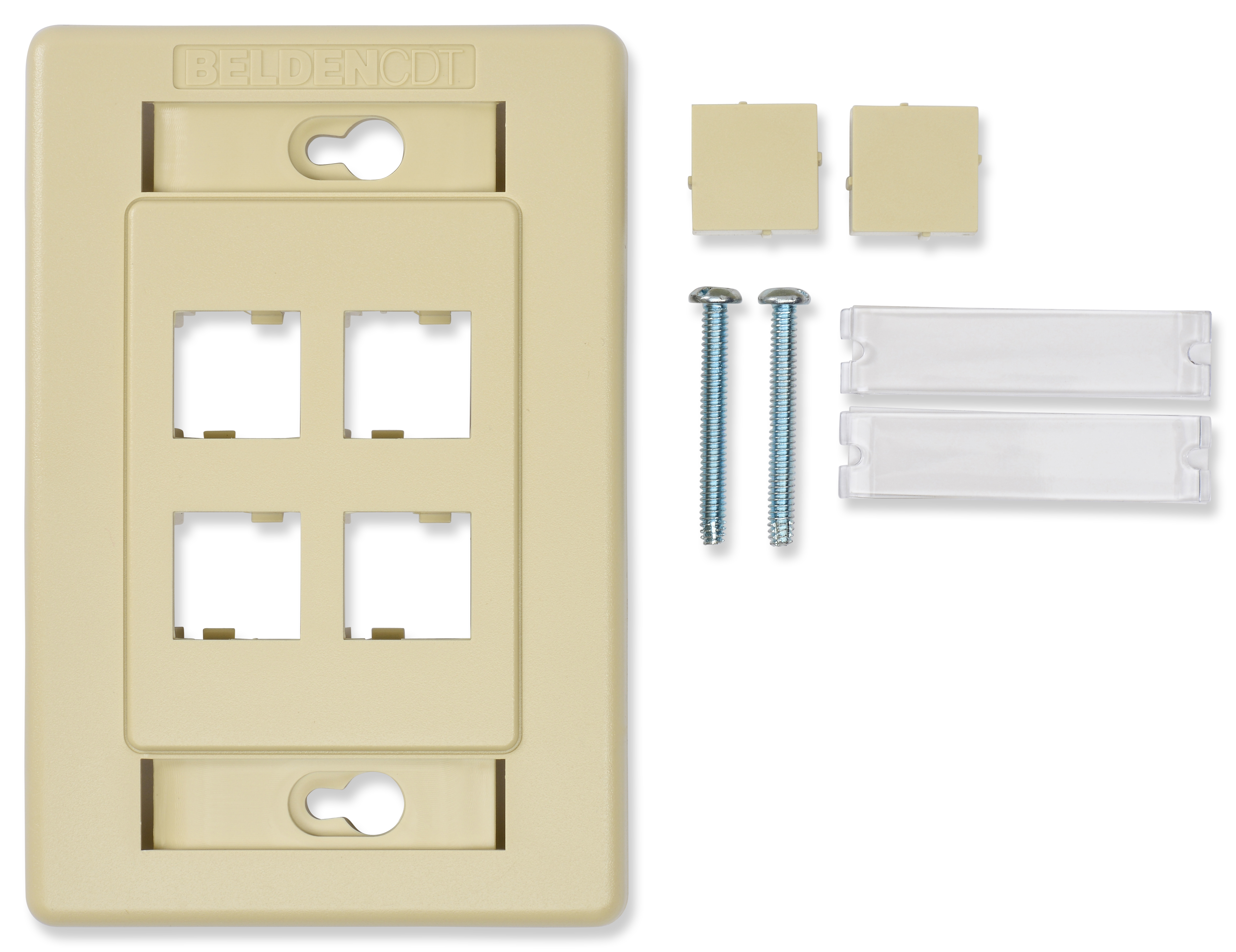

INTERFACE FACEPLATES (MDVO)

Interface Faceplate, MDVO

MDVO Interface Faceplates are available in a variety of port counts and colors.

Request Quote

Specifications

Report An Error

Suitable Applications	Compatible with Belden IBDN Systems 10GX, 4800,3600, 2400 and 1200

Height	4.49 m
Width	3
Depth	0.46
Front Connection	Flush
Packaging	Individually packaged in a plastic bag.
Weight	0.11 kg

Description	Material
Faceplate	Plastic - UL94V-0

Installation Temperature Range	-10 to 60°C
Storage Temperature Range	-40 to 70°C
Operating Temperature Range	-10 to 60°C

Footprint/Type	MDVO
Connector/Hardware Retention	20 lbs

Safety Listing	ACA, Bi-national Standard Listed

Related Parts	Compatible with 10GX, CAT6+ and CAT5E MDVO-style Modular Jacks and MDVO Multimedia Modules

Included Parts	blank, 6-32 screw, carton label, clear window, installation sheet
Notes	For proper installation refer to Installation Guide PX101806 available on our web site at http://www.belden.com

Update and Revision	Revision Number: 0.209 Revision Date: 01-11-2024
