Product Number: REV 10GX S/FTP LSZH PTERM 6

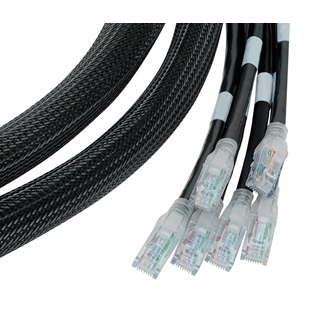

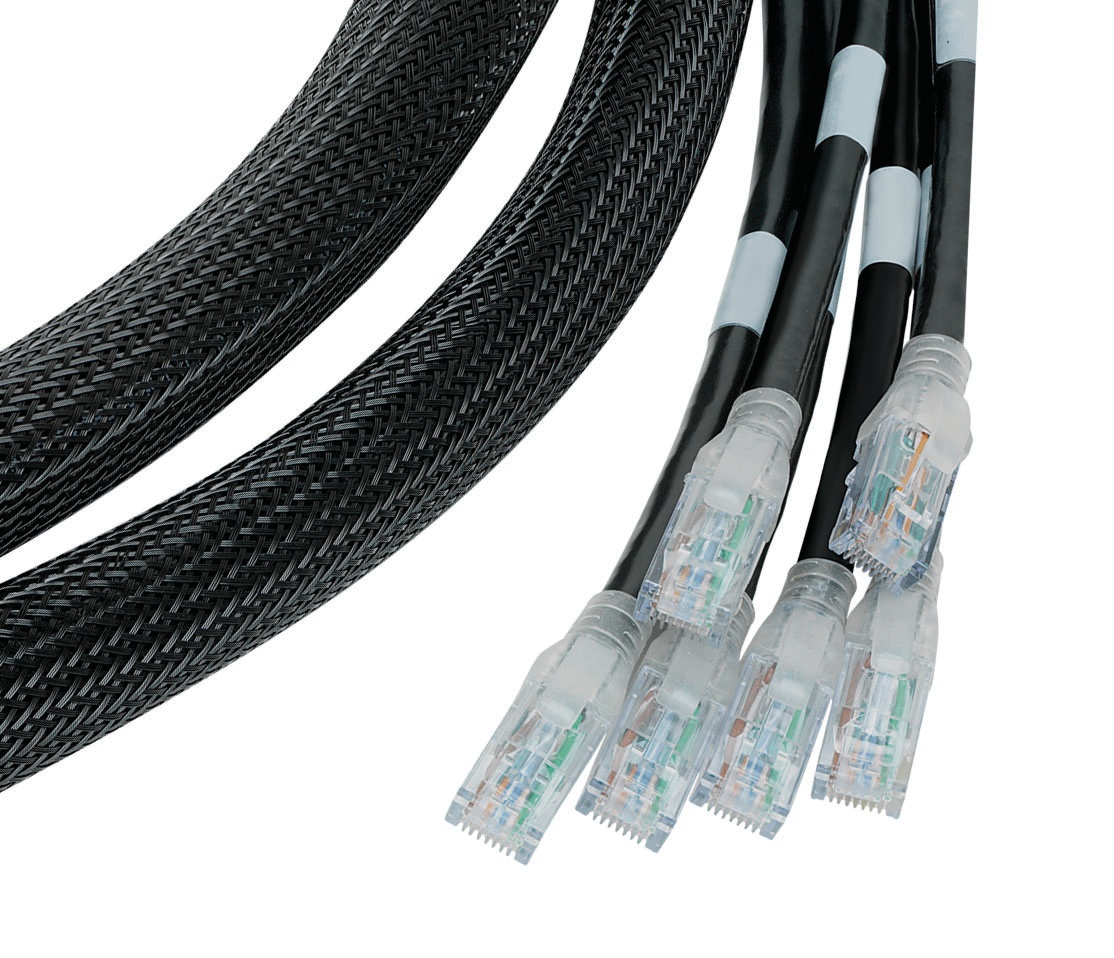

REV 10GX S/FTP LSZH PTERM 6
REV 10GX S/FTP LSZH PTERM 6
-
Availability:
Global
-
Global inventory:
Available
Specifications
Product Overview
|
Suitable Applications |
IBDN Shielded System 10GX, TIA Category 6A, 10GBASE-T |
|---|
Physical Characteristics (Overall)
|
Total Number of Pairs |
24 |
|---|
|
Wiring Scheme |
T568A/B-T568A/B |
|---|---|
|
Packaging |
Individually packaged in a box. |
Connectors
Materials
| Description | Material | Color |
|---|---|---|
| Boot | LSZH | Translucent |
| Braided Sleeve | LSZH | |
| Conductor | BC - Bare Copper | |
| Front Connection | Blades Phosphor Bronze with 50u inch Gold over Nickel Plating | |
| Outer Jacket | LSZH | |
| Insulation | PO - Polyolefin | |
| Plug | Polycarbonate |
Electrical Characteristics
|
Dielectric Strength |
1,000 V RMS @ 60 Hz for 1 minute |
|---|---|
|
Current Rating |
1.500 A |
|
Insulation Resistance |
5000 MOhm*km |
|
Max Contact Resistance |
20 mOhm |
Temperature Range
|
Installation Temperature Range |
5°C To +50°C |
|---|---|
|
Storage Temperature Range |
-20°C to +60°C |
|
Operating Temperature Range |
-20°C to +60°C |
Mechanical Characteristics
|
Min Bend Radius (Overall Cable) |
28 mm |
|---|---|
|
Plug /Jack Compatibility |
RJ45, REVConnect Core |
Termination Interface
| Connection | Durabilities |
|---|---|
| Mated Connection | 750 Cycles |
Standards
|
Data Category |
Category 6A |
|---|---|
|
TIA/EIA Compliance |
ISO/IEC 11801-1:2017; EN 50173-1 Amd 1 Caregory 6A; ANSI/TIA/EIA 568 C.2 Category 6A |
Applicable Environmental and Other Programs
|
Environmental Space |
Indoor - Euroclass Eca |
|---|---|
|
EU Directive 2002/95/EC (RoHS) |
Yes |
|
MII Order #39 (China RoHS) |
EUP 50 |
History
|
Update and Revision |
Revision Number: 0.80 Revision Date: 08-12-2024 |
|---|
Information
|
Update and Revision |
Revision Number: 0.80 Revision Date: 08-12-2024 |
|---|
Part Numbers
| Item # | Color | Length |
|---|---|---|
| CB06ASCT1W005M | White | 5 m |
| CB06ASCT1W010M | White | 10 m |
| CB06ASCT1W015M | White | 15 m |
| CB06ASCT1W020M | White | 20 m |
