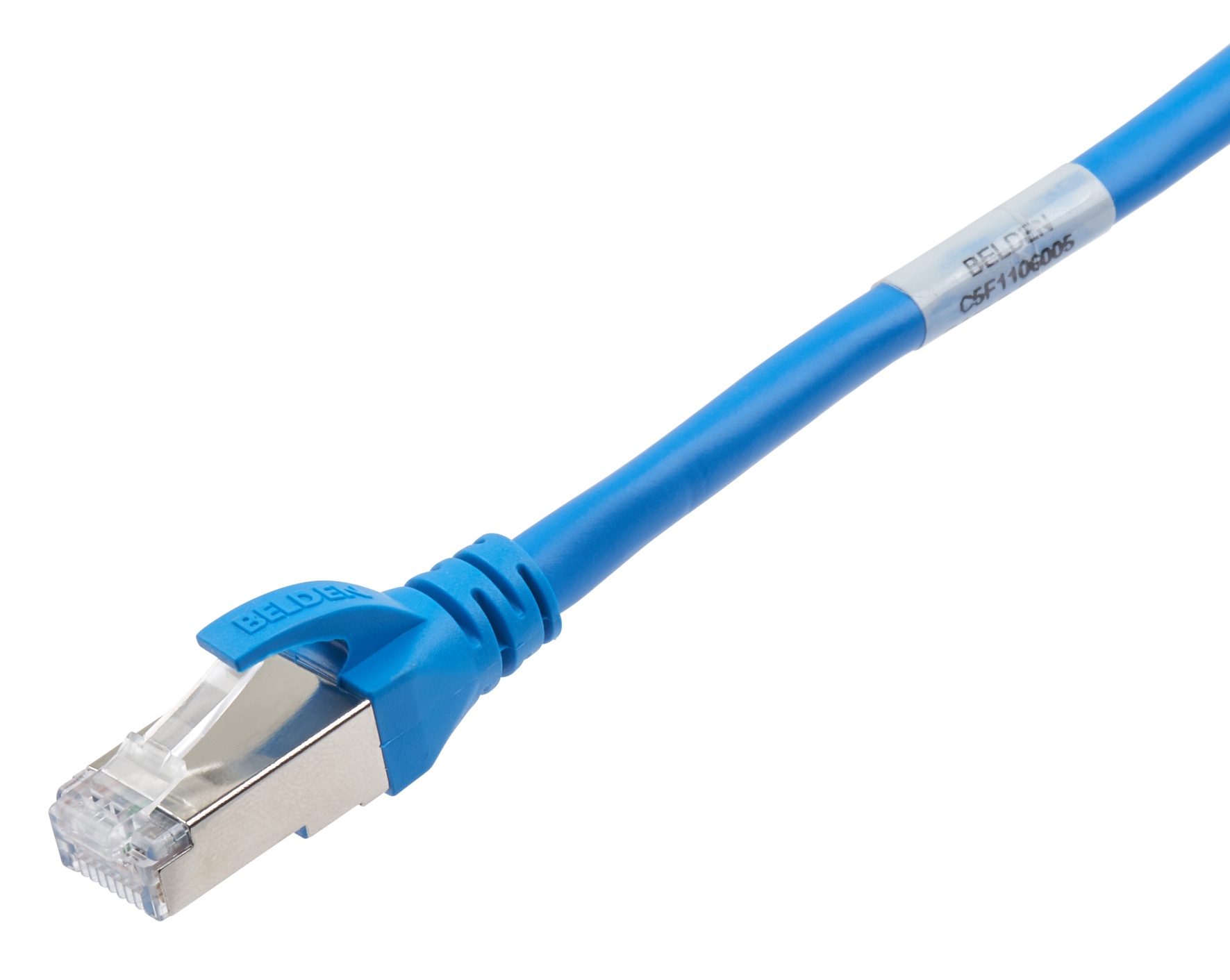

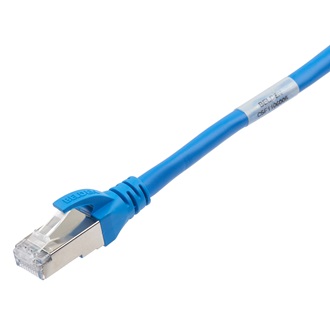

CAT5E F/UTP CMR Pigtails
|
Suitable Applications |
IBDN Shielded System Cat 5e, TIA Category 5e, ISO Class D, 1000BASE-T |
|---|
|
Total Number of Pairs |
4 |
|---|
|
Overall Nominal Diameter |
0.275 in |
|---|---|
|
Packaging |
Individually packaged in a clear plastic bag. |
| Description | Material | Color |
|---|---|---|
| Boot | Elastomer | Same as cable |
| Conductor | BC - Bare Copper | |
| Front Connection | Blades Phosphor Bronze with 50u inch Gold over Nickel Plating | |
| Inner Jacket | PVC - Polyvinyl Chloride | |
| Insulation | PO - Polyolefin | |
| Outer Jacket | PVC - Polyvinyl Chloride |
|
Dielectric Strength |
1,000 V RMS @ 60 Hz for 1 minute |
|---|---|
|
Current Rating |
1.500 A |
|
Insulation Resistance |
500 M-Ohm Minimum |
|
Max Contact Resistance |
20 mOhm |
|
Installation Temperature Range |
-10°C To +60°C |
|---|---|
|
Storage Temperature Range |
-40°C To +70°C |
|
Operating Temperature Range |
-10°C To +60°C |
|
Min Bend Radius (Overall Cable) |
2.200 in |
|---|---|
|
Plug /Jack Compatibility |
RJ45 |
| Connection | Durabilities |
|---|---|
| Mated Connection | 750 Cycles |
|
UL Rating |
Riser |
|---|---|
|
Data Category |
Category 5e |
|
TIA/EIA Compliance |
Category 5E - TIA 568-C.2, Class D - ISO/IEC 11801:2002 Ed.2 Amendment 2 |
|
Other Standards |
FCC Part 68, Subpart F, IEC 60603-7 |
|
Environmental Space |
Riser |
|---|---|
|
EU Directive 2002/95/EC (RoHS) |
Yes |
|
MII Order #39 (China RoHS) |
EUP 50 |
|
Safety Listing |
c(UL)us Listed |
|---|
|
Related Parts |
CAT5E Shielded KeyConnect Modular Jacks and Couplers, Shielded Patch Panels |
|---|
|
Labeling |
Belden Part Number, Performance Acronym, Wiring Scheme and Cord Length. |
|---|
|
Update and Revision |
Revision Number: 0.132 Revision Date: 05-10-2023 |
|---|
| Item # | Color | Length |
|---|---|---|
| C5F1206015 | Blue | 15 ft |
| C5F1206020 | Blue | 20 ft |
| C5F1206025 | Blue | 25 ft |
| C5F1206030 | Blue | 30 ft |
| C5F1206035 | Blue | 35 ft |
| C5F1206040 | Blue | 40 ft |
| C5F1206045 | Blue | 45 ft |
| C5F1206050 | Blue | 50 ft |
| C5F1206055 | Blue | 55 ft |
| C5F1206060 | Blue | 60 ft |
| C5F1206065 | Blue | 65 ft |
| C5F1206070 | Blue | 70 ft |
| C5F1206075 | Blue | 75 ft |
| C5F1206080 | Blue | 80 ft |
| C5F1206085 | Blue | 85 ft |
| C5F1206090 | Blue | 90 ft |
| C5F1206095 | Blue | 95 ft |
| C5F1206100 | Blue | 100 ft |
| C5F1306015 | Blue | 15 ft |
| C5F1306020 | Blue | 20 ft |
| C5F1306025 | Blue | 25 ft |
| C5F1306030 | Blue | 30 ft |
| C5F1306035 | Blue | 35 ft |
| C5F1306040 | Blue | 40 ft |
| C5F1306045 | Blue | 45 ft |
| C5F1306050 | Blue | 50 ft |
| C5F1306055 | Blue | 55 ft |
| C5F1306060 | Blue | 60 ft |
| C5F1306065 | Blue | 65 ft |
| C5F1306070 | Blue | 70 ft |
| C5F1306075 | Blue | 75 ft |
| C5F1306080 | Blue | 80 ft |
| C5F1306085 | Blue | 85 ft |
| C5F1306090 | Blue | 90 ft |
| C5F1306095 | Blue | 95 ft |
| C5F1306100 | Blue | 100 ft |
| C5F1208015 | Gray | 15 ft |
| C5F1208020 | Gray | 20 ft |
| C5F1208025 | Gray | 25 ft |
| C5F1208030 | Gray | 30 ft |
| C5F1208035 | Gray | 35 ft |
| C5F1208040 | Gray | 40 ft |
| C5F1208045 | Gray | 45 ft |
| C5F1208050 | Gray | 50 ft |
| C5F1208055 | Gray | 55 ft |
| C5F1208060 | Gray | 60 ft |
| C5F1208065 | Gray | 65 ft |
| C5F1208070 | Gray | 70 ft |
| C5F1208075 | Gray | 75 ft |
| C5F1208080 | Gray | 80 ft |
| C5F1208085 | Gray | 85 ft |
| C5F1208090 | Gray | 90 ft |
| C5F1208095 | Gray | 95 ft |
| C5F1208100 | Gray | 100 ft |
| C5F1308015 | Gray | 15 ft |
| C5F1308020 | Gray | 20 ft |
| C5F1308025 | Gray | 25 ft |
| C5F1308030 | Gray | 30 ft |
| C5F1308035 | Gray | 35 ft |
| C5F1308040 | Gray | 40 ft |
| C5F1308045 | Gray | 45 ft |
| C5F1308050 | Gray | 50 ft |
| C5F1308055 | Gray | 55 ft |
| C5F1308060 | Gray | 60 ft |
| C5F1308065 | Gray | 65 ft |
| C5F1308070 | Gray | 70 ft |
| C5F1308075 | Gray | 75 ft |
| C5F1308080 | Gray | 80 ft |
| C5F1308085 | Gray | 85 ft |
| C5F1308090 | Gray | 90 ft |
| C5F1308095 | Gray | 95 ft |
| C5F1308100 | Gray | 100 ft |
