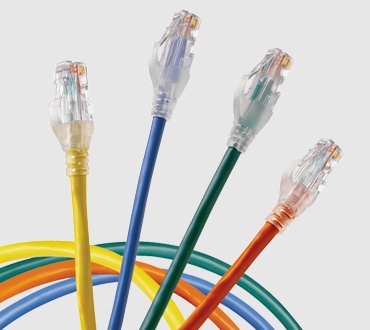

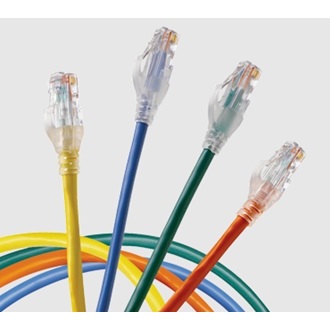

CAT5E UTP CMP Pigtails
|
Suitable Applications |
IBDN System 1200, TIA Category 5E, ISO Class D, 1000BASE-T, 100BASE-T |
|---|
|
Total Number of Pairs |
4 |
|---|
|
Overall Nominal Diameter |
0.21 in |
|---|---|
|
Packaging |
Individually packaged in a clear plastic bag. |
| Description | Material | Color |
|---|---|---|
| Boot | Elastomer | Translucent |
| Conductor | BC - Bare Copper | |
| Front Connection | Blades Phosphor Bronze with 50u inch Gold over Nickel Plating | |
| Inner Jacket | PVC - Polyvinyl Chloride | |
| Insulation | PO - Polyolefin | |
| Outer Jacket | PVC - Polyvinyl Chloride |
|
Dielectric Strength |
1,000 V RMS @ 60 Hz for 1 minute |
|---|---|
|
Current Rating |
1.500 A |
|
Insulation Resistance |
500 M-Ohm Minimum |
|
Max Contact Resistance |
20 mOhm |
|
Installation Temperature Range |
-10°C To +60°C |
|---|---|
|
Storage Temperature Range |
-40°C To +70°C |
|
Operating Temperature Range |
-10°C To +60°C |
|
Min Bend Radius (Overall Cable) |
1.040 in |
|---|---|
|
Plug /Jack Compatibility |
RJ45 |
| Connection | Durabilities |
|---|---|
| Mated Connection | 750 Cycles |
|
UL Rating |
Riser |
|---|---|
|
Data Category |
Category 5e |
|
TIA/EIA Compliance |
Category 5E - TIA 568-C.2, Class D - ISO/IEC 11801:2002 Ed.2 Amendment 2 |
|
Other Standards |
FCC Part 68, Subpart F, IEC 60603-7 |
|
Environmental Space |
Plenum |
|---|---|
|
EU Directive 2002/95/EC (RoHS) |
Yes |
|
MII Order #39 (China RoHS) |
EUP 50 |
|
Safety Listing |
c(UL)us Listed |
|---|
|
Related Parts |
CAT5E Modular Jacks and Couplers, CAT5E Patch Panels, GigaBIX Connectors |
|---|
|
Labeling |
Belden Part Number, Performance Acronym, Wiring Scheme and Cord Length. |
|---|
|
Update and Revision |
Revision Number: 0.73 Revision Date: 05-10-2023 |
|---|
| Item # | Color | Length |
|---|---|---|
| C532206015 | Blue | 15 ft |
| C532206020 | Blue | 20 ft |
| C532206025 | Blue | 25 ft |
| C532206035 | Blue | 35 ft |
| C532206050 | Blue | 50 ft |
| C532206075 | Blue | 75 ft |
| C532206100 | Blue | 100 ft |
| C532306015 | Blue | 15 ft |
| C532306020 | Blue | 20 ft |
| C532306025 | Blue | 25 ft |
| C532306035 | Blue | 35 ft |
| C532306050 | Blue | 50 ft |
| C532306075 | Blue | 75 ft |
| C532306100 | Blue | 100 ft |
| C532208015 | Gray | 15 ft |
| C532208020 | Gray | 20 ft |
| C532208025 | Gray | 25 ft |
| C532208035 | Gray | 35 ft |
| C532208050 | Gray | 50 ft |
| C532208075 | Gray | 75 ft |
| C532208100 | Gray | 100 ft |
| C532308015 | Gray | 15 ft |
| C532308020 | Gray | 20 ft |
| C532308025 | Gray | 25 ft |
| C532308035 | Gray | 35 ft |
| C532308050 | Gray | 50 ft |
| C532308075 | Gray | 75 ft |
| C532308100 | Gray | 100 ft |
| C532209015 | White | 15 ft |
| C532209020 | White | 20 ft |
| C532209025 | White | 25 ft |
| C532209030 | White | 30 ft |
| C532209035 | White | 35 ft |
| C532209050 | White | 50 ft |
| C532209075 | White | 75 ft |
| C532209100 | White | 100 ft |
| C532309015 | White | 15 ft |
| C532309020 | White | 20 ft |
| C532309025 | White | 25 ft |
| C532309035 | White | 35 ft |
| C532309050 | White | 50 ft |
| C532309075 | White | 75 ft |
| C532309100 | White | 100 ft |
