Product Number: 49906A

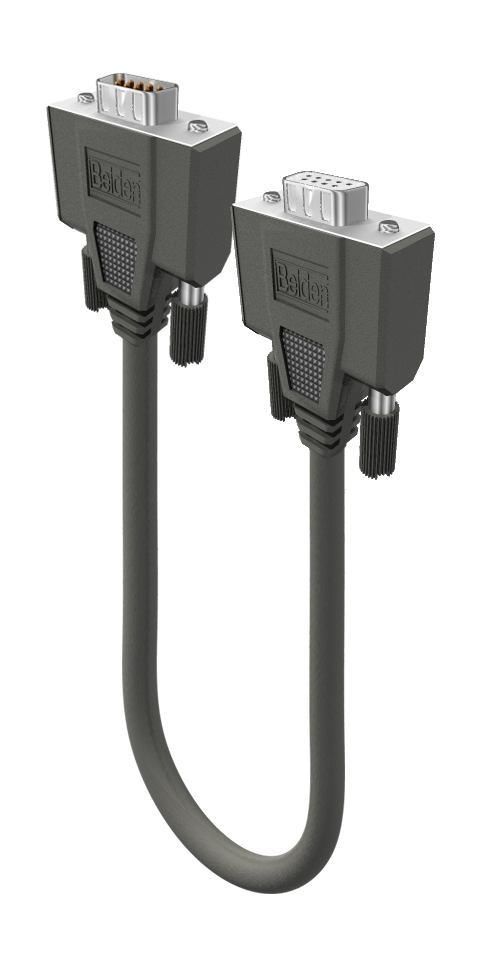

D-Subminiature Assembly, 10 ft, (9) 24 AWG (7x32) TC, S-R PVC/PVC, Foil Shld, CM
Nine 24 AWG stranded (7x32) tinned copper conductors, S-R PVC insulation, Beldfoil® shield, PVC jacket, ten foot length.
-
Availability:
Global
-
Global inventory:
Available
Specifications
Product Overview
|
Suitable Applications |
RS-232 Applications; Computer Communications; Low Voltage Analog Signals (4-20mA, 0-10V, ...); Low Voltage Digital Control (24V, …); Line Level Audio; Panel Wiring |
|---|
Physical Characteristics (Overall)
Conductor
| AWG | Stranding | Material | Nominal Diameter | No. of Conductors |
|---|---|---|---|---|
| 24 | 7x32 | TC - Tinned Copper | 0.024 in | 9 |
|
Conductor Count |
9 |
|---|
Insulation
| Material | Nominal Wall Thickness |
|---|---|
| SR-PVC - Polyvinyl Chloride (Semi-Rigid) | 0.01 in |
Outer Shield
| Type | Material | Material Trade Name | Coverage [%] | Drainwire Material | Drainwire AWG | Drainwire Construction n x D |
|---|---|---|---|---|---|---|
| Tape | Bi-Laminate (Alum+Poly) | Beldfoil® | 100% | TC - Tinned Copper | 24 | 7x32 |
Outer Jacket
| Material | Nominal Diameter | Nominal Wall Thickness |
|---|---|---|
| PVC - Polyvinyl Chloride | 0.244 in | 0.032 in |
Electrical Characteristics
Voltage
| UL Voltage Rating |
|---|
| 300 V RMS (UL AWM Style 2464) |
Temperature Range
|
UL Temp Rating |
80°C (UL AWM Style 2464) |
|---|
Standards
|
NEC/(UL) Compliance |
CM |
|---|---|
|
UL AWM Style Compliance |
AWM 2464 (300 V 80°C) (cable only) |
Applicable Environmental and Other Programs
|
EU Directive Compliance |
EU Directive 2003/11/EC (BFR) |
|---|---|
|
MII Order #39 (China RoHS) |
Yes |
Flammability, LS0H, Toxicity Testing
|
UL voltage rating |
300 V RMS (UL AWM Style 2464) |
|---|
Plenum/Non-Plenum
|
Plenum (Y/N) |
No |
|---|
Product Notes
|
Notes |
Molded handles are 100% shielded to assist in FCC compliance and guard against EMI/RFI. All connectors tin-plated and male connectors have detents for positive ground connection. Wiring is point-to-point with the shield to connector shell. |
|---|
History
|
Update and Revision |
Revision Number: 0.370 Revision Date: 02-03-2025 |
|---|
Information
|
Update and Revision |
Revision Number: 0.370 Revision Date: 02-03-2025 |
|---|
Part Numbers
| Item # | Color | Length | UPC |
|---|---|---|---|
| 49906A 060S2 | Chrome | 10 ft | 612825154396 |
