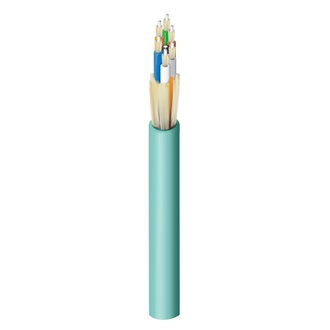

Indoor Plenum OM4 Breakout 6F 2mm Sub-Units Aqua
|
Suitable Applications |
Horizontal Backbone |
|---|
|
Fiber Type |
OM4 |
|---|---|
|
Fiber Core Diameter |
50/125μm µm |
|
Fiber Diameter |
250 µm |
|
Buffer Material |
PVC - Polyvinyl Chloride |
|
Buffer Diameter |
900 μm µm |
|
Fiber Count |
6 |
|
Fiber Color Coding |
TIA-598-D |
|
Number of Active Subunits |
6 |
|---|---|
|
Fibers Per Subunit |
1 |
|
Subunit Diameter |
0.078 in (2.0 mm) |
|
Subunit Strength Members |
Aramid yarns |
|
Central Strength Member |
Upjacketed GRP |
|
Core Wrap |
Nomex Tape |
|
Strength Member |
Aramid Yarns |
|---|---|
|
Jacket Material |
PVC - Polyvinyl Chloride |
|
Nom. Diameter |
0.309 in (7.9 mm) |
|
Color |
Aqua |
|
Number of Ripcords |
2 |
| Wavelength | 850 nm | 1300 nm |
|---|---|---|
| Max. Attenuation | 3.0 dB/km | 1.0 dB/km |
| 1 Gigabit Ethernet Performance | 1100 m | 550 m |
| 10 Gigabit Ethernet Performance | 550 m | -- |
| Min. Effective Modal Bandwidth (EMB) | 4700 MHz.km | -- |
| Min. Overfilled Launch (OFL) Bandwidth | 3500 MHz.km | 500 MHz.km |
|
Min. Bend Radius During Installation |
15x Cable OD |
|---|---|
|
Min. Bend Radius During Operation |
10x Cable OD |
|
Max. Tensile Strength During Installation |
1330 N (300 lbf) |
|
Max. Tensile Strength During Operation |
400 N (90 lbf) |
|
Crush Resistance |
100 N/cm |
|
Bulk Cable Weight |
15 lbs/kft (23 kg/km) |
|---|
|
Installation Temperature Range |
-0°C to +60°C |
|---|---|
|
Operating Temperature Range |
-0°C to +70°C |
|
Storage Temperature Range |
-40°C to +70°C |
|
Environmental Suitability |
Indoor |
|---|---|
|
Sustainability |
CA Prop 65, Product Lens™ |
|
Flammability / Reaction to Fire |
OFNP, FT6 |
|
ICEA Compliance |
S-83-596 |
|
TIA/EIA Compliance |
ANSI/ICEA S-83-596 |
|
Update and Revision |
Revision Number: 0.79 Revision Date: 05-31-2024 |
|---|
| Item # | Color | Putup Type | UPC |
|---|---|---|---|
| FI4B006PBA | Aqua | Reel | 612825369646 |
