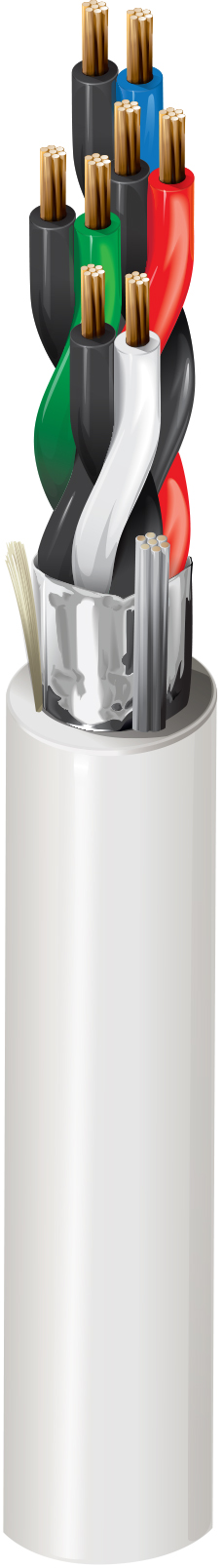

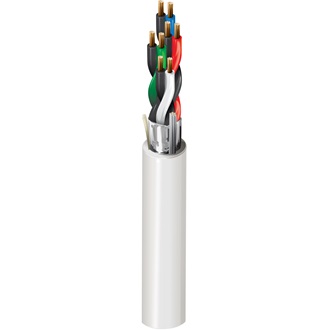

Product Number: 6543FE
Security & Sound, #22-4pr, BC, Shielded, CMP
Security & Sound Cable, Plenum-CMP, 4-22 AWG stranded bare copper pairs with Flamarrest® insulation, Beldfoil® shield and Flamarrest® jacket with ripcord
-
Availability:
Global
-
Global inventory:
Available
Specifications
Product Overview
|
Suitable Applications |
Security System, Intercom/PA, Audio/Speaker, Power-Limited Controls, Noisy Environment |
|---|
Construction Details
Conductor
| Element | No. of Elements | Size | Stranding | Material |
|---|---|---|---|---|
| Pair(s) | 4 | 22 | 7x30 | BC - Bare Copper |
Insulation
| Material | Nom. Thickness | Nom. Insulation Diameter | Color Code |
|---|---|---|---|
| PVC - Polyvinyl Chloride | 0.009 in (0.23 mm) | 0.047 in (1.2 mm) | Black & Red, Black & White, Black & Green, Black & Blue |
Outer Shield
| Shield Type | Material | Coverage | Drainwire Type |
|---|---|---|---|
| Tape | Bi-Laminate (Alum+Poly) | 100% | 24 AWG (7x32) TC |
Outer Jacket
| Material | Nom. Thickness | Nom. Diameter | Ripcord |
|---|---|---|---|
| PVC - Polyvinyl Chloride | 0.015 in (0.38 mm) | 0.238 in | Yes |
Electrical Characteristics
Electricals
| Nom. Conductor DCR | Nom. Capacitance Cond-to-Cond | Nom. Capacitance Cond-to-Other (Conds + Shield) | Max. Current |
|---|---|---|---|
| 17.5 Ohm/1000ft | 33 pF/ft (110 pF/m) | 59.4 pF/ft (195 pF/m) | 2 Amps per Conductor at 25ºC |
Voltage
| UL Voltage Rating |
|---|
| 300 V |
Mechanical Characteristics
Temperature
| UL Temperature | Operating |
|---|---|
| 75°C | 0°C To +75°C |
Bend Radius
| Stationary Min. | Installation Min. |
|---|---|
| 2.38 in (60.5 mm) | 2.38 in |
|
Max. Pull Tension |
78.3 lbs (35.5 kg) |
|---|---|
|
Bulk Cable Weight |
32 lbs/1000ft |
Standards and Compliance
|
Environmental Suitability |
Indoor |
|---|---|
|
Flammability / Reaction to Fire |
NFPA 262 (UL910), FT6, IEC 60332-1-2 |
|
CPR Compliance |
CPR Euroclass: Eca |
|
NEC / UL Compliance |
Article 800, CMP |
|
CEC / C(UL) Compliance |
CMP |
|
European Directive Compliance |
EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
|
UK Regulation Compliance |
UKCA Mark |
|
APAC Compliance |
China RoHS II (GB/T 26572-2011) |
|
Non-Plenum Number |
5543FE |
History
|
Update and Revision |
Revision Number: 0.321 Revision Date: 02-03-2025 |
|---|
Information
|
Update and Revision |
Revision Number: 0.321 Revision Date: 02-03-2025 |
|---|
Part Numbers
| Item # | Color | UPC | Footnote |
|---|---|---|---|
| 6543FE 8771000 | Natural | 612825178392 | C |
