Product Number: 1304A4

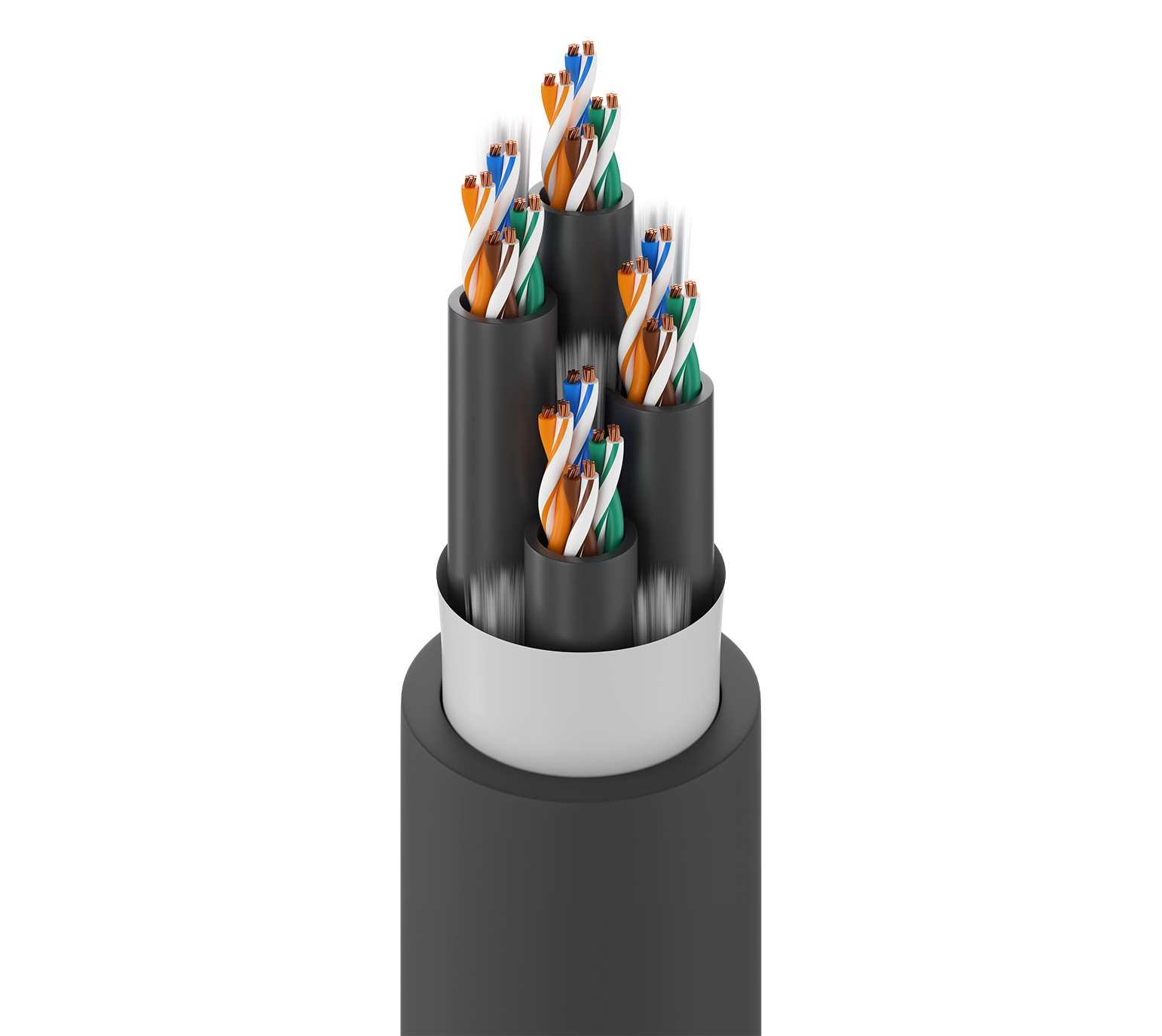

CatSnake® 4-Channel 4 Pr #24 Str BC, U/UTP, Flexible PVC Inner & Outer Jkts
Category 5e, 4 x 4 Pair Cables Bundled, Inner Cables: 4 pair 24 AWG (7x32) Bare Copper, U/UTP, BelFlex® Inner Jackets & Overall Belflex® Jacket
-
Availability:
-
Global inventory:
Specifications
Product Overview
Suitable Applications |
Field Deployable Cat 5e Patch, Digital Audio formats such as CobraNet, eSnake, & Ethersound, Live events or studio sound |
---|
Construction Details
Conductor
Element | No. of Elements | Size | Stranding | Material |
---|---|---|---|---|
Pair(s) | 16 | 24 AWG | 7x32 | BC - Bare Copper |
Insulation
Element | Material | Nom. Thickness | Nom. Insulation Diameter | Color Code |
---|---|---|---|---|
Pair(s) | PP - Polypropylene | 0.009 in (0.23 mm) | 0.043 in (1.1 mm) | White/Blue Stripe & Blue, White/Orange Stripe & Orange, White/Green Stripe & Green, White/Brown Stripe & Brown |
Inner Jacket
Material | Nom. Diameter |
---|---|
PVC - Polyvinyl Chloride | 0.25 in (6.4 mm) |
Table Notes |
Four Cat 5e cable each 4pr UTP; Inner Jacket Colors: Black #1, Black #2, Black #3, Black #4 |
---|
Outer Jacket
Material | Nom. Thickness | Nom. Diameter |
---|---|---|
PVC - Polyvinyl Chloride | 0.075 in (1.9 mm) | 0.757 in (19.2 mm) |
Overall Cable Diameter (Nominal) |
0.757 in (19.2 mm) |
---|
Electrical Characteristics
Electricals
Element | Max. Conductor DCR | Nom. Velocity of Prop. |
---|---|---|
Pair(s) | 90 Ohm/km (27 Ohm/1000ft) | 70% |
Voltage
Voltage Rating |
---|
(300 V) |
Mechanical Characteristics
Temperature
Operating |
---|
-30°C to +75°C |
Bend Radius
Stationary Min. | Installation Min. |
---|---|
7.6 in (190 mm) | 7.6 in (190 mm) |
Max. Pull Tension |
176 lbs (79.8 kg) |
---|---|
Bulk Cable Weight |
210 lbs/1000ft (310 kg/km) |
Standards and Compliance
Environmental Suitability |
Indoor/Outdoor, Indoor, Outdoor, Burial |
---|---|
European Directive Compliance |
EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
Product Notes
Notes |
Electrical values are expected performance based on cable testing and representative performance within a typical Belden system. RJ-45 and Neutrik EtherCon Compatible. Cable passes -40C cold bend.Operating temperatures are subject to length de-rating. |
---|
History
Update and Revision |
Revision Number: 0.288 Revision Date: 02-03-2025 |
---|
Information
Update and Revision |
Revision Number: 0.288 Revision Date: 02-03-2025 |
---|
Part Numbers
Item # | Color | Putup Type | Length | UPC |
---|---|---|---|---|
1304A4 B59500 | Matte Black | Reel | 500 ft | 612825111139 |
1304A4 B591000 | Matte Black | Reel | 1,000 ft | 612825111122 |
