70049LW

1 PAIR AES/EBU, 24AWG, ISTP, LSZH

DIGITAL AUDIO 1 PAIR AES/EBU, 24AWG/0.22mm², ISTP, LSZH

Request Quote

Specifications

Report An Error

Suitable Applications	1-pair 24AWG halogen-free single pair cable; For digital audio

AWG	Stranding	Material	Construction n x D	No. of Pairs
24	7x32	BC-OFHC - Oxygen-Free Bare Copper (High Conductivity)	7x0.20 mm	1

Conductor Count	2
Total Number of Pairs	1

Material	Nominal Diameter	Diameter +/- Tolerance
PE - Polyethylene (Foam)	1.70 mm	0.05 mm

Number	Color
Pair 1	Red & Black

Type	Material	Coverage [%]	Drainwire Material	Drainwire AWG	Drainwire Construction n x D	Drainwire Position
Tape	Bi-Laminate (Alum+Poly)	100%	TC - Tinned Copper	24	7x0.20 mm	Under shielding foil

Material	Nominal Diameter	Diameter +/- Tolerance
LSZH - Low Smoke Zero Halogen (Flame Retardant)	6.9 mm	0.3 mm

Description

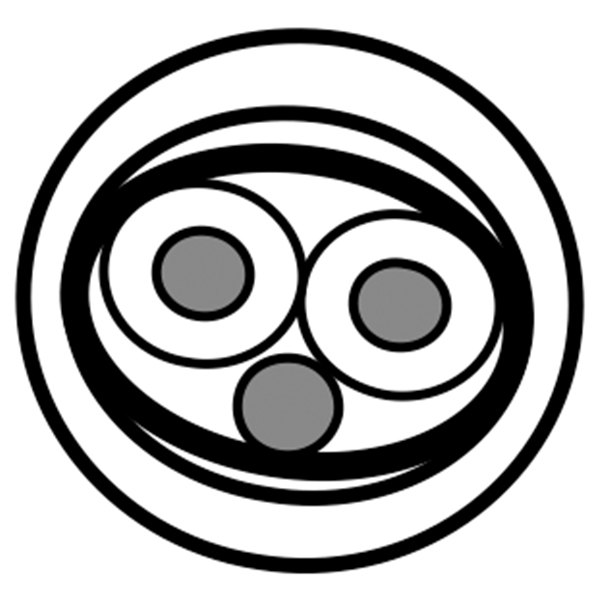

1 pair + drainwire stranded tinnend copper (AWG24)(7x0.20mm)

Nominal Conductor DCR
86 Ohm/km

Nom. Capacitance Conductor to Conductor
36 pF/m

Frequency [MHz]	Nominal Characteristic Impedance	Nominal Characteristic Tolerance
0.1 - 6	110 Ohm	15 Ohm

Nominal Velocity of Propagation (VP) [%]
76%

Other Temp Range	-30-+70 °C

Max. Pull Tension	70 N
Min. Bend Radius During Installation	70 mm
Min. Bend Radius During Operation	100 mm

CPR Euroclass	Cca-s1,d1,a1

Environmental Space	Indoor - Euroclass Cca

IEC Flammability	IEC 60332-1-2, IEC 60332-3-24
IEC 60754-1 - Halogen Amount	zero
IEC 60754-2 - Halogen Acid Gas Amount - Max. Conductivity	2.5 µS/mm
IEC 60754-2 - Halogen Acid Gas Amount - Min. pH	4.3

Update and Revision	Revision Number: 0.42 Revision Date: 02-15-2024
