Product Number: 8410
Microphone Cable, 1 Conductor 25 AWG, TC

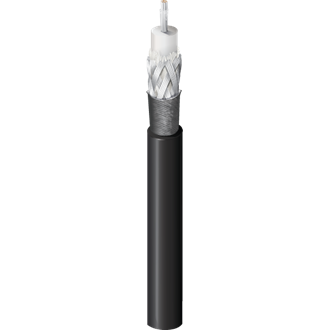

25 AWG stranded (7x33) composite copper conductor, EPDM rubber insulation, rayon braid + TC braid shield (80% coverage), cotton serve, cotton serve, EPDM rubber jacket.
-
Availability:
Global
-
Global inventory:
Available
Specifications
Product Overview
|
Suitable Applications |
Microphone, Musical Instrument |
|---|
Physical Characteristics (Overall)
Conductor
| AWG | Stranding | Material | Nominal Diameter | No. of Coax |
|---|---|---|---|---|
| 25 | Stranded | TC+TCCS - Tinned Copper (High Conductivity) + Tinned Copper Covered Steel (High Conductivity) | 0.021 in | 1 |
|
Conductor Count |
1 |
|---|
Insulation
| Material | Nominal Diameter | Nominal Wall Thickness |
|---|---|---|
| EPDM - Ethylene Propylene Diene Monomer | 0.154 in | 0.058 in |
Outer Shield
| Type | Material | Coverage [%] |
|---|---|---|
| Braid | Rayon® | 80% |
| Braid | Tinned Copper (TC) | 80% |
Outer Jacket
| Material | Nominal Diameter | Nominal Wall Thickness | Separator Material |
|---|---|---|---|
| EPDM - Ethylene Propylene Diene Monomer | 0.245 in | 0.024 in | Cotton Serve |
Electrical Characteristics
Conductor DCR
| Nominal Conductor DCR | Nominal Conductor DCR Conductor Resistance | Nominal Outer Shield DCR | Outer Conductor DCR |
|---|---|---|---|
| 45.1 Ohm/1000ft | 45.1 Ohm/1000ft | 5.8 Ohm/1000ft | 5.8 Ohm/1000ft |
Capacitance
| Nom. Capacitance Conductor to Shield |
|---|
| 33 pF/ft |
Impedance
| Nominal Characteristic Impedance |
|---|
| 52 Ohm |
Current
| Max. Recommended Current [A] |
|---|
| 1.9 Amps per Conductor at 25ºC |
Voltage
| Non-UL Voltage Rating |
|---|
| 3000 V DC |
Temperature Range
|
Non-UL Temp Rating |
60°C |
|---|---|
|
Operating Temperature Range |
-30°C To +60°C |
Mechanical Characteristics
|
Bulk Cable Weight |
37 lbs/1000ft |
|---|---|
|
Max. Pull Tension |
60 lbs |
|
Min. Bend Radius/Minor Axis |
2.5 in |
Applicable Environmental and Other Programs
|
Environmental Space |
Indoor (Not Riser or Plenum) |
|---|---|
|
EU Directive 2000/53/EC (ELV) |
Yes |
|
EU Directive 2003/11/EC (BFR) |
Yes |
|
EU Directive 2011/65/EU (RoHS 2) |
Yes |
|
EU Directive 2012/19/EU (WEEE) |
Yes |
|
EU Directive 2015/863/EU (RoHS 2 amendment) |
Yes |
|
EU Directive Compliance |
EU Directive 2003/11/EC (BFR) |
|
EU CE Mark |
Yes |
|
MII Order #39 (China RoHS) |
Yes |
Suitability
|
Suitability - Indoor |
Yes |
|---|
Plenum/Non-Plenum
|
Plenum (Y/N) |
No |
|---|
History
|
Update and Revision |
Revision Number: 0.365 Revision Date: 02-03-2025 |
|---|
Information
|
Update and Revision |
Revision Number: 0.365 Revision Date: 02-03-2025 |
|---|
Part Numbers
| Item # | Color | Put-Up Type | Length | UPC |
|---|---|---|---|---|
| 8410 010500 | Black | Reel | 500 ft | 612825206309 |
