BE46203

2 PAIR AES/EBU, 26AWG, ISTP, FLEX, LSZH, STAGE

...
2 PAIR AES/EBU, 26AWG/0.14mm², ISTP, FLEX, LSZH, STAGE
English
Request Quote
Share
Get Product Alerts

Specifications
Report An Error
Product Overview

Suitable Applications

Digital multi-modulation cable used in professional studios; For the transmission of analogue and digital audio signals; Designed to meet the requirements of the AES/EBU specification; The cable is very flexible and has a small outer diameter for use in applications where space is limited

Physical Characteristics (Overall)
Conductor
AWG Stranding Material Cross Section Construction n x D
26 7x34 TC - Tinned Copper 0.14 mm² 7x0.16 mm

Conductor Count

4

Total Number of Pairs

2

Insulation
Type Material Nominal Diameter Diameter +/- Tolerance
Insulation PE - Polyethylene (Foam) 1.1 mm 0.03 mm
Color Chart
Number Color
Pair 1 t/m 2 White & Blue
Inner Shield
Type Material Nominal Diameter Min. Coverage [%]
Spiral Serve / Screen Tinned Copper (TC) 2.40 mm 90%
Inner Jacket
Material Nominal Diameter Diameter +/- Tolerance
Nylon 2.8 mm 0.1 mm
Outer Shield
Type Material Nominal Diameter Min. Coverage [%]
Braid Tinned Copper (TC) 7 mm 90%
Outer Jacket
Material Nominal Diameter Diameter +/- Tolerance
LSZH - Low Smoke Zero Halogen (Flame Retardant) 8.15 mm 0.4 mm

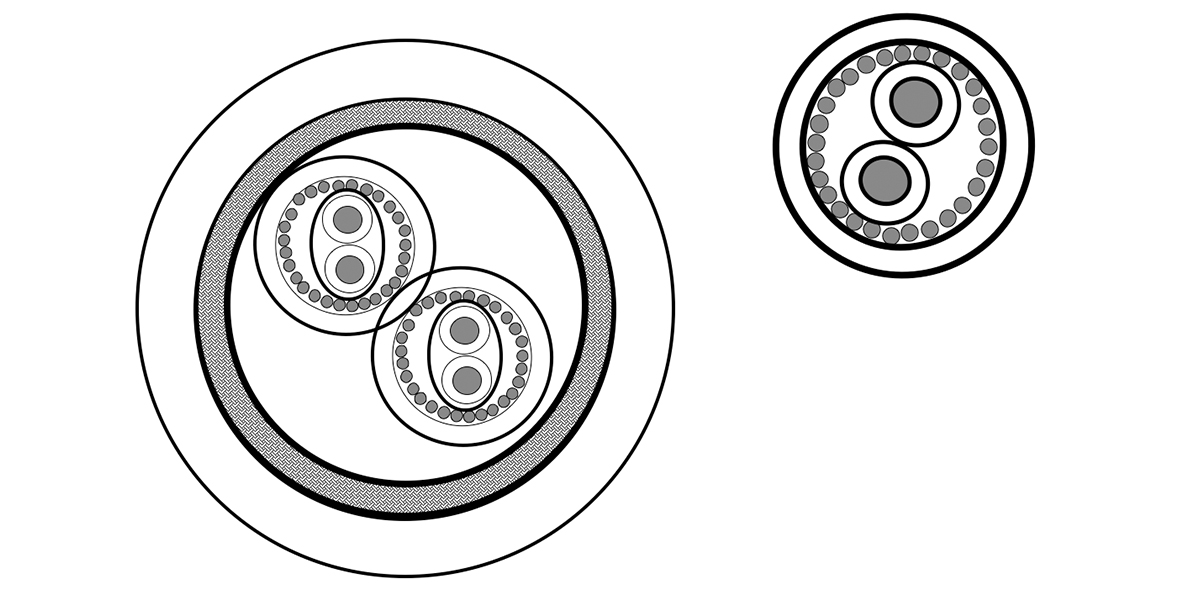

Construction and Dimensions
Cabling
Description
2 pairs covered with a non-woven separating foil
Electrical Characteristics
Conductor DCR
Max. Conductor DCR
130 Ohm/km
Capacitance
Nom. Capacitance Conductor to Conductor
50 pF/m
Impedance
Frequency [MHz] Nominal Characteristic Impedance Nominal Characteristic Tolerance
0.1 - 6 110 Ohm +/- 15 Ohm
High Frequency (Nominal/Typical)
Frequency [MHz] Nom. Insertion Loss
1 MHz 2.3 dB/100m
6 MHz 9.5 dB/100m
10 MHz 16 dB/100m
Delay
Nominal Velocity of Propagation (VP) [%]
60%
Temperature Range

Other Temp Range

-25 to +70 °C

Mechanical Characteristics

Min. Bend Radius During Installation

81.5 mm

Min. Bend Radius During Operation

122.2 mm

Applicable Environmental and Other Programs

Environmental Space

Indoor
History

Update and Revision

Revision Number: 0.161 Revision Date: 01-15-2024

Show All Specifications
Hide Specifications
Part Numbers
Item # Color Put-Up Type Length EAN
BE46203.01500 Black Reel 500 m 8719605171887
BE46203.00250 Purple Reel 250 m 8719605026767
BE46203.00500 Purple Reel 500 m 8719605026774
