Product Number: 79003FS

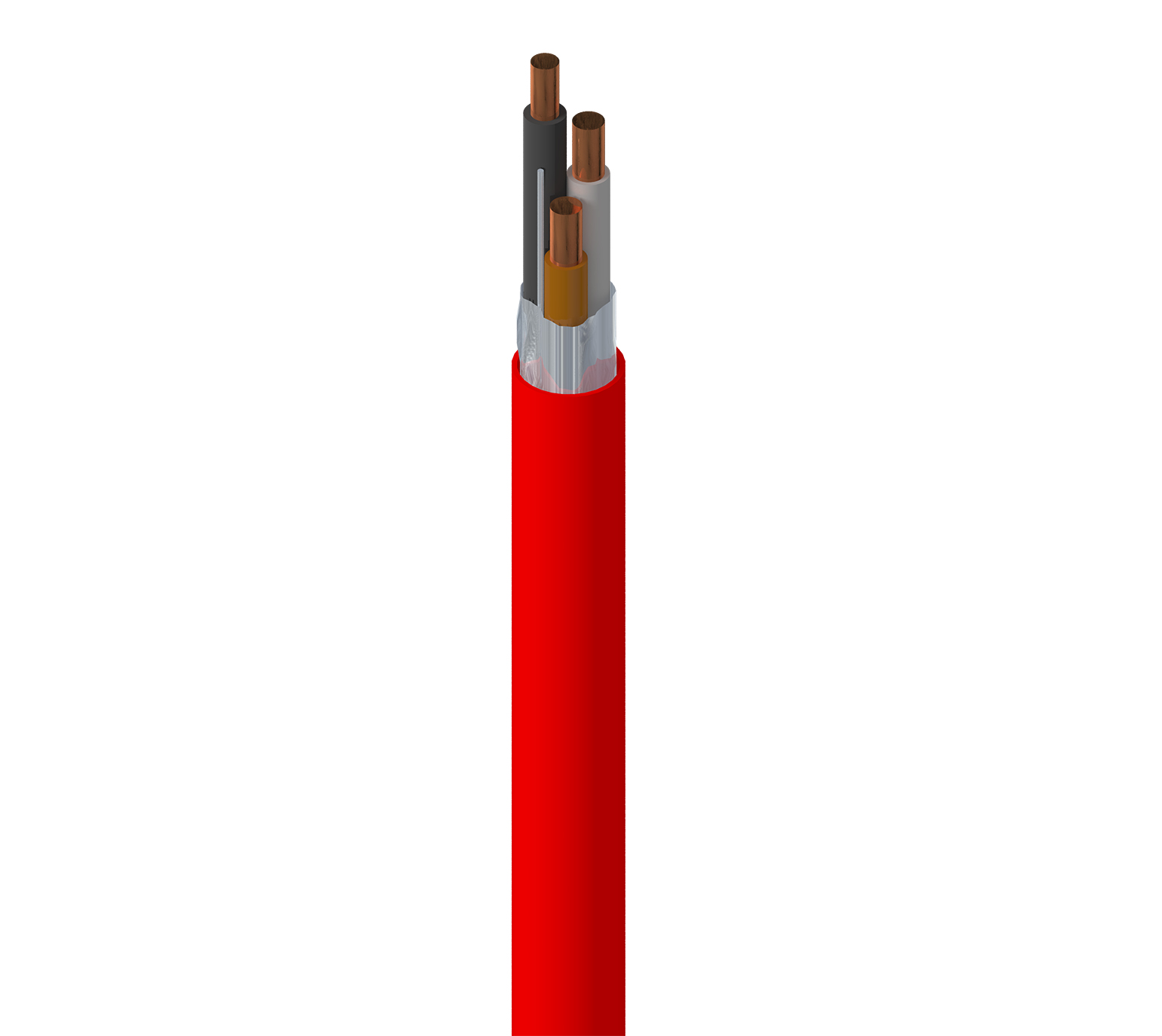

SAFE-T-Line® Red 3 x 1.5 mm2 LPCB
Safe-T-Line 3 x 1.5 mm2 Fire resistant LPCB approved Multi-conductor, BS 6387 CWZ, EN 50200 PH120, Shielded, Silicone Rubber insulation, Low Smoke Zero Halogen Jacket
-
Availability:
Global
-
Global inventory:
Available
Specifications
Product Overview
|
Suitable Applications |
Circuit integrity |
|---|
Physical Characteristics (Overall)
Conductor
| No. of Conductors |
|---|
|
Conductor Count |
3 |
|---|
Color Chart
| Number |
|---|
| Wire 1 |
| Wire 2 |
| Wire 3 |
Outer Shield
| Drainwire Material | Drainwire Diameter |
|---|---|
| TC - Tinned Copper | 0.8 mm |
|
Table Notes |
Tape bonded to sheath |
|---|
Electrical Characteristics
Voltage
| Voltage Rating [V] |
|---|
| 300/500 V |
Temperature Range
|
Installation Temperature Range |
0°C To +70°C |
|---|---|
|
Operating Temperature Range |
-40°C To +90°C |
Mechanical Characteristics
|
Min. Bend Radius During Operation |
6*D |
|---|
Standards
|
CENELEC Compliance |
EN 60228 |
|---|
Applicable Environmental and Other Programs
|
EU Directive 2000/53/EC (ELV) |
Yes |
|---|---|
|
EU Directive 2011/65/EU (RoHS 2) |
Yes |
Flammability, LS0H, Toxicity Testing
|
IEC Flammability |
IEC 60332-1-2, IEC 60332-3-24, IEC 60332-3-25, IEC 60331-2 |
|---|---|
|
Other Flammability |
EN50200 PH30, PH60,PH120. EN50200 Annex E30, BS6387:2013 CWZ |
|
IEC 60754-1 - Halogen Amount |
IEC 60754-1 |
|
IEC 61034-2 - Smoke Density Min. Transmittance |
60% |
Product Notes
|
Notes |
BS6387 CWZ: C- Fire @ 950°C - 180min, W - Fire & water @ 650°C - 15 + 15 min.,Z - Fire & mechanical shocks @ 950°C -15 min. |
|---|
History
|
Update and Revision |
Revision Number: 0.106 Revision Date: 02-03-2025 |
|---|
Information
|
Update and Revision |
Revision Number: 0.106 Revision Date: 02-03-2025 |
|---|
Part Numbers
| Item # | Color | Put-Up Type | Length | EAN |
|---|---|---|---|---|
| 79003FS.00100 | ||||
| 79003FS.01100 | ||||
| 79003FS.00500 | Red | Reel | 500 m | 8719605164292 |
| 79003FS.01500 | White | Reel | 500 m | 8719605164667 |
