Product Number: 4694RX5

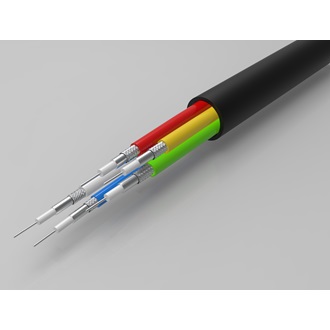

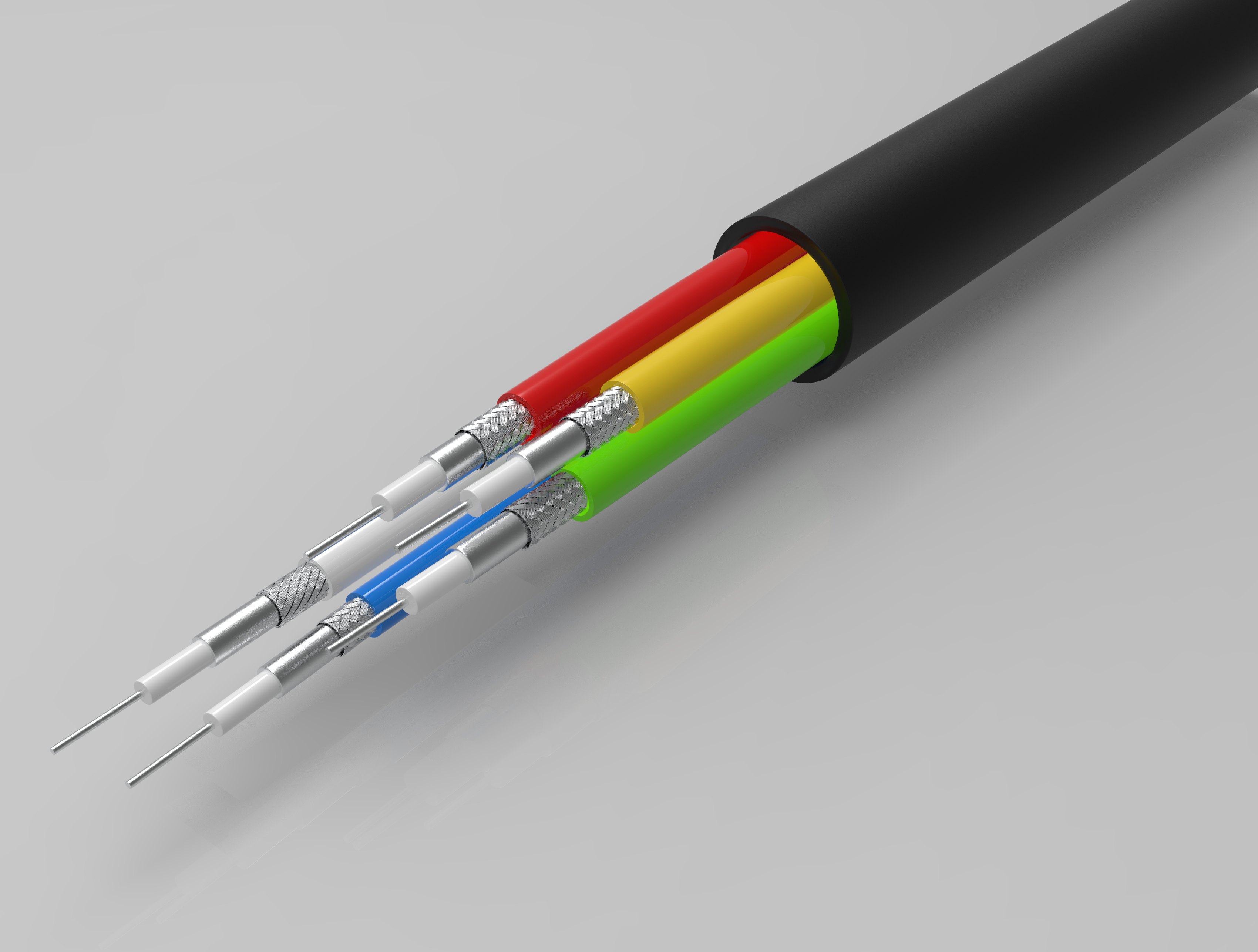

12 GHz 5 Coax, 4K UHD Precision Video Cable, RG-6 Type, 75 Ohm, 18 AWG Solid, CMR
12 GHz, 4K UHD Precision Video Cable, RG-6 Type, 75 Ohm 5 Coax 18 AWG solid 0.040" silver-plated copper conductor, gas-injected foamed high-density polyethylene insulation, Duofoil® bonded to the core + tinned copper braid shield (95% coverage), PVC inner and outer jackets
-
Availability:
Global
-
Global inventory:
Available
Specifications
Product Overview
|
Suitable Applications |
SMPTE 2082-1 12 Gb/s UHDTV, SMPTE 2081-1 6 Gb/s UHDTV, SMPTE 424M 3 Gb/s HD-SDI 1080p |
|---|
Construction Details
|
RG Type |
6 |
|---|---|
|
Series Type |
6 |
Conductor
| Size | Stranding | Nom. Diameter | Material |
|---|---|---|---|
| 18 | Solid | 0.040 in | SC - Silvered Copper |
Insulation
| Material | Nom. Insulation Diameter |
|---|---|
| PE - Polyethylene (Foam) | 0.180 in (4.57 mm) |
|
Table Notes |
Gas Injected |
|---|
Inner Shield
| Layer | Shield Type | Material | Material Trade Name | Coverage |
|---|---|---|---|---|
| 1 | Tape | Tri-Laminate (Alum+Poly+Alum) | Duofoil® | 100% |
| 2 | Braid | Tinned Copper (TC) | 95% |
Inner Jacket
| Material | Nom. Diameter |
|---|---|
| PVC - Polyvinyl Chloride | 0.274 in (6.96 mm) |
Outer Jacket
| Material | Nom. Diameter |
|---|---|
| PVC - Polyvinyl Chloride | 0.970 in |
Electrical Characteristics
Return Loss
| Frequency | Min. Return Loss |
|---|---|
| 5 MHz - 1600 MHz | 23 dB |
| 1600 MHz - 4500 MHz | 21 dB |
| 4500 MHz - 12000 MHz | 15 dB |
Attenuation
| Frequency | Nom. Attenuation |
|---|---|
| 1 MHz | 0.23 dB/100ft |
| 3.58 MHz | 0.44 dB/100ft |
| 5 MHz | 0.51 dB/100ft |
| 6 MHz | 0.56 dB/100ft |
| 7 MHz | 0.59 dB/100ft |
| 10 MHz | 0.70 dB/100ft |
| 12 MHz | 0.75 dB/100ft |
| 25 MHz | 1.04 dB/100ft |
| 55 MHz | 1.45 dB/100ft |
| 67.5 MHz | 1.58 dB/100ft |
| 71.5 MHz | 1.62 dB/100ft |
| 88.5 MHz | 1.78 dB/100ft |
| 100 MHz | 1.89 dB/100ft |
| 135 MHz | 2.10 dB/100ft |
| 143 MHz | 2.16 dB/100ft |
| 180 MHz | 2.44 dB/100ft |
| 270 MHz | 2.97 dB/100ft |
| 360 MHz | 3.45 dB/100ft |
| 540 MHz | 4.30 dB/100ft |
| 720 MHz | 5.00 dB/100ft |
| 750 MHz | 5.10 dB/100ft |
| 1000 MHz | 5.90 dB/100ft |
| 1500 MHz | 7.30 dB/100ft |
| 2000 MHz | 8.50 dB/100ft |
| 2250 MHz | 9.10 dB/100ft |
| 3000 MHz | 10.6 dB/100ft |
| 4500 MHz | 13.2 dB/100ft |
| 6000 MHz | 15.5 dB/100ft |
| 12000 MHz | 23.0 dB/100ft |
Electricals
| Nom. Conductor DCR | Nom. Capacitance Cond-to-Shield | Nom. Characteristic Impedance | Nom. Velocity of Prop. |
|---|---|---|---|
| 6.4 Ohm/1000ft (21 Ohm/km) | 15.9 pF/ft (52.2 pF/m) | 75 Ohm | 85% |
Voltage
| UL Voltage Rating |
|---|
| 300 V RMS |
|
Electrical Characteristics Notes |
Return Loss: Fixed bridge and termination |
|---|
Mechanical Characteristics
Temperature
| UL Temperature | Operating |
|---|---|
| 60°C | -20°C to +75°C |
|
Max. Pull Tension |
280 lbs (130 kg) |
|---|---|
|
Bulk Cable Weight |
366 lbs (166 kg) |
Standards and Compliance
|
Environmental Suitability |
Indoor, Outdoor - Black only, Aerial - Black only, When supported by messenger wire |
|---|---|
|
Flammability / Reaction to Fire |
UL1666 Vertical Shaft, FT4 |
|
NEC / UL Compliance |
CMR |
|
CEC / C(UL) Compliance |
CMG |
|
European Directive Compliance |
EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE), REACH: 2019-06-01 |
|
APAC Compliance |
China RoHS II (GB/T 26572-2011) |
Product Notes
|
Notes |
Print legend includes sequential footage marks. |
|---|
History
|
Update and Revision |
Revision Number: 0.281 Revision Date: 04-15-2025 |
|---|
Information
|
Update and Revision |
Revision Number: 0.281 Revision Date: 04-15-2025 |
|---|
Part Numbers
| Item # | Color | Putup Type | Length |
|---|---|---|---|
| 4694RX5 B59CUT | Black | Reel | |
| 4694RX5 B591000 | Black | Reel | 1,000 ft |
