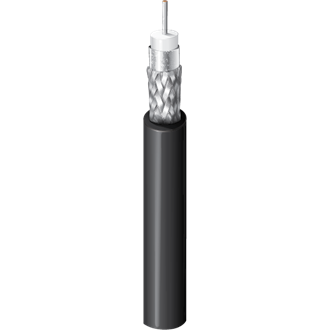

12 GHz Coax, 4K UHD Precision Video Coax, RG-59 Mini, 75 Ohm, 23 AWG Solid SC, LSZH Jkt
Suitable Applications |
SMPTE 2082-1 12 Gb/s UHDTV, SMPTE 2081-1 6 Gb/s UHDTV, SMPTE 424M 3 Gb/s HD-SDI 1080P |
---|
No. of Elements | Size | Stranding | Nom. Diameter | Material |
---|---|---|---|---|
1 | 23 AWG | Solid | 0.023 in | SC - Silvered Copper |
Material | Nom. Insulation Diameter | Color Code |
---|---|---|
PE - Polyethylene (Foam) | 0.102 in (2.59 mm) | White |
Table Notes |
Gas Injected |
---|
Layer | Outer Shield Type | Material | Material Trade Name | Coverage |
---|---|---|---|---|
1 | Tape | Tri-Laminate (Alum+Poly+Alum) | Duofoil® | 100% |
2 | Braid | Tinned Copper (TC) | 95% |
Material | Nom. Diameter |
---|---|
LSZH - Low Smoke Zero Halogen (Flame Retardant) | 0.159 in (4.04 mm) |
Overall Cable Diameter (Nominal) |
0.159 in (4.04 mm) |
---|
Frequency | Min. Return Loss |
---|---|
5 MHz - 1600 MHz | 23 dB |
1600 MHz - 4500 MHz | 21 dB |
4500 MHz - 12000 MHz | 15 dB |
Frequency | Nom. Attenuation |
---|---|
1 MHz | 0.39 dB/100ft |
3.58 MHz | 0.78 dB/100ft |
5 MHz | 0.92 dB/100ft |
6 MHz | 1 dB/100ft |
7 MHz | 1.08 dB/100ft |
10 MHz | 1.2 dB/100ft |
12 MHz | 1.3 dB/100ft |
25 MHz | 1.8 dB/100ft |
55 MHz | 2.6 dB/100ft |
67.5 MHz | 2.83 dB/100ft |
71.5 MHz | 2.93 dB/100ft |
88.5 MHz | 3.22 dB/100ft |
100 MHz | 3.39 dB/100ft |
135 MHz | 3.84 dB/100ft |
143 MHz | 4.00 dB/100ft |
180 MHz | 4.41 dB/100ft |
270 MHz | 5.44 dB/100ft |
360 MHz | 6.34 dB/100ft |
540 MHz | 7.85 dB/100ft |
720 MHz | 9.09 dB/100ft |
750 MHz | 9.28 dB/100ft |
1000 MHz | 10.8 dB/100ft |
1500 MHz | 13.2 dB/100ft |
2000 MHz | 15.3 dB/100ft |
2250 MHz | 16.3 dB/100ft |
3000 MHz | 19.0 dB/100ft |
4500 MHz | 23.6 dB/100ft |
6000 MHz | 27.7 dB/100ft |
12000 MHz | 41.2 dB/100ft |
Nom. Conductor DCR | Nom. Outer Shield DCR | Nom. Capacitance Cond-to-Shield | Nom. Characteristic Impedance | Nom. Velocity of Prop. |
---|---|---|---|---|
19.7 Ohm/1000ft (64.6 Ohm/km) | 3.9 Ohm/1000ft (13 Ohm/km) | 16.3 pF/ft (53.5 pF/m) | 75 Ohm | 82% |
Voltage Rating |
---|
300 V RMS |
Electrical Characteristics Notes |
Return Loss: Fixed bridge and termination |
---|
UL Temperature | Operating |
---|---|
75°C | -30°C To +75°C |
Stationary Min. | Installation Min. |
---|---|
1.59 in (40.4 mm) | 1.59 in (40.4 mm) |
Max. Pull Tension |
40 lbs (18 kg) |
---|---|
Bulk Cable Weight |
17 lbs/1000ft |
Environmental Suitability |
Indoor - Euroclass Dca, Indoor, Aerial - Black only, When supported by messenger wire |
---|---|
CPR Compliance |
CPR Euroclass: Dca-s1,d1,a1; CPR UKCA Class: Dca-s1,d1,a1 |
European Directive Compliance |
EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
UK Regulation Compliance |
UKCA Mark |
APAC Compliance |
China RoHS II (GB/T 26572-2011) |
Notes |
Print legend includes sequential footage marks. |
---|
Update and Revision |
Revision Number: 0.198 Revision Date: 04-29-2024 |
---|
Item # | Color | Putup Type | Length | UPC |
---|---|---|---|---|
4855ANH G753280 | Aqua | Reel | 100 m | 612825443452 |
4855ANH G751000 | Aqua | Reel | 305 m | 612825443353 |
4855ANH G751640 | Aqua | Reel | 500 m | 612825443407 |
4855ANH 0103280 | Black | Reel | 100 m | 612825443490 |
4855ANH 0101000 | Black | Reel | 305 m | 612825443391 |
4855ANH 0101640 | Black | Reel | 500 m | 612825443445 |
4855ANH 0063280 | Blue | Reel | 100 m | 612825443476 |
4855ANH 0061000 | Blue | Reel | 305 m | 612825443377 |
4855ANH 0061640 | Blue | Reel | 500 m | 612825443421 |
4855ANH N3U3280 | Green | Reel | 100 m | 612825443469 |
4855ANH N3U1000 | Green | Reel | 305 m | 612825443360 |
4855ANH N3U1640 | Green | Reel | 500 m | 612825443414 |
4855ANH 0071000 | Purple | Reel | 305 m | 612825443384 |
4855ANH 0071640 | Purple | Reel | 500 m | 612825443438 |
