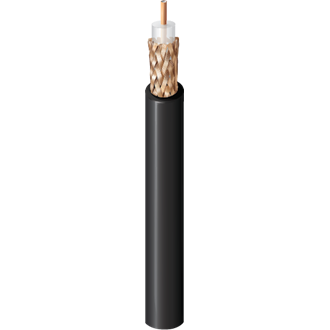

Product Number: 8241
75 Ohm Analog Video Coax, RG-59, 23 AWG Solid BCCS, 95% BC Braid, PVC Jkt, CM
75 Ohm Analog Video Coax, RG-59, 23 AWG Solid Bare Copper Covered Steel Conductor , PE Insulation, 95% Bare Copper Braid Shield, PVC Jacket, CM
-
Availability:
Global
-
Global inventory:
Available
Specifications
Product Overview
|
Suitable Applications |
Standard analog video |
|---|
Construction Details
|
RG Type |
59 |
|---|
Conductor
| Size | Stranding | Nom. Diameter | Material |
|---|---|---|---|
| 23 AWG | Solid | 0.023 in | BCCS - Bare Copper Covered Steel |
Insulation
| Material | Nom. Insulation Diameter | Color Code |
|---|---|---|
| PE - Polyethylene | 0.146 in (3.71 mm) | White |
Outer Shield
| Outer Shield Type | Material | Coverage |
|---|---|---|
| Braid | Bare Copper (BC) | 95% |
Outer Jacket
| Material | Nom. Diameter |
|---|---|
| PVC - Polyvinyl Chloride | 0.240 in (6.10 mm) |
|
Overall Cable Diameter (Nominal) |
0.240 in (6.10 mm) |
|---|
Electrical Characteristics
Attenuation
| Nom. Attenuation |
|---|
| [delete] |
| [delete] |
| [delete] |
| [delete] |
| [delete] |
| [delete] |
| [delete] |
| [delete] |
| [delete] |
Power Rating
| Frequency | Max. Power Rating |
|---|---|
| 50 MHz | 470 W |
| 100 MHz | 310 W |
| 300 MHz | 160 W |
| 500 MHz | 115 W |
| 1,000 MHz | 76 W |
Electricals
| Nom. Conductor DCR | Nom. Outer Shield DCR | Nom. Capacitance Cond-to-Shield | Nom. Characteristic Impedance | Nom. Velocity of Prop. |
|---|---|---|---|---|
| 49 Ohm/1000ft | 2.6 Ohm/1000ft (8.5 Ohm/km) | 20.4 pF/ft (66.9 pF/m) | 75 Ohm | 66% |
Voltage
| UL Voltage Rating | Voltage Rating |
|---|---|
| 300 V (CM), 30 V (UL AWM 1354) | 1700 V |
Mechanical Characteristics
Temperature
| UL Temperature | Operating |
|---|---|
| 75°C | -30°C to +75°C |
Bend Radius
| Installation Min. |
|---|
| 2.4 in (61 mm) |
|
Max. Pull Tension |
63 lbs (29 kg) |
|---|---|
|
Bulk Cable Weight |
37 lbs/1000ft |
Standards and Compliance
|
Environmental Suitability |
Indoor/Outdoor, Indoor, Outdoor - Black only, Aerial - Black only, When supported by messenger wire |
|---|---|
|
Sustainability |
CA Prop 65 |
|
Flammability / Reaction to Fire |
UL1685 UL Loading |
|
CPR Compliance |
CPR Euroclass: Eca |
|
NEC / UL Compliance |
CM |
|
AWM Compliance |
AWM 1354 |
|
CEC / C(UL) Compliance |
CM |
|
European Directive Compliance |
EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
|
UK Regulation Compliance |
UKCA Mark |
|
APAC Compliance |
China RoHS II (GB/T 26572-2011) |
|
Plenum Number |
88241, 82241 |
History
|
Update and Revision |
Revision Number: 0.498 Revision Date: 02-03-2025 |
|---|
Information
|
Update and Revision |
Revision Number: 0.498 Revision Date: 02-03-2025 |
|---|
Part Numbers
| Item # | Color | Putup Type | Length | UPC | Footnote |
|---|---|---|---|---|---|
| 8241 010100 | Black | Reel | 100 ft | 612825358695 | |
| 8241 010500 | Black | Reel | 500 ft | 612825355717 | C |
| 8241 010U500 | Black | UnReel | 500 ft | 612825355977 | |
| 8241 0101000 | Black | Reel | 1,000 ft | 612825356011 | C |
