88241

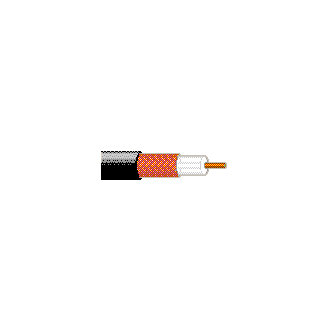

Analog Video, RG59, #23 Solid BCCS, 95% BC Braid, FEP Jacket, CMP

...
23 AWG Solid .023" bare copper-covered steel conductor, plenum, FEP insulation, bare copper braid shield (95% coverage), FEP jacket.
English
Request Quote
Share
Get Product Alerts

Specifications
Report An Error
Product Overview

Suitable Applications

Standard analog video

Construction Details

RG Type

59

Conductor
No. of Elements Size Stranding Nom. Diameter Material
1 23 AWG Solid 0.023 in BCCS - Bare Copper Covered Steel
Insulation
Material Nom. Insulation Diameter Color Code
FEP - Fluorinated Ethylene Propylene 0.132 in (3.35 mm) Clear
Outer Shield
Outer Shield Type Material Coverage
Braid Bare Copper (BC) 95%
Outer Jacket
Material Nom. Diameter
FEP - Fluorinated Ethylene Propylene 0.19 in (4.8 mm)

Overall Cable Diameter (Nominal)

0.19 in (4.8 mm)

Electrical Characteristics
Attenuation
Frequency Nom. Attenuation
1 MHz 0.5 dB/100ft
10 MHz 1 dB/100ft
50 MHz 2.3 dB/100ft
100 MHz 3.3 dB/100ft
200 MHz 5.2 dB/100ft
400 MHz 8.4 dB/100ft
700 MHz 11.6 dB/100ft
900 MHz 13.8 dB/100ft
1000 MHz 14.8 dB/100ft
Electricals
Nom. Conductor DCR Nom. Outer Shield DCR Nom. Capacitance Cond-to-Shield Nom. Characteristic Impedance Nom. Velocity of Prop.
49 Ohm/1000ft (160 Ohm/km) 2.6 Ohm/1000ft (8.5 Ohm/km) 19.5 pF/ft (64.0 pF/m) 75 Ohm 70%
Voltage
UL Voltage Rating Voltage Rating
300 V RMS 1700 V RMS
Mechanical Characteristics
Temperature
Operating
-70°C To +200°C
Bend Radius
Stationary Min. Installation Min.
2.5 in (64 mm) 2.5 in (64 mm)

Max. Pull Tension

70 lbs (32 kg)

Bulk Cable Weight

37 lbs/1000ft

Standards and Compliance

Environmental Suitability

Indoor/Outdoor, Indoor, Outdoor, Burial

Flammability / Reaction to Fire

NFPA 262, FT6, IEC 60332-1-2

CPR Compliance

CPR Euroclass: Eca

NEC / UL Compliance

Article 800, CMP

CEC / C(UL) Compliance

CMP

European Directive Compliance

EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)

UK Regulation Compliance

UKCA Mark

APAC Compliance

China RoHS II (GB/T 26572-2011)

Non-Plenum Number

8241

Product Notes

Notes

PF_88241 1)# Elements@Conductor1:-In Stibo it was Blank and now changed to 1. 2)Size@Conductor1 :-In Stibo it was 23 now changed to 23AWG. 3)Color@Color Chart1 01 :- In stibo it was Blank now Changed to Clear. 4)Coverage@OuterShield1 1 - in stibo it was 95% Now changed to 97%. 5)Cable Diameter (Nominal)- In Stibo it was Blank Now Changed to 0.19 in. 6)Bulk Cable Weight - In stibo it was 36 lbs/1000 ft Now changed to 37 lbs/1000 ft.

History

Update and Revision

Revision Number: 0.460 Revision Date: 04-29-2024

Show All Specifications
Hide Specifications
Part Numbers
Item # Color Putup Type Length UPC Footnote
88241 010500 Black Reel 500 ft 612825216957 C
88241 0101000 Black Reel 1,000 ft 612825216933 C
