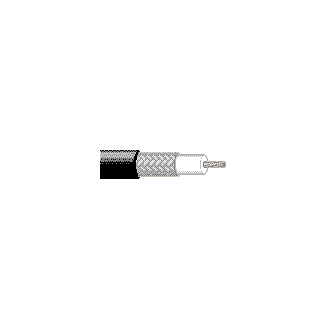

9221

Analog Video, #30 Str TC, 90% TC Braid, PVC Jacket

...
30 AWG stranded (7x38) .012" tinned copper conductor, foam HDPE insulation, tinned copper braid shield (90% coverage), PVC jacket.
English
Request Quote
Share
Get Product Alerts

Specifications
Report An Error
Product Overview

Suitable Applications

Analog video, Composite Video, Video Distribution

Construction Details
Conductor
No. of Elements Size Stranding Nom. Diameter Material
1 30 AWG 7x38 0.012 in TC - Tinned Copper
Insulation
Material Nom. Insulation Diameter Color Code Notes
PE - Polyethylene (Foam) 0.058 in (1.5 mm) White HDPE
Outer Shield
Outer Shield Type Material Coverage
Braid Tinned Copper (TC) 90%
Outer Jacket
Material Nom. Diameter
PVC - Polyvinyl Chloride 0.097 in (2.5 mm)

Overall Cable Diameter (Nominal)

0.097 in (2.5 mm)

Electrical Characteristics
Attenuation
Frequency Nom. Attenuation
1 MHz 0.7 dB/100ft
3.6 MHz 1.3 dB/100ft
5 MHz 1.6 dB/100ft
7 MHz 1.9 dB/100ft
9 MHz 2.1 dB/100ft
10 MHz 2.2 dB/100ft
50 MHz 5.1 dB/100ft
70 MHz 6.1 dB/100ft
100 MHz 7.3 dB/100ft
200 MHz 10.5 dB/100ft
400 MHz 15.5 dB/100ft
700 MHz 21.5 dB/100ft
900 MHz 24.8 dB/100ft
1000 MHz 26.6 dB/100ft
Electricals
Nom. Conductor DCR Nom. Outer Shield DCR Nom. Capacitance Cond-to-Shield Nom. Characteristic Impedance Nom. Velocity of Prop.
100 Ohm/1000ft (330 Ohm/km) 11.7 Ohm/1000ft (38.4 Ohm/km) 17.3 pF/ft (56.8 pF/m) 75 Ohm 78%
Voltage
UL Voltage Rating
30 V RMS
Mechanical Characteristics
Temperature
UL Temperature Operating
60°C -30°C To +75°C
Bend Radius
Stationary Min. Installation Min.
0.25 in (6.4 mm) 0.25 in (6.4 mm)

Max. Pull Tension

65.4 lbs (29.7 kg)

Bulk Cable Weight

6 lbs/1000ft

Standards and Compliance

Environmental Suitability

Indoor/Outdoor, Indoor, Outdoor

Flammability / Reaction to Fire

IEC 60332-1-2

CPR Compliance

CPR Euroclass: Eca

AWM Compliance

AWM 1375 (30 V 60°C)

European Directive Compliance

EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)

UK Regulation Compliance

UKCA Mark

APAC Compliance

China RoHS II (GB/T 26572-2011)

Product Notes

Notes

(1)RG Type :-In Stibo it was Ultra Miniature 59 But in BPCS it is not there. (2)# Elements@Conductor1:-In Stibo it was Blank and now changed to 1. (3)Size@Conductor1 :-In Stibo it was 30 now changed to 30AWG (4)Color@Color Chart1 01 :- In stibo it was Blank now Changed to White (5)Coverage@OuterShield1 2 - in stibo it was 90% Now changed to 88% (6)Cable Diameter (Nominal)- In Stibo it was Blank Now Changed to 0.097 in

History

Update and Revision

Revision Number: 0.436 Revision Date: 04-29-2024

Show All Specifications
Hide Specifications
Part Numbers
Item # Color Putup Type Length UPC
9221 010100 Black Reel 100 ft 612825358848
9221 010500 Black Reel 500 ft 612825358152
9221 010U500 Black UnReel 500 ft 612825358862
