Product Number: YE01804

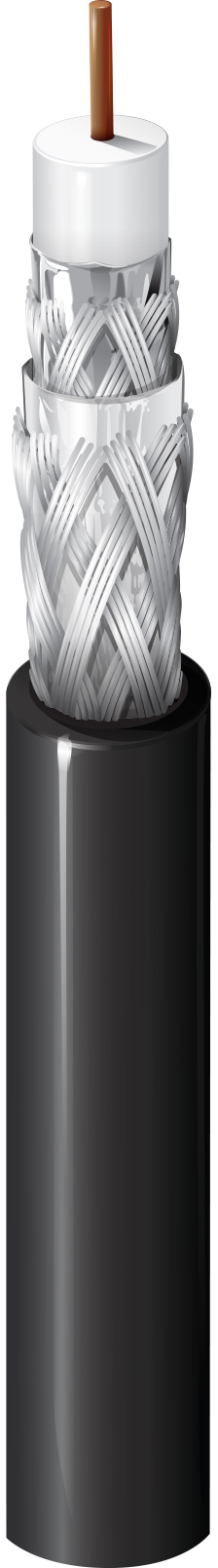

YE01804 - 75 Ohm Head-End Coax, Mini RG-59, 23 AWG Solid BC, Quad-Shield, 95% / 90% TC Braid, PVC Jkt
Head-End Coax, 75 Ohm, Mini RG-59, 23 AWG Solid Bare Copper Conductor, PE Insulation, Quad-Shield + 95% / 90% Tinned Copper Braid Shield, PVC Jacket
-
Availability:
EMEA | Asia Pacific
-
Global inventory:
Available
Specifications
Product Overview
|
Suitable Applications |
Mini RG59 tri shield coaxial cable used where immuntiy to conducted disturbances is required, but space is limited; Coaxial cable used in cable broadBand communication networks designed according European Standard EN 50117-1; Operating frequencies between 5 and 3000 MHz |
|---|
Construction Details
|
RG Type |
Mini 59 |
|---|
Conductor
| No. of Elements | Size | Stranding | Nom. Diameter | Material |
|---|---|---|---|---|
| 1 | 23 AWG | Solid | 0.58 mm | BC - Bare Copper |
Insulation
| Material | Nom. Insulation Diameter |
|---|---|
| PE - Polyethylene (Foam) | 2.59 mm (0.102 in) |
Outer Shield
| Layer | Outer Shield Type | Material | Coverage |
|---|---|---|---|
| 1 | Tape | Tri-Laminate (Alum+Poly+Alum) | 100% |
| 2 | Braid | Tinned Copper (TC) | 95% |
| 3 | Tape | Tri-Laminate (Alum+Poly+Alum) | 100% |
| 4 | Braid | Tinned Copper (TC) | 90% |
Outer Jacket
| Material | Nom. Diameter |
|---|---|
| PVC - Polyvinyl Chloride | 4.7 mm |
Electrical Characteristics
|
Regularity of Impedance |
Min. 40 dB |
|---|
Return Loss
| Frequency | Min. Return Loss |
|---|---|
| 5 - 30 MHz | 23 dB |
| 30 - 850 MHz | 23 dB |
| 850 - 3000 MHz | 21 dB |
|
Table Notes |
In each frequency band, 3 peak values up to 4 dB lower are allowed |
|---|
Attenuation
| Frequency | Nom. Attenuation |
|---|---|
| 1 MHz | 1.7 dB/100m |
| 3.6 MHz | 2.6 dB/100m |
| 10 MHz | 3.9 dB/100m |
| 71.5 MHz | 10 dB/100m |
| 135 MHz | 12.5 dB/100m |
| 270 MHz | 17.7 dB/100m |
| 540 MHz | 25.3 dB/100m |
| 720 MHz | 31.1 dB/100m |
| 750 MHz | 31.5 dB/100m |
| 1000 MHz | 34.4 dB/100m |
| 1500 MHz | 42.7 dB/100m |
| 2000 MHz | 52 dB/100m |
| 2250 MHz | 52.5 dB/100m |
| 3000 MHz | 60.7 dB/100m |
|
Table Notes |
Max. attenuation 10% higher |
|---|
Electricals
| Max. Conductor DCR | Nom. Outer Shield DCR | Nom. Capacitance Cond-to-Shield | Nom. Characteristic Impedance | Nom. Velocity of Prop. |
|---|---|---|---|---|
| 66 Ohm/km (20 Ohm/1000ft) | 6.5 Ohm/km (2.0 Ohm/1000ft) | 53 pF/m (16 pF/ft) | 75 Ohm | 83% |
Transfer Impedance
| Frequency | Max. Transfer Impedance |
|---|---|
| 5-30 MHz | Max. 0.9 mOhm/m |
Screening
| Frequency | Min. Screening Attenuation |
|---|---|
| 30 - 1000 MHz | 110 dB |
| 1000 - 2000 MHz | 95 dB |
| 2000 - 3000 MHz | 85 dB |
|
Screening Class |
A++ |
|---|
Mechanical Characteristics
Temperature
| Operating | Installation | Storage |
|---|---|---|
| -40°C To +70°C | -5°C To +50°C | -40°C To +70°C |
Bend Radius
| Stationary Min. |
|---|
| 47 mm (1.9 in) |
|
Max. Pull Tension |
160 N (36 lbf) |
|---|---|
|
Bulk Cable Weight |
42 kg/km |
Standards and Compliance
|
Environmental Suitability |
Indoor - Euroclass Eca |
|---|---|
|
Flammability / Reaction to Fire |
IEC 60332-1-2 |
|
CPR Compliance |
CPR Euroclass: Eca |
|
CENELEC Compliance |
EN 50117-1, EN 50117-9-2, EN 50290-2-20 |
|
UK Regulation Compliance |
UKCA Mark |
History
|
Update and Revision |
Revision Number: 0.157 Revision Date: 02-03-2025 |
|---|
Information
|
Update and Revision |
Revision Number: 0.157 Revision Date: 02-03-2025 |
|---|
Part Numbers
| Item # | Color | Putup Type | Length | EAN |
|---|---|---|---|---|
| YE01804.10500 | Black | Reel | 500 m | 8719605113481 |
| YE01804.06500 | Blue | Reel | 500 m | 8719605113443 |
| YE01804.00500 | Green | Reel | 500 m | 8719605113399 |
| YE01804.03500 | Orange | Reel | 500 m | 8719605113429 |
