Product Number: H500C00

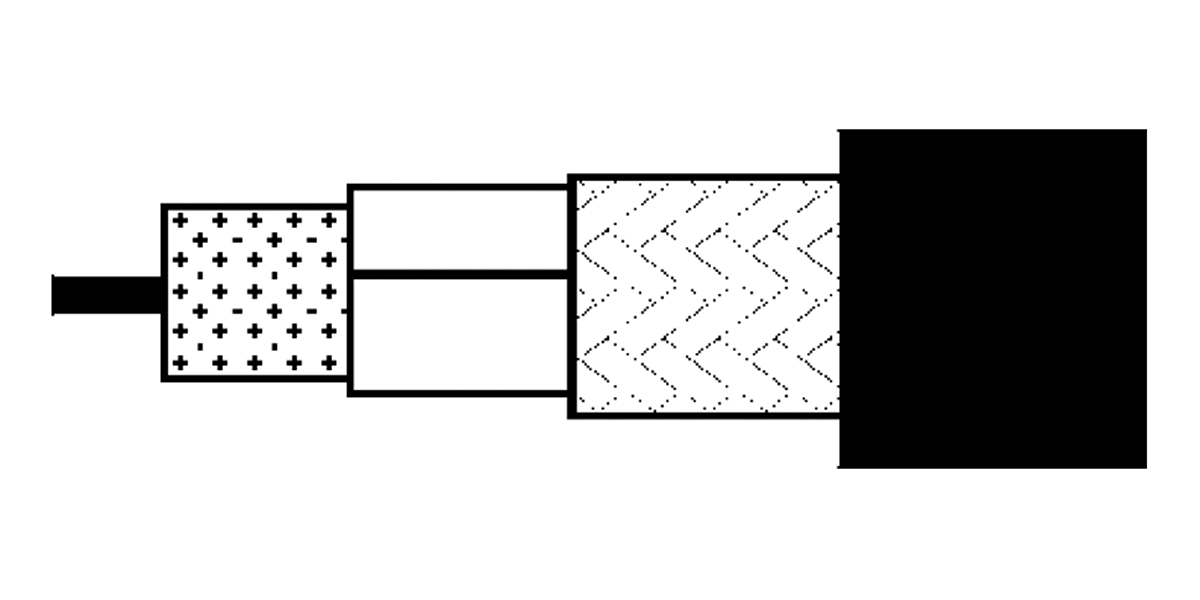

H500C00 - 50 Ohm Wireless Transmission Coax, H500, 11 AWG Solid BC, CU-Foil + 50% BC Braid, PE Jkt
50 Ohm Wireless Transmission Coax, H1000, 11 AWG Solid Bare Copper Conductor, PE Insulation, Copper foil + 50% Bare Copper Braid Shield, PE Jacket
-
Availability:
EMEA | Asia Pacific
-
Global inventory:
Available
Specifications
Product Overview
|
Suitable Applications |
Point-to-point and point-to-multipoint wireless antenna communication; Wireless microphones, Two-Way Radios, Amateur (Ham) Radio, Low Power FM, GPS, RFID (Radio Frequency Identification) |
|---|
Construction Details
|
RG Type |
58 |
|---|
Conductor
| No. of Elements | Size | Stranding | Nom. Diameter | Material |
|---|---|---|---|---|
| 1 | 11 AWG | Solid | 2.5 mm | BC - Bare Copper |
Insulation
| Element | Material | Nom. Insulation Diameter |
|---|---|---|
| Insulated Conductor | PE - Polyethylene (Foam) | 7 mm (0.28 in) |
|
Table Notes |
Centricity min. 85% |
|---|
Outer Shield
| Layer | Outer Shield Type | Material | Coverage |
|---|---|---|---|
| 1 | Tape | Bi-Laminate (Bare Copper+Poly) | 100% |
| 2 | Braid | Bare Copper (BC) | 50% |
Outer Jacket
| Material | Nom. Diameter |
|---|---|
| PE - Polyethylene | 9.8 mm |
|
Table Notes |
According to EN 50290-2-20 |
|---|
Electrical Characteristics
|
Regularity of Impedance |
Min. 46 dB |
|---|
Attenuation
| Frequency | Nom. Attenuation |
|---|---|
| 5 MHz | 0.9 dB/100m |
| 50 MHz | 2.9 dB/100m |
| 100 MHz | 4.1 dB/100m |
| 200 MHz | 6 dB/100m |
| 400 MHz | 8.7 dB/100m |
| 600 MHz | 10.9 dB/100m |
| 800 MHz | 12.9 dB/100m |
| 1000 MHz | 14.6 dB/100m |
| 1350 MHz | 17.4 dB/100m |
| 1750 MHz | 20.3 dB/100m |
| 2150 MHz | 23 dB/100m |
| 2400 MHz | 24.6 dB/100m |
| 5000 MHz | 38.9 dB/100m |
| 10000 MHz | 61.7 dB/100m |
|
Table Notes |
Max. attenuation 10% higher |
|---|
Electricals
| Max. Conductor DCR | Nom. Outer Shield DCR | Nom. Capacitance Cond-to-Shield | Nom. Characteristic Impedance | Nom. Velocity of Prop. |
|---|---|---|---|---|
| 3.8 Ohm/km (1.2 Ohm/1000ft) | 11.5 Ohm/km (3.51 Ohm/1000ft) | 82 pF/m (25 pF/ft) | 50 Ohm | 81% |
Screening
| Frequency | Min. Screening Attenuation |
|---|---|
| 30 - 1000 MHz | 90 dB |
Mechanical Characteristics
Temperature
| Operating | Installation | Storage |
|---|---|---|
| -40°C To +70°C | -5°C To +50°C | -40°C To +70°C |
Bend Radius
| Stationary Min. |
|---|
| 100 mm (3.9 in) |
|
Bulk Cable Weight |
107 kg/km |
|---|
Standards and Compliance
|
Environmental Suitability |
Outdoor |
|---|---|
|
ISO/IEC Compliance |
IEC 61196 |
|
European Directive Compliance |
EU CE Mark |
History
|
Update and Revision |
Revision Number: 0.205 Revision Date: 02-03-2025 |
|---|
Information
|
Update and Revision |
Revision Number: 0.205 Revision Date: 02-03-2025 |
|---|
Part Numbers
| Item # | Color | Putup Type | Length | EAN |
|---|---|---|---|---|
| H500C00.00100 | Black | Reel | 100 m | 8719605088062 |
| H500C00.00500 | Black | Reel | 500 m | 8719605088093 |
