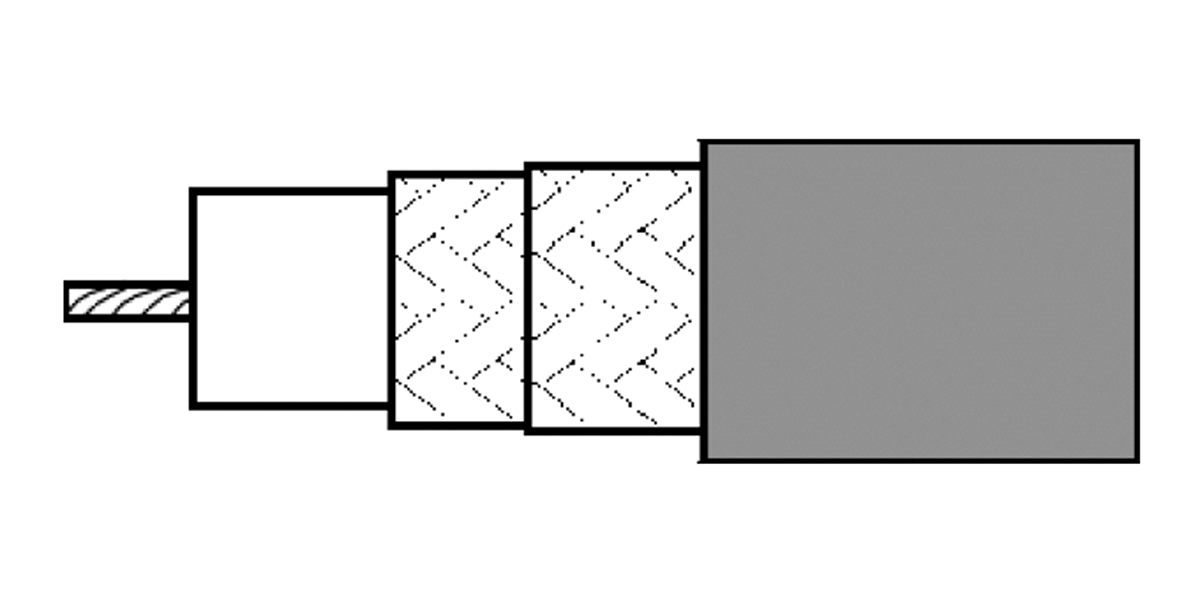

Product Number: MRG214
MRG2140 - Mil-Spec Coax, 50 Ohm, RG-214, 13 AWG Str SC, Double SC Braid, PVC Jkt, Commercial
Mil-Spec Coax, 50 Ohm, RG-214, 13 AWG (7x21) Silvered Copper Conductor, PE Insulation, 95%/90% Silvered Copper Braid Shield, PVC Jacket, Commercial
-
Availability:
EMEA | Asia Pacific
-
Global inventory:
Available
Specifications
Product Overview
|
Suitable Applications |
Point-to-point and point-to-multipoint wireless antenna communication; Wireless microphones, Two-Way Radios, Amateur (Ham) Radio, Low Power FM, GPS, RFID (Radio Frequency Identification) |
|---|
Construction Details
|
RG Type |
214 |
|---|
Conductor
| No. of Elements | Size | Stranding | Nom. Diameter | Material |
|---|---|---|---|---|
| 1 | 13 AWG | Stranded | 2.25 mm | SCCS - Silvered Copper Covered Steel |
Insulation
| Material | Nom. Insulation Diameter |
|---|---|
| PE - Polyethylene | 7.25 mm (0.285 in) |
Outer Shield
| Layer | Outer Shield Type | Material | Coverage |
|---|---|---|---|
| 1 | Braid | Silvered Copper (SC) | 86% |
| 2 | Braid | Silvered Copper (SC) | 90% |
Outer Jacket
| Material | Nom. Diameter |
|---|---|
| PVC - Polyvinyl Chloride | 10.8 mm |
|
Table Notes |
According to European Standard EN 50290-2-20 |
|---|
Electrical Characteristics
Return Loss
| Frequency | Min. Return Loss |
|---|---|
| 100 - 1000 MHz | 23 dB |
Attenuation
| Frequency | Nom. Attenuation |
|---|---|
| 50 MHz | 4.3 dB/100m |
| 230 MHz | 9.9 dB/100m |
| 470 MHz | 14.9 dB/100m |
| 860 MHz | 21.3 dB/100m |
| 1000 MHz | 23.3 dB/100m |
|
Table Notes |
Max. attenuation 10% higher |
|---|
Power Rating
| Frequency | Max. Power Rating |
|---|---|
| 100 MHz | 760 W |
| 1,000 MHz | 175 W |
Electricals
| Max. Conductor DCR | Nom. Outer Shield DCR | Nom. Capacitance Cond-to-Shield | Nom. Characteristic Impedance | Nom. Velocity of Prop. |
|---|---|---|---|---|
| 6 Ohm/km (1.8 Ohm/1000ft) | 3.1 Ohm/km (0.94 Ohm/1000ft) | 100 pF/m (30 pF/ft) | 50 Ohm | 66% |
Mechanical Characteristics
Temperature
| Operating | Installation | Storage |
|---|---|---|
| -40°C To +70°C | -5°C To +50°C | -40°C To +70°C |
Bend Radius
| Stationary Min. |
|---|
| 110 mm (4.3 in) |
|
Bulk Cable Weight |
181 kg/km |
|---|
Standards and Compliance
|
Environmental Suitability |
Indoor - Euroclass Eca |
|---|---|
|
Flammability / Reaction to Fire |
IEC 60332-1-2 |
|
CPR Compliance |
CPR Euroclass: Eca; CPR UKCA Class: Eca |
|
ISO/IEC Compliance |
IEC 61196 |
|
UK Regulation Compliance |
UKCA Mark |
History
|
Update and Revision |
Revision Number: 0.201 Revision Date: 02-03-2025 |
|---|
Information
|
Update and Revision |
Revision Number: 0.201 Revision Date: 02-03-2025 |
|---|
Part Numbers
| Item # | Color | Putup Type | Length | EAN |
|---|---|---|---|---|
| MRG214.0025 | Black | Reel | 25 m | 8719605103123 |
| MRG214.00100 | Black | Reel | 100 m | 8719605103116 |
| MRG214.00200 | Black | Reel | 200 m | 8719605181602 |
| MRG214.00500 | Black | Reel | 500 m | 8719605103130 |
