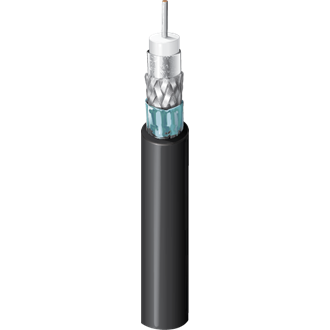

4794R

4K UHD Coax for 12G-SDI, 75 Ohm, Series 7, 16 AWG Solid SC, Tri-Shield, PVC Jkt, CMR

...
75 Ohm SDI Coax, Series 7, 16 AWG Solid Silvered Copper Conductor, PE Insulation, Foil + 95% Tinned Copper Braid + Foil Shield, PVC Jacket, CMR
Get Product Alerts

Specifications
Product Overview

Suitable Applications

Ultra-High Definition Digital Video, 4K Single-link 12 Gb/s UHDTV, 4K D-Cinema, 8K Quad-link UHDTV, HD-SDI 1080p

Construction Details

Series Type

7

Conductor
Size Stranding Nom. Diameter Material
16 AWG Solid 0.051 in SC - Silvered Copper
Insulation
Material Nom. Insulation Diameter Color Code Notes
PE - Polyethylene (Foam) 0.225 in (5.72 mm) White Gas Injected
Outer Shield
Layer Outer Shield Type Material Material Trade Name Coverage Notes
1 Tape Tri-Laminate (Alum+Poly+Alum) Duobond® II 100%
2 Braid Tinned Copper (TC) 95%
3 Tape Bi-Laminate (Alum+Poly) Beldfoil® 100% With Shorting Fold and Bonded to inside of jacket for easy preparation
Outer Jacket
Material Nom. Diameter
PVC - Polyvinyl Chloride 0.320 in (8.13 mm)

Overall Cable Diameter (Nominal)

0.320 in (8.13 mm)

Electrical Characteristics
Return Loss
Frequency Min. Return Loss
5 - 1600 MHz 23 dB
1600 - 4500 MHz 21 dB
4500 - 12000 MHz 15 dB
Attenuation
Frequency Nom. Attenuation
1 MHz 0.26 dB/100ft
3.58 MHz 0.43 dB/100ft
5 MHz 0.50 dB/100ft
6 MHz 0.52 dB/100ft
7 MHz 0.55 dB/100ft
10 MHz 0.63 dB/100ft
12 MHz 0.66 dB/100ft
25 MHz 0.88 dB/100ft
55 MHz 1.21 dB/100ft
67.5 MHz 1.31 dB/100ft
71.5 MHz 1.34 dB/100ft
88.5 MHz 1.47 dB/100ft
100 MHz 1.54 dB/100ft
135 MHz 1.75 dB/100ft
143 MHz 1.79 dB/100ft
180 MHz 1.98 dB/100ft
270 MHz 2.40 dB/100ft
360 MHz 2.76 dB/100ft
540 MHz 3.41 dB/100ft
720 MHz 3.96 dB/100ft
750 MHz 4.05 dB/100ft
1000 MHz 4.70 dB/100ft
1500 MHz 5.83 dB/100ft
2000 MHz 6.80 dB/100ft
2250 MHz 7.25 dB/100ft
3000 MHz 8.48 dB/100ft
4500 MHz 10.66 dB/100ft
6000 MHz 12.47 dB/100ft
12000 MHz 19.45 dB/100ft
Electricals
Nom. Conductor DCR Nom. Outer Shield DCR Nom. Capacitance Cond-to-Shield Nom. Characteristic Impedance Nom. Velocity of Prop.
4.0 Ohm/1000ft 1.8 Ohm/1000ft (5.9 Ohm/km) 16.0 pF/ft (52.5 pF/m) 75 Ohm 85%
Voltage
UL Voltage Rating
300 V (CMR, CMG)
Mechanical Characteristics
Temperature
UL Temperature Operating
60°C -20°C to +75°C
Bend Radius
Installation Min.
3.2 in (81 mm)

Max. Pull Tension

84 lbs (38 kg)

Bulk Cable Weight

55 lbs/1000ft

Standards and Compliance

Environmental Suitability

Indoor - Riser, Indoor, Aerial - Black only, When supported by messenger wire

Sustainability

CA Prop 65

Flammability / Reaction to Fire

UL1666 Vertical Shaft

CPR Compliance

CPR Euroclass: Eca; CPR UKCA Class: Eca

NEC / UL Compliance

CMR

CEC / C(UL) Compliance

CMG

European Directive Compliance

EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)

UK Regulation Compliance

UKCA Mark

APAC Compliance

China RoHS II (GB/T 26572-2011)

Plenum Number

4794P

History

Update and Revision

Revision Number: 0.403 Revision Date: 04-29-2024

Part Numbers
Item # Color Putup Type Length UPC Footnote
4794R 0101000 Black Reel 1,000 ft 612825379201 C
4794R 0102500 Black Reel 2,500 ft 612825379218 C Z
4794R 0061000 Blue, Light Reel 1,000 ft 612825395331
4794R N3U1000 Mil Green Reel 1,000 ft 612825395324
4794R 0031000 Orange Reel 1,000 ft 612825395201
4794R 0071000 Purple Reel 1,000 ft 612825395225
4794R 0021000 Red Reel 1,000 ft 612825395195
4794R 0091000 White Reel 1,000 ft
4794R 0041000 Yellow Reel 1,000 ft 612825395218
