34918

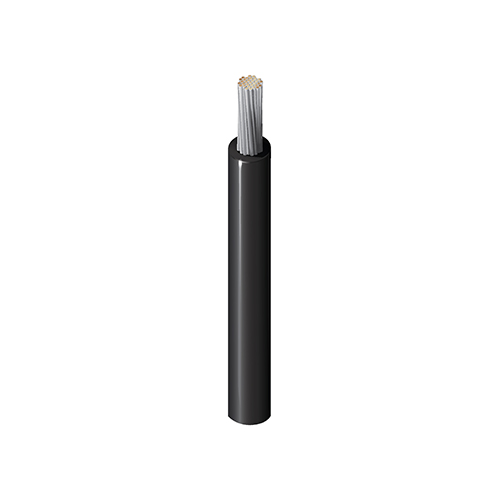

Lead Wire, #18 Str TC, CSPE Ins, AWM 3190

...
Low Temp Rubber Lead Wire, 18AWG (16x30) Tinned Copper, CSPE Insulation, AWM 3190 CSA TYPE CL1052 300V 105C

Regions Available: Global
English
Request Quote
Share
Request Sample Get Product Alerts

Specifications
Report An Error
Product Overview

Suitable Applications

Class 130(B) motor lead systems, internal wiring of appliances, oil resistance applications

Physical Characteristics (Overall)
Conductor
AWG Stranding Material No. of Conductors
18 16x30 TC - Tinned Copper 1

Conductor Count

1

Insulation
Material Nominal Diameter Nominal Wall Thickness
CSPE - Chlorosulphonated Polyethylene 0.11 in 0.032 in
Electrical Characteristics
Voltage
UL Voltage Rating
300 V RMS
Temperature Range

UL Temp Rating

105°C

Mechanical Characteristics

Bulk Cable Weight

10 lbs/1000ft

Min. Bend Radius/Minor Axis

0.44 in
Standards

UL AWM Style Compliance

AWM 3190

CSA Rating

300 V RMS, 105°C

CSA Type

CL1052

Applicable Environmental and Other Programs

EU Directive 2000/53/EC (ELV)

Yes

EU Directive 2003/96/EC (BFR)

Yes

EU Directive 2011/65/EU (RoHS 2)

Yes

EU Directive 2012/19/EU (WEEE)

Yes

EU Directive 2015/863/EU (RoHS 2 amendment)

Yes

EU Directive Compliance

EU Directive 2003/11/EC (BFR)

CA Prop 65

Yes

MII Order #39 (China RoHS)

Yes

Flammability, LS0H, Toxicity Testing

UL voltage rating

300 V RMS

Plenum/Non-Plenum

Plenum (Y/N)

No

Related Part Numbers

Footnote

F - MAY CONTAIN MORE THAN 1 PIECE. MINIMUM LENGTH OF ANY ONE PIECE IS 50'., C - CRATE REEL PUT-UP., I - MAY CONTAIN MORE THAN 1 PIECE. MINIMUM LENGTH OF ANY ONE PIECE IS 200'., U - TOPCOAT ADDERS ON STOCK SOLID COLORS. MINIMUM ORDER 10,000' PER COLOR COMBINATION. (SEE TOPCOAT ADDER TABLE), Z - FINAL PUT-UP MAY VARY (= OR -) 10% FOR SPOOLS OR REELS AND (+ OR -) 5% FOR UNREEL CARTONS FROM LENGTH SHOWN.
History

Update and Revision

Revision Number: 0.357 Revision Date: 05-05-2023

Show All Specifications
Hide Specifications
Part Numbers
Item # Color Put-Up Type Length UPC
34918 010500 Black Reel 500 ft 612825144298
34918 0105000 Black Reel 5,000 ft 612825144304
34918 002500 Red Reel 500 ft 612825144274
34918 0025000 Red Reel 5,000 ft 612825144281
