8022

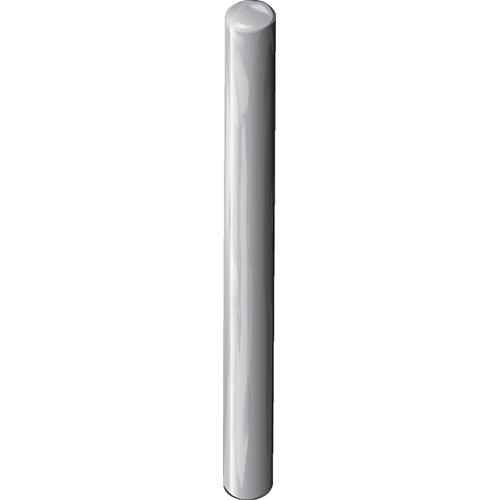

Bus Bar Wire, #24 Sol TC

...
Bus Bar Wire, 24AWG (Solid) Tinned Copper, QQ-W-343G
English
Request Quote
Share
Request Sample Get Product Alerts

Specifications
Report An Error
Product Overview

Suitable Applications

bus bar

Physical Characteristics (Overall)
Conductor
AWG Stranding Material No. of Conductors
24 Solid TC - Tinned Copper 1

Conductor Count

1

Construction and Dimensions

Circular Mil Area (CMA)1

424

Electrical Characteristics
Conductor DCR
Nominal Conductor DCR
25.4 Ohm/1000ft
Mechanical Characteristics

Bulk Cable Weight

1 lbs/1000ft

Min. Bend Radius/Minor Axis

0.08 in
Applicable Environmental and Other Programs

EU Directive 2000/53/EC (ELV)

Yes

EU Directive 2003/96/EC (BFR)

Yes

EU Directive 2011/65/EU (RoHS 2)

Yes

EU Directive 2012/19/EU (WEEE)

Yes

EU Directive 2015/863/EU (RoHS 2 amendment)

Yes

EU Directive Compliance

EU Directive 2003/11/EC (BFR)

EU CE Mark

Yes

CA Prop 65

Yes

MII Order #39 (China RoHS)

Yes

Flammability, LS0H, Toxicity Testing

UL voltage rating

N/A

Plenum/Non-Plenum

Plenum (Y/N)

No

History

Update and Revision

Revision Number: 0.350 Revision Date: 05-05-2023

Show All Specifications
Hide Specifications
Part Numbers
Item # Color Put-Up Type Length UPC
8022 000100 None Reel 100 ft 612825194361
8022 0001000 None Reel 1,000 ft 612825194378
