BE41339

Lead Wire, #8 Str BC, PVC Ins, AWM 1017

...
UL AWM ST1017 VW1 8AWG/NX41B CSA TEW FT1
English
Request Quote
Share
Get Product Alerts

Specifications
Report An Error
Product Overview

Suitable Applications

UL Appliance Wiring Material Subject 758 Style 1017, 80C, 600 volt, VW-1, oil 60C; CSA Equipment wires C22.2 no. 127 Type TEW, 105C, 600V, FT1, oil 60C

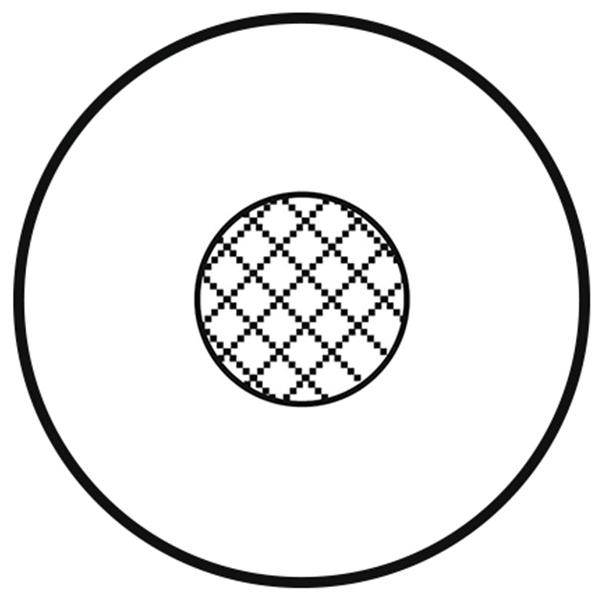

Construction Details
Conductor
Size Stranding Material Notes
8 AWG Stranded BC - Bare Copper Construction: 2156x0.071
Insulation
Material Nom. Thickness Nom. Insulation Diameter
PVC - Polyvinyl Chloride 1.19 mm (0.0469 in) 7.5 mm (0.30 in)
Electrical Characteristics
Voltage
UL Voltage Rating
600 V
Mechanical Characteristics
Temperature
UL Temperature
80°C (CSA 105°C)
Standards and Compliance

Environmental Suitability

Indoor, Oil Resistance

Flammability / Reaction to Fire

VW-1

AWM Compliance

AWM 1017, TEW

Military Compliance

N/A

History

Update and Revision

Revision Number: 0.170 Revision Date: 03-04-2023

Show All Specifications
Hide Specifications
Part Numbers
Item # Color Putup Type Length EAN
BE41339.041400 Blue Reel 1,400 m 8719605025678
BE41339.031400 Red Reel 1,400 m 8719605025661
BE41339.01500 Yellowgreen Reel 500 m 8719605025630
BE41339.011400 Yellowgreen Reel 1,400 m 8719605025623
