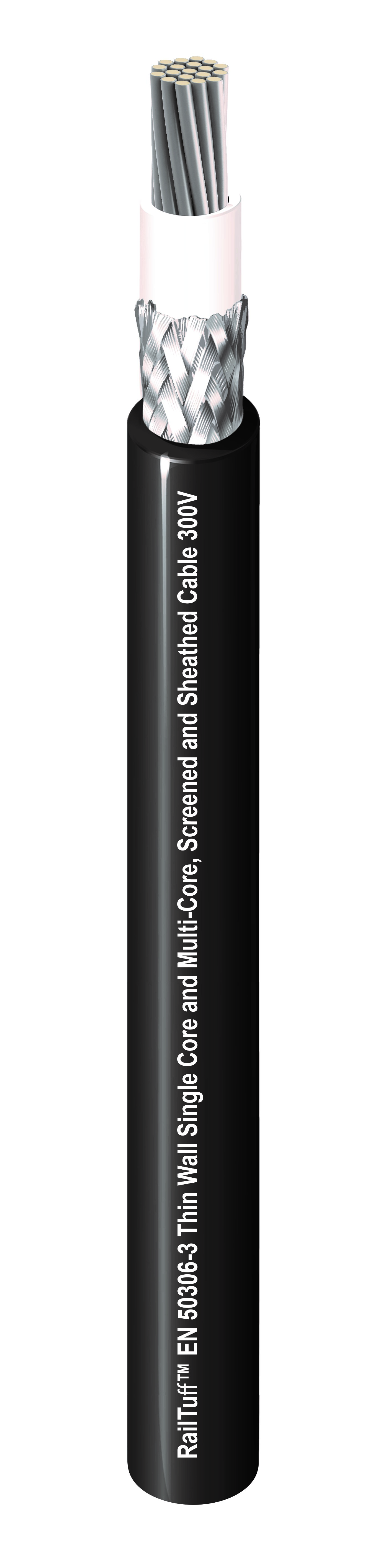

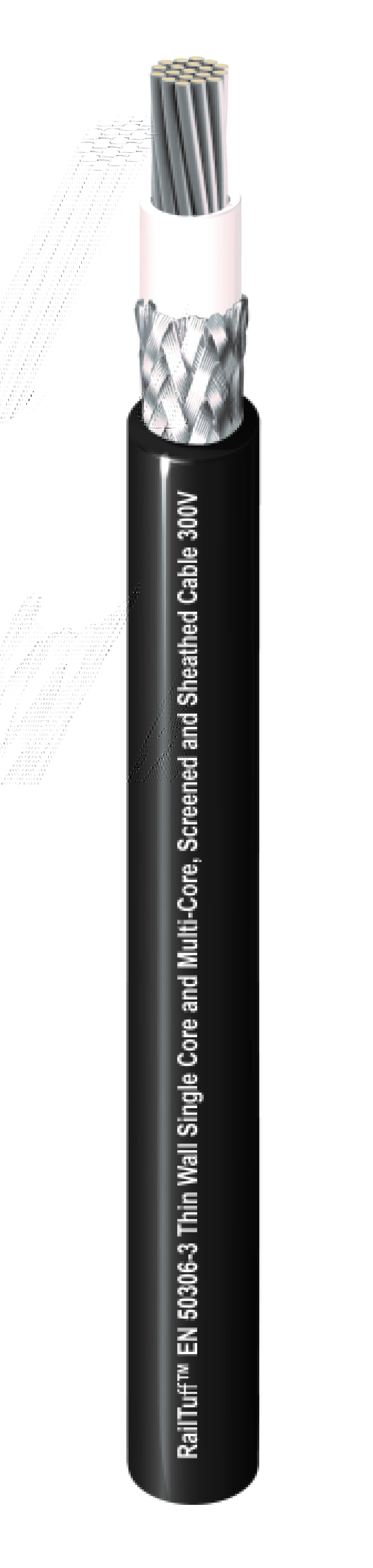

RTB1C1

RailTuff™ Thin wall cable 300V 1 C 1.0 mm² TC, XLPO Ins, TCBS, XLPO Outer Jkt

...
RailTuff™ Thin wall cable 300V 1 Core 1.0 mm² Tinned Copper, XLPO Insulation, Tinned Copper Braid Shield, XLPO Outer Jacket
English
Request Quote
Share
Get Product Alerts

Specifications
Report An Error
Product Overview

Suitable Applications

Applicable for fixed or moderate flexing wiring inside Railway Rolling Stock like High-Speed Trains (CRH, Shinkansen, ICE, TGV), Metro, locomotives, and trolley buses, etc

Construction Details
Conductor
Size Material
1 mm² TC - Tinned Copper
Insulation
Material Nom. Insulation Diameter Color Code
XLP, XLPO, XLPE 1.77 mm (0.0697 in) White#1
Outer Shield
Shield Type Material
Braid Tinned Copper (TC)
Outer Jacket
Material Nom. Diameter
XLP, XLPO, XLPE 3.00 mm (0.118 in)

Overall Cable Diameter (Nominal)

3 ± 0.15 mm

Mechanical Characteristics
Temperature
Operating
-40°C to +90°C
Bend Radius
Stationary Min. Installation Min.
30 mm (1.2 in) 30 mm (1.2 in)

Bulk Cable Weight

20.7 kg/km (13.9 lbs/1000ft)

Standards and Compliance

Environmental Suitability

Indoor, Outdoor, Non-Halogenated

Flammability / Reaction to Fire

IEC 60332-1-2, IEC 60332-2-25, EN 50305

European Halogen Free Standards

IEC 60754-2 - Halogen Acid Gas Amount - Max. Conductivity = 10 µS/mm, IEC 60754-2 - Halogen Acid Gas Amount - Min. pH = 4.3

Product Notes

Notes

EMEA PN: RTB1C100;

History

Update and Revision

Revision Number: 0.37 Revision Date: 07-15-2024
