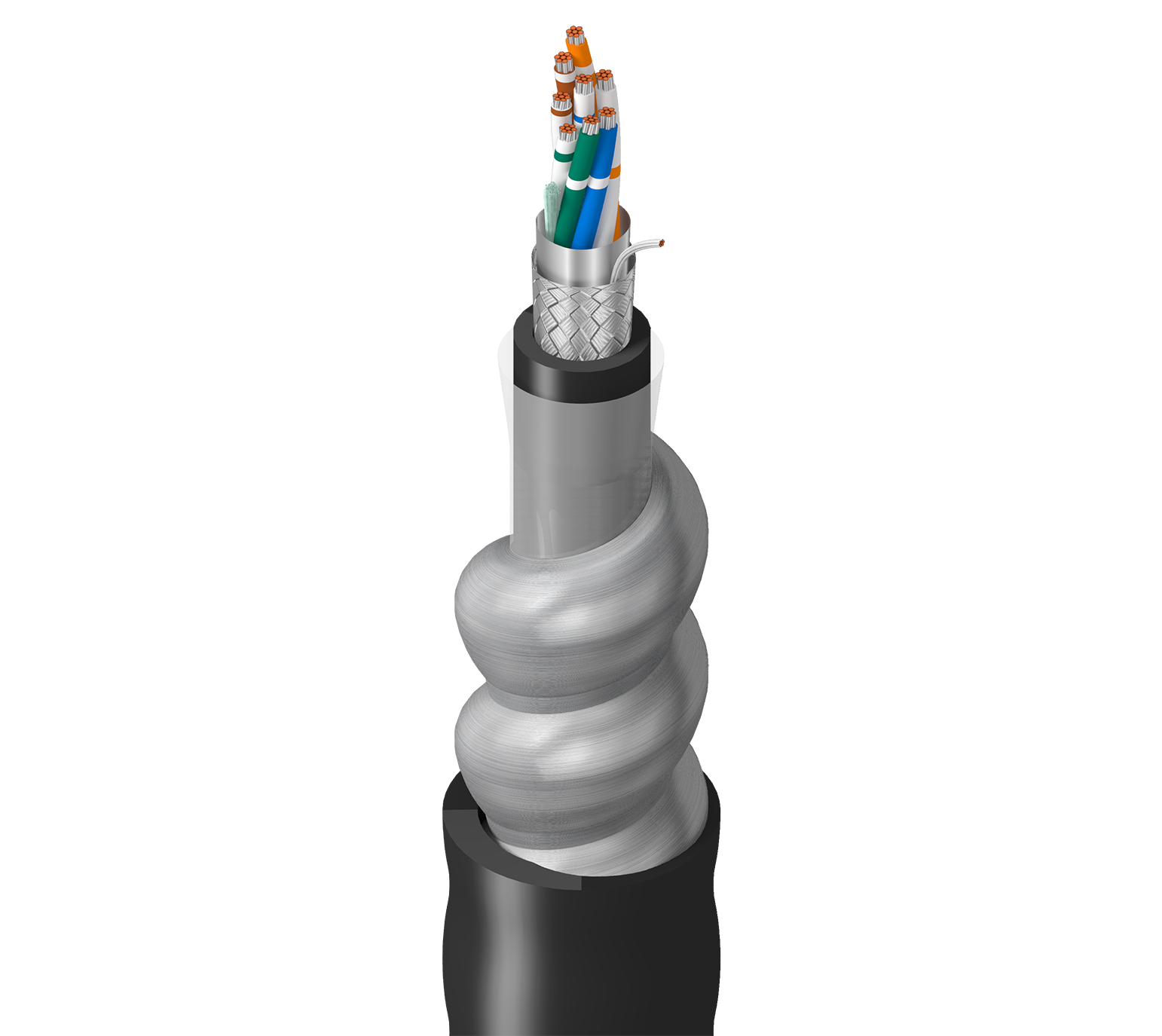

Product Number: 133109A
RS485, 4 Pr #22 Str TC, PE Ins, OS+TC Brd, PVC Jkt, SIA Armor, PVC Jkt, CM, PLTC
RS-485, 4 Pair 22AWG (7x30) Tinned Copper, PE Insulation, Overall Beldfoil®+Tinned Copper Braid(65%) Shield, PVC Inner Jacket, Steel Interlock Armor, PVC Outer Jacket, CM, PLTC
-
Availability:
Global
-
Global inventory:
Available
Specifications
Product Overview
|
Suitable Applications |
exposure to rodent, crush, or cut through force, burial, serial communication (RS-485 standard) comprising of PLCs, VFDs, HMIs, motors, RTU, SCADA, etc. within noisy environments over long distance, outdoor such as solar, lighting, etc. |
|---|
Construction Details
Conductor
| Element | No. of Elements | Size | Stranding | Material |
|---|---|---|---|---|
| Pair(s) | 4 | 22 AWG | 7x30 | TC - Tinned Copper |
Insulation
| Element | Material | Nom. Thickness | Color Code | Notes |
|---|---|---|---|---|
| Pair(s) | PE - Polyethylene (Foam) | 0.023 in (0.58 mm) | White/Blue Stripe & Blue/White Stripe, White/Orange Stripe & Orange/White Stripe, White/Green Stripe & Green/White Stripe, White/Brown Stripe & Brown/White Stripe | HDPE |
Outer Shield
| Shield Type | Material | Coverage | Drainwire Type |
|---|---|---|---|
| Tape | Bi-Laminate (Alum+Poly) | 100% | 22 AWG (7x30) TC |
| Braid | Tinned Copper (TC) | 65% |
Inner Jacket
| Material | Nom. Diameter |
|---|---|
| PVC - Polyvinyl Chloride | 0.448 in (11.4 mm) |
Outer Jacket
| Material | Nom. Thickness | Nom. Diameter |
|---|---|---|
| PVC - Polyvinyl Chloride | 0.050 in (1.3 mm) | 0.744 in (18.9 mm) |
|
Overall Cable Diameter (Nominal) |
0.744 in (18.9 mm) |
|---|
Electrical Characteristics
Electricals
| Element | Nom. Characteristic Impedence | Nom. Velocity of Prop. |
|---|---|---|
| Pair(s) | 120 Ohm | 78% |
High Frequency (Nominal/Typical)
| Element |
|---|
| Pair(s) |
Voltage
| UL Voltage Rating |
|---|
| 300 V (CM, PLTC) |
Mechanical Characteristics
|
Table Notes |
-40C |
|---|
Standards and Compliance
|
Environmental Suitability |
Outdoor, Sunlight Resistance |
|---|---|
|
NEC / UL Compliance |
Article 725, Article 800, CM, PLTC |
|
CEC / C(UL) Compliance |
CMG HLBCD |
History
|
Update and Revision |
Revision Number: 0.62 Revision Date: 12-22-2023 |
|---|
Information
|
Update and Revision |
Revision Number: 0.62 Revision Date: 12-22-2023 |
|---|
