Product Number: 189841

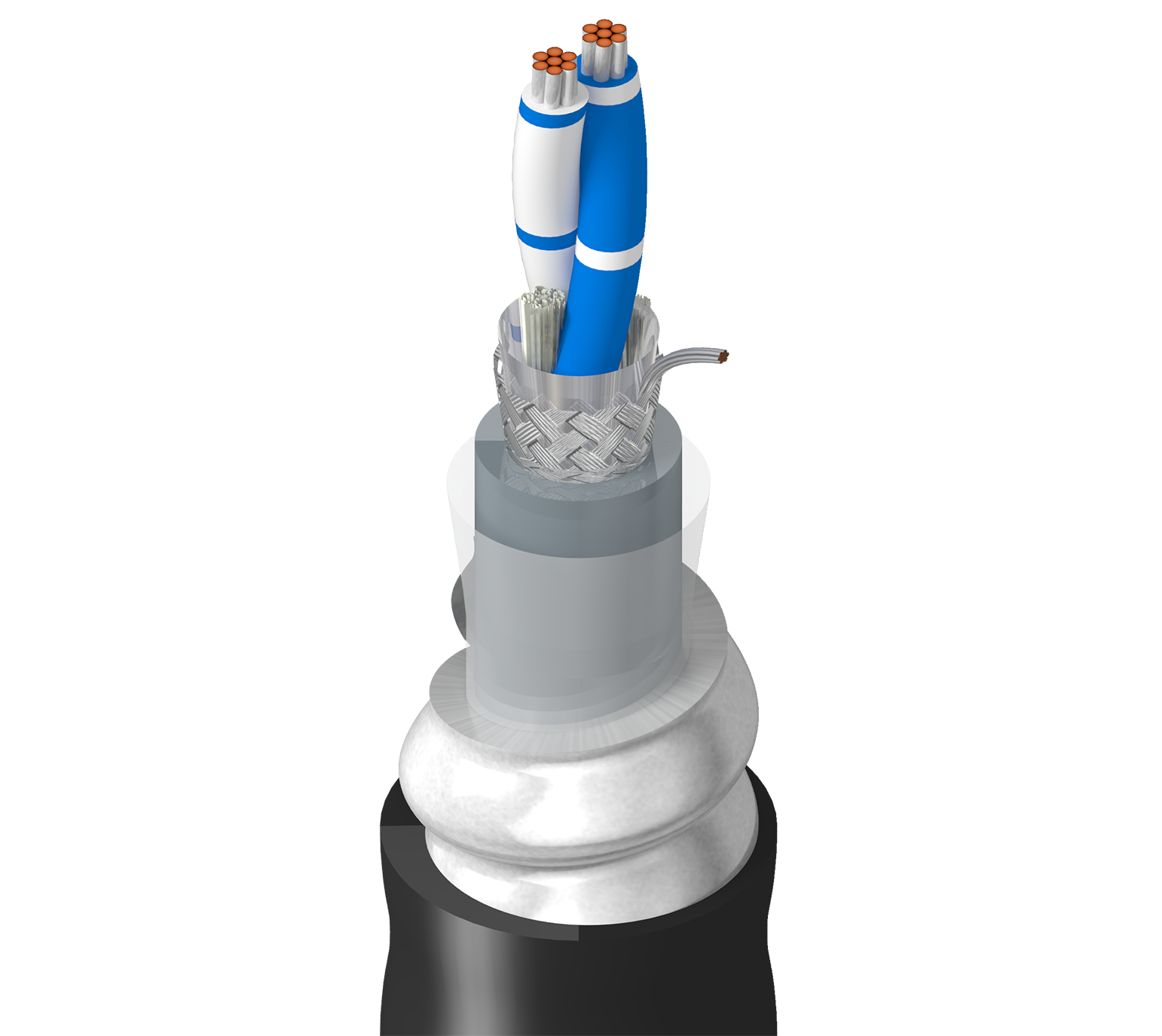

RS485, 1 Pr #24 Str TC, PE Ins, OS+TC Brd, PVC Jkt, CCA Armor, PVC Jkt, CM
RS-485, 1 Pair 24AWG (7x32) Tinned Copper, PE Insulation, Overall Beldfoil®+Tinned Copper Braid(90%) Shield, PVC Inner Jacket, Continuous Cast Aluminum Armor, PVC Outer Jacket, CM
-
Availability:
Global
-
Global inventory:
Available
Specifications
Product Overview
|
Suitable Applications |
exposure to rodent, crush, or cut through force, burial, POS, serial communication (RS-485 standard) comprising of PLCs, VFDs, HMIs, motors, RTU, SCADA, etc. within noisy environments over long distance, outdoor such as solar, lighting, etc. |
|---|
Construction Details
Conductor
| Element | No. of Elements | Size | Stranding | Material |
|---|---|---|---|---|
| Pair(s) | 1 | 24 AWG | 7x32 | TC - Tinned Copper |
Insulation
| Element | Material | Nom. Thickness | Color Code |
|---|---|---|---|
| Pair(s) | PE - Polyethylene | 0.023 in (0.58 mm) | White/Blue Stripe & Blue/White Stripe |
Outer Shield
| Shield Type | Material | Coverage | Drainwire Type |
|---|---|---|---|
| Tape | Bi-Laminate (Alum+Poly) | 100% | 24 AWG (7x32) TC |
| Braid | Tinned Copper (TC) | 90% |
Inner Jacket
| Material | Nom. Diameter |
|---|---|
| PVC - Polyvinyl Chloride | 0.232 in (5.89 mm) |
Armor
| Armor Type & Material |
|---|
| CCAA - Continuously Corrugated Aluminum Armor |
Outer Jacket
| Material | Nom. Thickness | Nom. Diameter |
|---|---|---|
| PVC - Polyvinyl Chloride | 0.050 in (1.3 mm) | 0.515 in (13.1 mm) |
|
Overall Cable Diameter (Nominal) |
0.515 in (13.1 mm) |
|---|
Electrical Characteristics
Electricals
| Element | Nom. Characteristic Impedence |
|---|---|
| Pair(s) | 120 Ohm |
High Frequency (Nominal/Typical)
| Element |
|---|
| Pair(s) |
Voltage
| UL Voltage Rating |
|---|
| 300 V (CM) |
Standards and Compliance
|
Environmental Suitability |
Outdoor, Sunlight Resistance |
|---|---|
|
NEC / UL Compliance |
Article 800, CM |
|
CEC / C(UL) Compliance |
CM |
History
|
Update and Revision |
Revision Number: 0.60 Revision Date: 02-15-2024 |
|---|
