Product Number: 77906ELW
KNX, 2PR 0.8mm Sol BC, LSZH ins, OS, LSZH Jkt, Cca

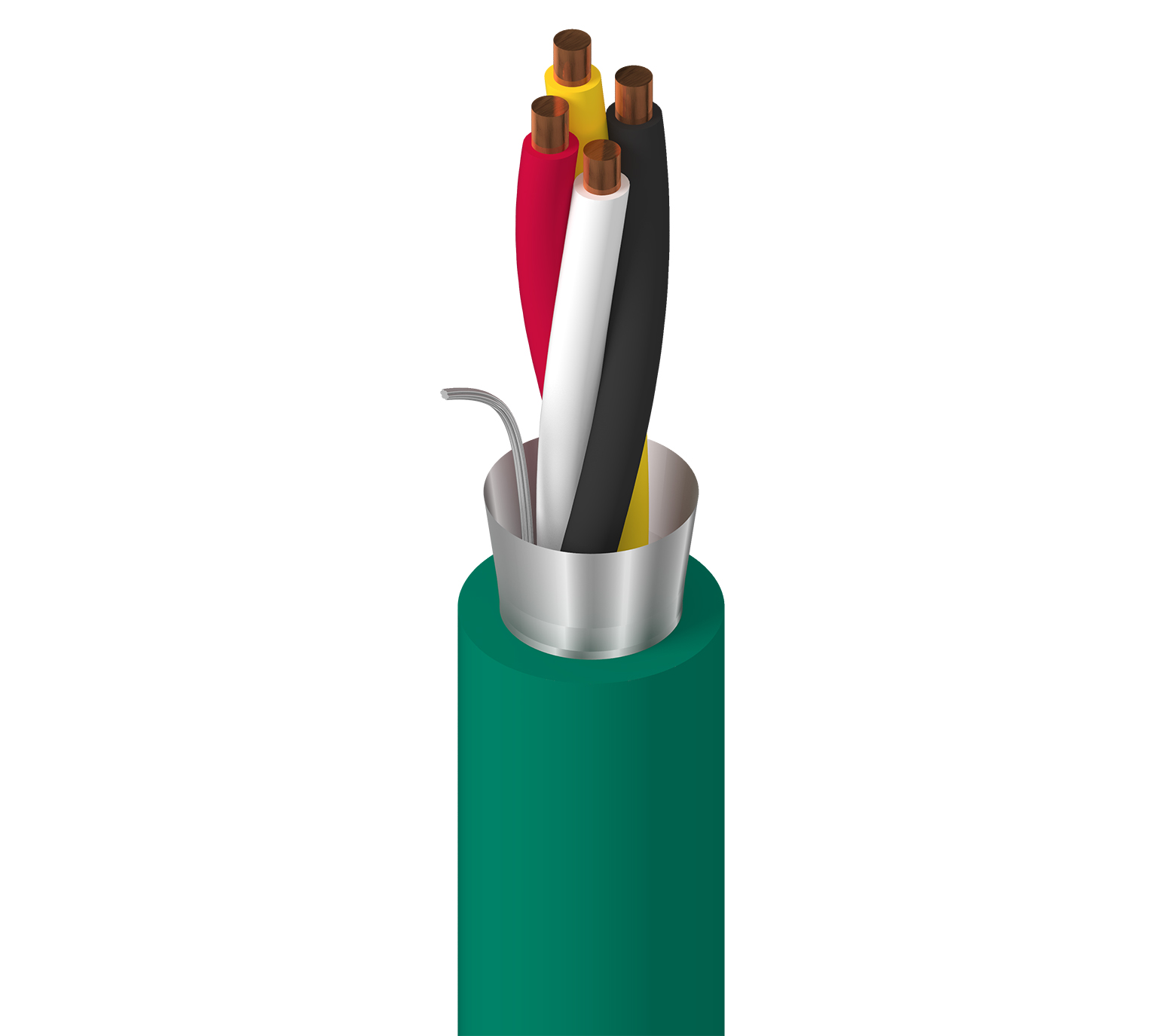

KNX, 2 Pairs, 0.8 mm cond diameter, Bare Copper - Solid, LSZH insulation, Overall Beldfoil® shielding, LSZH / FRNC jacket , CPR Cca
-
Availability:
Global
-
Global inventory:
Available
Specifications
Product Overview
|
Suitable Applications |
KNX, EIB cable for building management |
|---|
Physical Characteristics (Overall)
Conductor
| Stranding | Material | Nominal Diameter | No. of Pairs |
|---|---|---|---|
| Solid | BC - Bare Copper | 0.8 mm | 2 |
|
Conductor Count |
4 |
|---|
Insulation
| Material | Nominal Diameter | Diameter +/- Tolerance | Nominal Wall Thickness |
|---|---|---|---|
| LSZH - Low Smoke Zero Halogen (Flame Retardant) | 1.6 mm | 0.05 mm | 0.4 mm |
Color Chart
| Number |
|---|
| Quad 1 |
Outer Shield
| Type | Material | Material Trade Name | Coverage [%] | Thickness of Foil | Drainwire Material | Drainwire Diameter |
|---|---|---|---|---|---|---|
| Tape | Bi-Laminate (Alum+Poly) | Beldfoil® | 100% | 9 µm | TC - Tinned Copper | 0.4 mm |
Outer Jacket
| Material | Nominal Diameter | Nominal Wall Thickness |
|---|---|---|
| LSZH - Low Smoke Zero Halogen (Flame Retardant) | 6.3 mm | 1.2 mm |
Construction and Dimensions
Cabling
| Description |
|---|
| 1 quad covered with a polyester foil |
Electrical Characteristics
Conductor DCR
| Max. Conductor DCR |
|---|
| 37.5 Ohm/km |
Capacitance
| Nom. Capacitance Conductor to Conductor |
|---|
| 70 pF/m |
Voltage
| Voltage Rating [V] |
|---|
| 300 V |
|
Electrical Characteristics Notes |
Testvoltage 4 kV, 1 min |
|---|
Temperature Range
|
Storage Temperature Range |
-30°C to +70°C |
|---|---|
|
Operating Temperature Range |
-20°C To +70°C |
Mechanical Characteristics
|
Min. Bend Radius During Installation |
63 mm |
|---|---|
|
Min Setting Radius |
31 mm |
Standards
|
CPR Euroclass |
Cca-s1,d1,a1 |
|---|
Applicable Environmental and Other Programs
|
Environmental Space |
Indoor - Euroclass Cca |
|---|
Flammability, LS0H, Toxicity Testing
|
IEC Flammability |
IEC 60332-1-2, IEC 60332-3-24 |
|---|---|
|
IEC 60754-1 - Halogen Amount |
Zero |
|
IEC 60754-2 - Halogen Acid Gas Amount - Max. Conductivity |
2.5 µS/mm |
|
IEC 60754-2 - Halogen Acid Gas Amount - Min. pH |
4.3 |
Product Notes
|
Notes |
KNX REG 109/16282/19 |
|---|
History
|
Update and Revision |
Revision Number: 0.64 Revision Date: 03-28-2025 |
|---|
Information
|
Update and Revision |
Revision Number: 0.64 Revision Date: 03-28-2025 |
|---|
Part Numbers
| Item # | Color | Put-Up Type | Length | EAN |
|---|---|---|---|---|
| 77906ELW.00500 | Green | Reel | 500 m | 8719605193520 |
