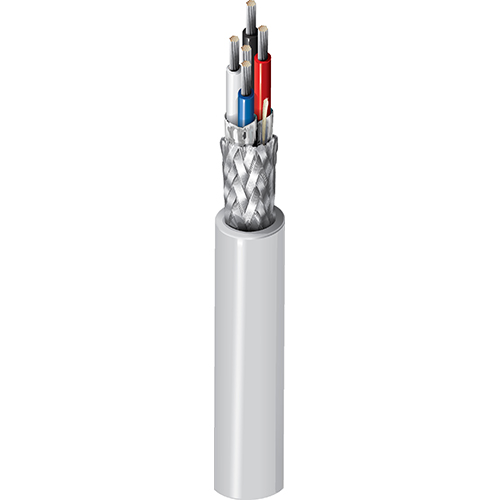

DeviceBus®, 2 Pr #18+20 Str TC, PVC+FPE Ins, IS+OA TC Brd, PVC Jkt, CMG, PLTC
|
Suitable Applications |
harsh environment, ODVA device-level communication, used with CIP (common Industrial Protocol) for control, configuration, and data collection between devices, such as sensors and actuators, and higher level devices such as PLC, and PC in industrial automation, bus topology, etc. |
|---|
| Element | No. of Elements | Size | Stranding | Material |
|---|---|---|---|---|
| Power Pair(s) | 1 | 18 AWG | 19x30 | TC - Tinned Copper |
| Data Pair(s) | 1 | 20 AWG | 19x32 | TC - Tinned Copper |
| Element | Material | Nom. Thickness | Nom. Insulation Diameter | Color Code |
|---|---|---|---|---|
| Power Pair(s) | PVC - Polyvinyl Chloride | 0.018 in (0.46 mm) | 0.080 in (2.0 mm) | Red & Black |
| Data Pair(s) | PE - Polyethylene (Foam) | 0.040 in (1.0 mm) | 0.129 in (3.28 mm) | Blue & White |
| Element | Shield Type | Material | Coverage |
|---|---|---|---|
| Power Pair(s) | Tape | Bi-Laminate (Alum+Poly) | 100% |
| Data Pair(s) | Tape | Bi-Laminate (Alum+Poly) | 100% |
| Shield Type | Material | Coverage | Drainwire Type |
|---|---|---|---|
| Braid | Tinned Copper (TC) | 65% | 20 AWG (19x32) TC |
| Material | Nom. Thickness | Nom. Diameter |
|---|---|---|
| PVC - Polyvinyl Chloride | 0.045 in (1.1 mm) | 0.378 in (9.60 mm) |
|
Table Notes |
Jacket OD +/- 0.010 |
|---|---|
|
Overall Cable Diameter (Nominal) |
0.378 in (9.60 mm) |
| Element | Nom. Conductor DCR | Max. Conductor DCR | Nom. Capacitance Cond-to-Cond | Nom. Characteristic Impedence | Nom. Velocity of Prop. | Max. Current |
|---|---|---|---|---|---|---|
| Power Pair(s) | 6.9 Ohm/1000ft | 6.9 Ohm/1000ft | 4 Amps Per Conductor at 24 V (per NEC CL2) (Power Pair) | |||
| Data Pair(s) | 10.9 Ohm/1000ft (35.8 Ohm/km) | 10.9 Ohm/100m | 12 pF/ft (39 pF/m) | 120 Ohm | 75% |
|
Nom. Outer Shield DCR |
3.2 Ohm/1000ft (10 Ohm/km) |
|---|
| Element | Frequency [MHz] | Max. Insertion Loss (Attenuation) |
|---|---|---|
| Data Pair(s) | 0.125 | .29 dB/100ft |
| 0.5 | 0.5 dB/100ft | |
| 1 | 0.7 dB/100ft |
| UL Voltage Rating |
|---|
| 300 V (CMG, PLTC), 600 V (UL AWM 20201) |
| UL Temperature | Operating |
|---|---|
| 75°C | -20°C to +75°C |
| Stationary Min. | Installation Min. |
|---|---|
| 3.8 in (97 mm) | 3.8 in (97 mm) |
|
Max. Pull Tension |
65 lbs (29 kg) |
|---|---|
|
Bulk Cable Weight |
76 lbs/1000ft |
|
Environmental Suitability |
Indoor, Outdoor, Sunlight Resistance, Oil Resistance |
|---|---|
|
Flammability / Reaction to Fire |
UL 1685 FT4 Loading, FT4, IEEE 1202, IEC 60332-1-2 |
|
CPR Compliance |
CPR Euroclass: Eca |
|
NEC / UL Compliance |
Article 725, Article 800, CMG, PLTC |
|
AWM Compliance |
AWM 20201 |
|
CEC / C(UL) Compliance |
CMG |
|
European Directive Compliance |
EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
|
UK Regulation Compliance |
UKCA Mark |
|
Other Standard Compliance(s) |
ODVA Cable III |
|
Notes |
Mid. Meter marks on jacket to aid users in installation. ODVA DeviceNet is an Open DeviceNet Vendor Association, Inc. trademark. |
|---|
|
Update and Revision |
Revision Number: 0.547 Revision Date: 04-30-2024 |
|---|
| Item # | Color | Putup Type | Length | UPC | Footnote |
|---|---|---|---|---|---|
| 7895A T5U500 | Gray T5U | Reel | 500 ft | 612825190806 | |
| 7895A T5U1000 | Gray T5U | Reel | 1,000 ft | 612825190790 | C |
| 7895A T5U5000 | Gray T5U | Reel | 5,000 ft | 612825190813 | C Z |
