8477

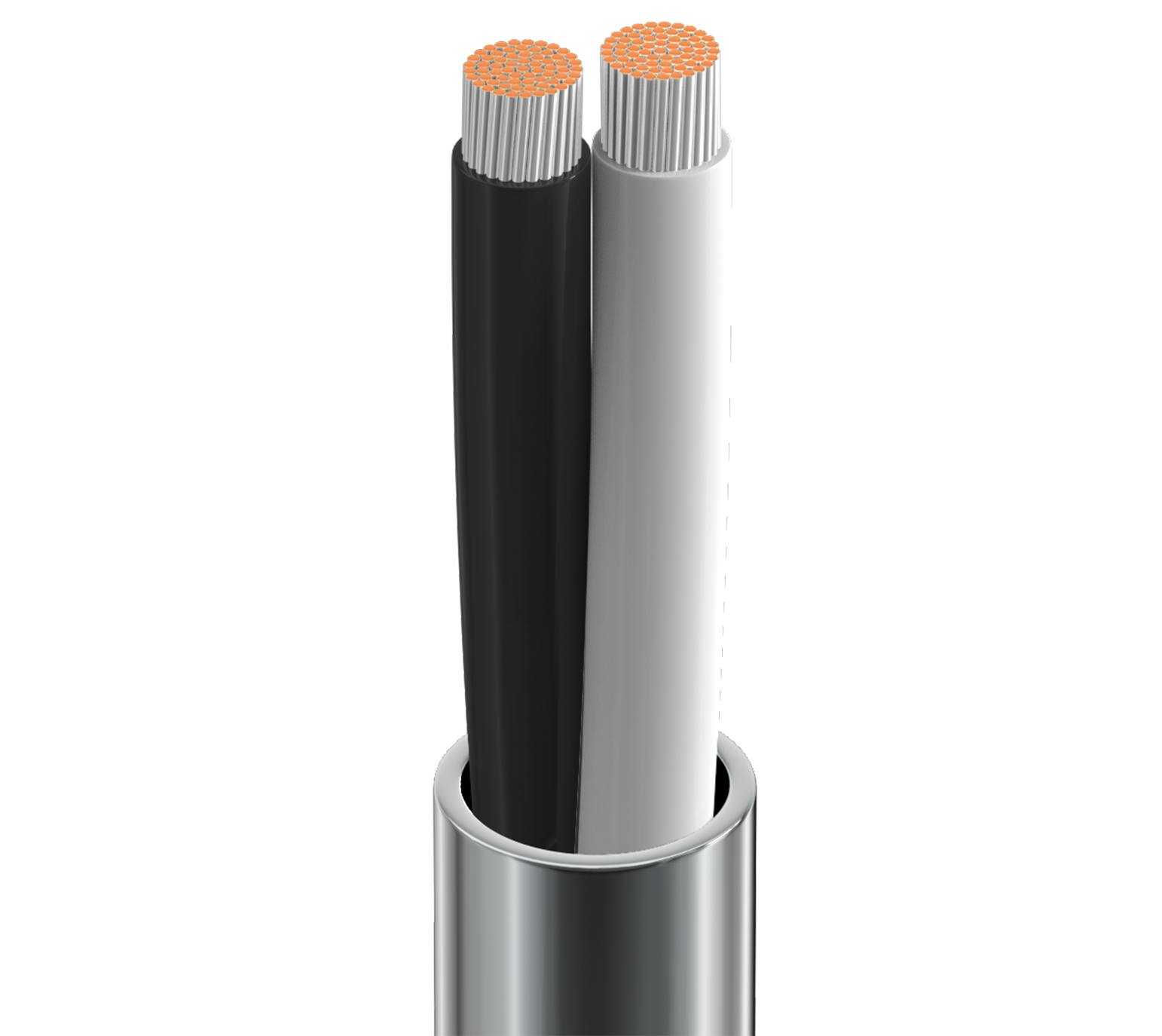

Electronic, 2 C #12 Str TC, PVC Ins, PVC Jkt, CL3R

...
Electronic, 2 Conductor 12AWG (65x30) Tinned Copper, PVC Insulation, PVC Outer Jacket, CL3R
English
Request Quote
Share
Request Sample Get Product Alerts

Specifications
Report An Error
Product Overview

Suitable Applications

up to 600V analog signals ; up to 600V digital control ; line level audio; voice communications; panel wiring

Construction Details
Conductor
Element No. of Elements Size Stranding Material
Pair(s) 1 12 AWG 65x30 TC - Tinned Copper
Insulation
Element Material Nom. Thickness Nom. Insulation Diameter Color Code
Pair(s) PVC - Polyvinyl Chloride 0.033 in (0.84 mm) 0.158 in (4.01 mm) Black & White
Outer Jacket
Material Nom. Thickness Nom. Diameter
PVC - Polyvinyl Chloride 0.035 in (0.89 mm) 0.386 in (9.80 mm)

Overall Cable Diameter (Nominal)

0.386 in (9.80 mm)

Electrical Characteristics
Electricals
Element Nom. Conductor DCR Nom. Capacitance Cond-to-Cond Max. Current
Pair(s) 1.78 Ohm/1000ft 35 pF/ft (110 pF/m) 30 Amps per Conductor at 30ºC
Voltage
UL Voltage Rating
600 V (CL3R), 600 V (UL AWM 2587)
Mechanical Characteristics
Temperature
UL Temperature Operating
90°C -20°C to +90°C
Bend Radius
Stationary Min. Installation Min.
3.9 in (99 mm) 3.9 in (99 mm)

Max. Pull Tension

169 lbs (76.7 kg)

Bulk Cable Weight

79 lbs/1000ft

Standards and Compliance

Environmental Suitability

Indoor

Sustainability

CA Prop 65

Flammability / Reaction to Fire

UL 1666 Riser, IEC 60332-1-2

CPR Compliance

CPR Euroclass: Eca

NEC / UL Compliance

Article 725, CL3R

AWM Compliance

AWM 2587

European Directive Compliance

EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)

UK Regulation Compliance

UKCA Mark

APAC Compliance

China RoHS II (GB/T 26572-2011)

Product Notes

Notes

See NEC Guidelines for applicable CL3 voltage ratings.

History

Update and Revision

Revision Number: 0.518 Revision Date: 02-15-2024

Show All Specifications
Hide Specifications
Part Numbers
Item # Color Putup Type Length UPC Footnote
8477 060500 Chrome Reel 500 ft 612825208662 C
8477 060U500 Chrome UnReel 500 ft 612825208648
8477 0601000 Chrome Reel 1,000 ft 612825208655 C
8477 0605000 Chrome Reel 5,000 ft 612825208679 C Z
