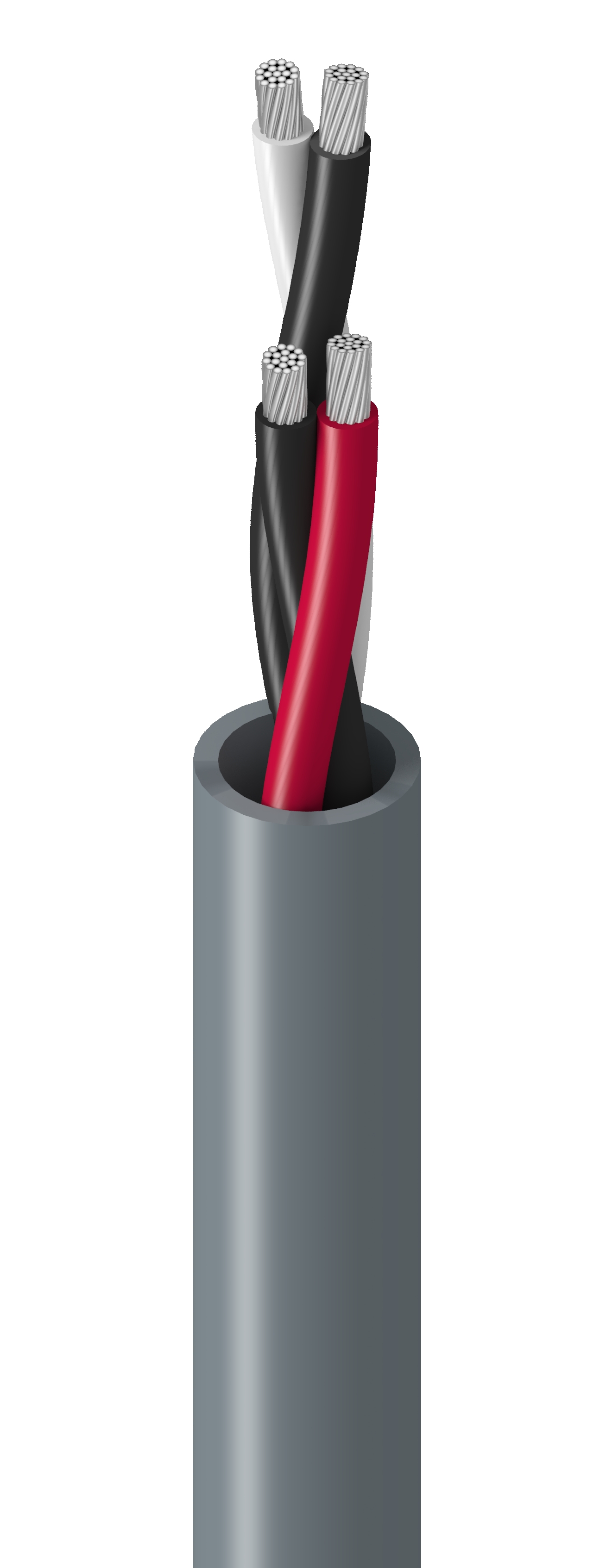

Product Number: 9156ZH
Electronic, 2 Pr #18 Str TC, PVC Ins, LSZH Jkt, CMG
Electronic, 2 Pair 18AWG (16x30) Tinned Copper, PVC Insulation, LSZH Outer Jacket, CMG
-
Availability:
Global
-
Global inventory:
Available
Specifications
Construction Details
Conductor
| Element | No. of Elements | Size | Stranding | Material |
|---|---|---|---|---|
| Pair(s) | 2 | 18 AWG | 16x30 | TC - Tinned Copper |
Insulation
| Element | Material | Nom. Thickness | Nom. Insulation Diameter | Color Code |
|---|---|---|---|---|
| Pair(s) | PP - Polypropylene | 0.013 in (0.33 mm) | 0.073 in (1.9 mm) | Black & Red, Black & White |
Outer Shield
| Material |
|---|
| No Shield |
Outer Jacket
| Material | Nom. Thickness | Nom. Diameter |
|---|---|---|
| LSZH - Low Smoke Zero Halogen (Flame Retardant) | 0.035 in (0.89 mm) | 0.333 in |
|
Overall Cable Diameter (Nominal) |
0.333 in |
|---|
Electrical Characteristics
Electricals
| Nom. Conductor DCR | Nom. Capacitance Cond-to-Cond | Max. Current |
|---|---|---|
| 7.2 Ohm/1000ft | 17.5 pF/ft (57.4 pF/m) | 11.2 Amps per Conductor at 30ºC |
Voltage
| UL Voltage Rating |
|---|
| 300 V |
Mechanical Characteristics
Temperature
| UL Temperature | Operating |
|---|---|
| 75°C | -20°C to 75°C |
Bend Radius
| Stationary Min. | Installation Min. |
|---|---|
| 3.33 in (84.6 mm) | 3.33 in |
|
Max. Pull Tension |
83.2 lbs (37.7 kg) |
|---|---|
|
Bulk Cable Weight |
65 lbs/1000ft |
Standards and Compliance
|
Environmental Suitability |
Indoor |
|---|---|
|
Flammability / Reaction to Fire |
UL1685 FT4 Loading, FT4 |
|
CPR Compliance |
CPR Euroclass: Eca |
|
NEC / UL Compliance |
Article 800, CMG |
|
AWM Compliance |
AWM 21307 |
|
CEC / C(UL) Compliance |
CMG |
|
European Directive Compliance |
EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
|
UK Regulation Compliance |
UKCA Mark |
|
APAC Compliance |
China RoHS II (GB/T 26572-2011) |
History
|
Update and Revision |
Revision Number: 0.343 Revision Date: 05-05-2023 |
|---|
Information
|
Update and Revision |
Revision Number: 0.343 Revision Date: 05-05-2023 |
|---|
Part Numbers
| Item # | Color | UPC |
|---|---|---|
| 9156ZH 0101000 | Black | 612825382188 |
| 9156ZH 010500 | Black | 612825382195 |
