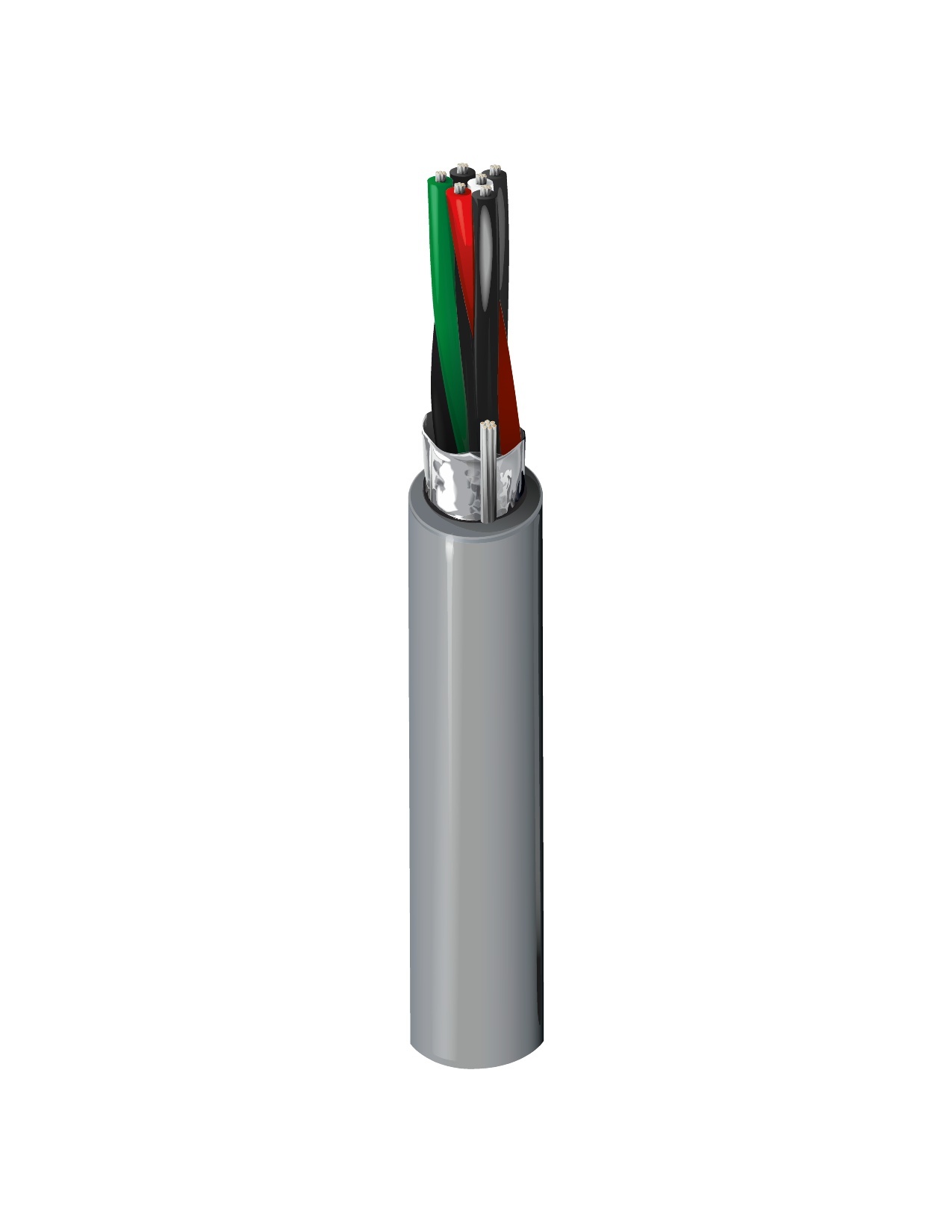

9503NH

RS-232, 3PR #24 Str TC, PO ins, OS, LSZH Jkt, 300V

...
3-Pair, 24 AWG stranded (7x32) TC conductors, PE insulation, twisted pairs, overall Beldfoil shield (100% coverage), 24 AWG stranded TC drain Wire, LSZH jacket, Flame resistance IEC 60332-3C
English
Request Quote
Share
Get Product Alerts

Specifications
Report An Error
Product Overview

Suitable Applications

Instrumentation and computer cable; For EIA RS-232 data transmission applications

Physical Characteristics (Overall)
Conductor
AWG Stranding Material No. of Pairs
24 7x32 TC - Tinned Copper 3

Conductor Count

6

Insulation
Material Nominal Diameter Diameter +/- Tolerance
PE - Polyethylene 1.12 mm 0.05 mm
Color Chart
Number Color
Pair 1 Black & Red
Pair 2 Black & White
Pair 3 Black & Green
Outer Shield
Type Material Material Trade Name Thickness of Foil Drainwire Material Drainwire AWG
Tape Bi-Laminate (Alum+Poly) Beldfoil® 9 / 12 µm TC - Tinned Copper AWG24/7
Outer Jacket
Material Nominal Diameter Nominal Wall Thickness
LSZH - Low Smoke Zero Halogen (Flame Retardant) 6.07 mm 0.9 mm
Construction and Dimensions
Cabling
Description
3 pairs twisted to cable core
Electrical Characteristics
Conductor DCR
Nominal Conductor DCR Nominal Inner Shield DCR
78.7 Ohm/km 55.8 Ohm/km
Capacitance
Nom. Capacitance Conductor to Conductor Nom. Capacitance Conductor to Other Conductor to Shield
98.4 pF/m 164 pF/m
Impedance
Frequency [MHz] Nominal Characteristic Impedance
N/A 75 Ohm
Current
Element Max. Recommended Current [A]
Conductor(s) 1.76 Amps per Conductor
Voltage
Voltage Rating [V]
300 V
Temperature Range

Installation Temperature Range

-15°C To +80°C

Storage Temperature Range

-45°C To +80°C

Operating Temp Range (Flexible Install)

-15°C To +80°C

Operating Temp Range (Fixed Install)

-45°C To +80°C

Mechanical Characteristics

Oil Resistance

IEC 60811-404

Max. Pull Tension

150 N

Min. Bend Radius During Installation

60.7 mm
Standards

CPR Euroclass

Dca-s1,d1,a1

CENELEC Compliance

EN 50290-2-20
Applicable Environmental and Other Programs

Environmental Space

Indoor - Euroclass Dca
Suitability

Suitability - Sunlight Resistance

Yes

Flammability, LS0H, Toxicity Testing

IEC Flammability

IEC 60332-1-2, IEC 60332-3-24

IEC 60754-1 - Halogen Amount

Zero

IEC 60754-2 - Halogen Acid Gas Amount - Max. Conductivity

2.5 µS/mm

IEC 60754-2 - Halogen Acid Gas Amount - Min. pH

4.3

IEC 61034-2 - Smoke Density Min. Transmittance

60%

History

Update and Revision

Revision Number: 0.235 Revision Date: 06-28-2024

Show All Specifications
Hide Specifications
Part Numbers
Item # Color Put-Up Type Length EAN
9503NH.01500 Blue Reel 500 m 8719605021120
9503NH.00152 Chrome Reel 152 m 8719605021090
9503NH.00305 Chrome Reel 305 m 8719605021106
9503NH.00500 Chrome Reel 500 m 8719605021113
9503NH.001000 Chrome Reel 1,000 m 8719605021083
9503NH.01200 Orange Reel 200 m 8719605189233
9503NH.01250 Orange Reel 250 m 8719605187079
