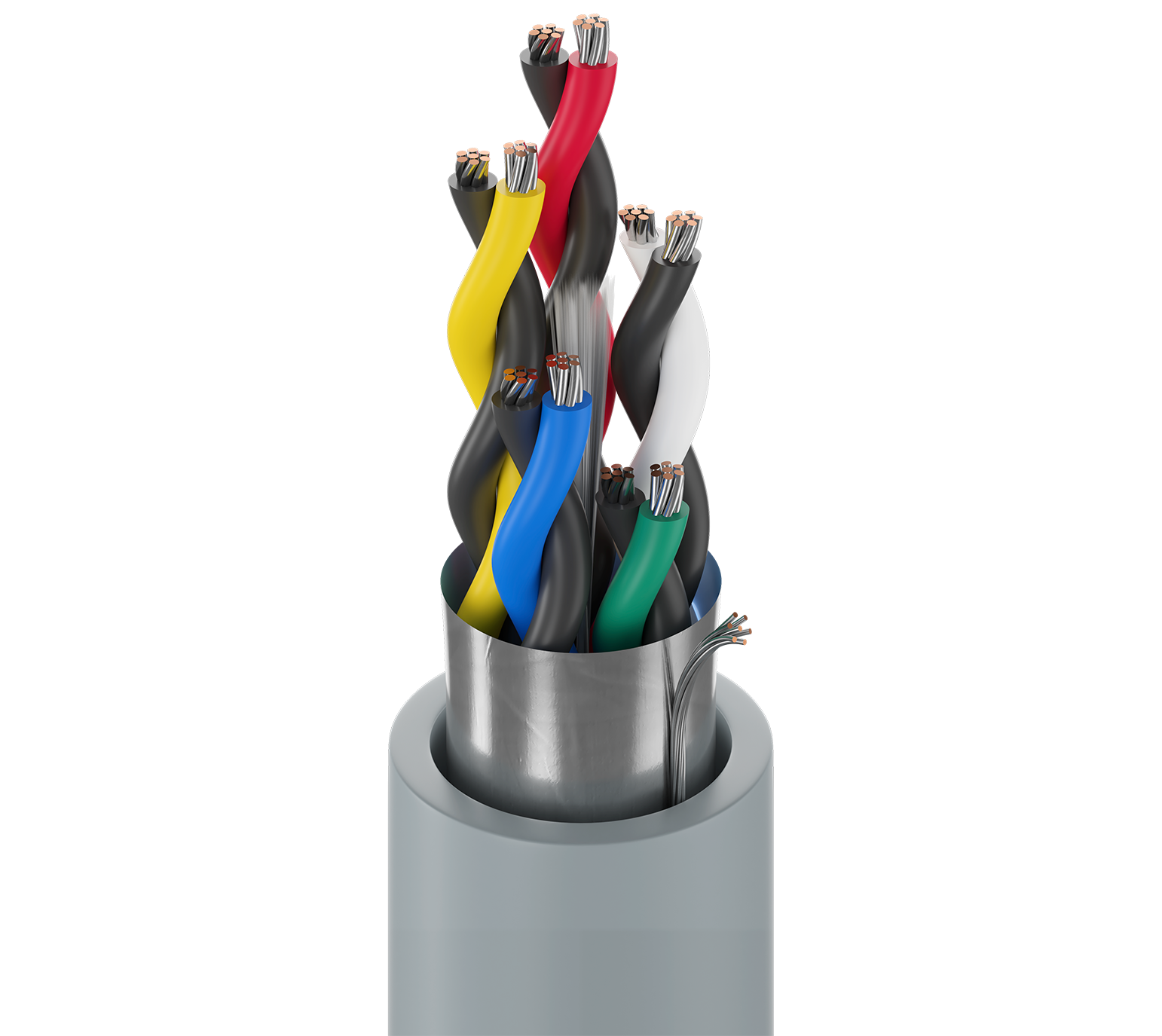

RS232, #24-5pr, SR-PVC, O/A Foil, PVC Jkt, CMG, 75Ω
|
Suitable Applications |
RS-232 Applications; Computer Communications; Low Voltage Analog Signals (4-20ma, 0-10v, ...); Low Voltage Digital Control (24v, …); Line Level Audio; Panel Wiring |
|---|
| Element | No. of Elements | Size | Stranding | Material |
|---|---|---|---|---|
| Pair(s) | 5 | 24 AWG | 7x32 | TC - Tinned Copper |
| Element | Material | Nom. Thickness | Nom. Insulation Diameter | Color Code |
|---|---|---|---|---|
| Pair(s) | SR-PVC - Polyvinyl Chloride (Semi-Rigid) | 0.011 in (0.28 mm) | 0.044 in (1.1 mm) | Black & Red, Black & White, Black & Green, Black & Blue, Black & Yellow |
| Shield Type | Material | Coverage | Drainwire Type |
|---|---|---|---|
| Tape | Bi-Laminate (Alum+Poly) | 100% | 24 AWG (7x32) TC |
| Material | Nom. Thickness | Nom. Diameter |
|---|---|---|
| PVC - Polyvinyl Chloride | 0.032 in (0.81 mm) | 0.289 in (7.34 mm) |
|
Overall Cable Diameter (Nominal) |
0.289 in (7.34 mm) |
|---|
| Element | Nom. Conductor DCR | Nom. Capacitance Cond-to-Cond | Nom. Capacitance Cond-to-Other (Conds + Shield) | Nom. Characteristic Impedence | Nom. Velocity of Prop. | Max. Current |
|---|---|---|---|---|---|---|
| Pair(s) | 28.8 Ohm/1000ft | 30 pF/ft (98 pF/m) | 50 pF/ft (160 pF/m) | 75 Ohm | 60% | 2.2 Amps per Conductor at 25ºC |
| UL Voltage Rating |
|---|
| 300 V (CMG), 300 V (UL AWM 2464) |
| UL Temperature | Operating |
|---|---|
| 80°C | -30°C to +80°C |
| Stationary Min. | Installation Min. |
|---|---|
| 2.9 in (74 mm) | 2.9 in (74 mm) |
|
Max. Pull Tension |
60 lbs (27 kg) |
|---|---|
|
Bulk Cable Weight |
40 lbs/1000ft |
|
Environmental Suitability |
Indoor |
|---|---|
|
Flammability / Reaction to Fire |
UL 1685 FT4 Loading, FT4 |
|
CPR Compliance |
CPR Euroclass: Eca; CPR UKCA Class: Eca |
|
NEC / UL Compliance |
Article 800, CMG |
|
AWM Compliance |
AWM 2464, AWM I/II A |
|
CEC / C(UL) Compliance |
CMG |
|
European Directive Compliance |
EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
|
UK Regulation Compliance |
UKCA Mark |
|
APAC Compliance |
China RoHS II (GB/T 26572-2011) |
|
Plenum Number |
89505, 82505 |
|
Update and Revision |
Revision Number: 0.491 Revision Date: 12-22-2023 |
|---|
| Item # | Color | Putup Type | Length | UPC/EAN | Footnote |
|---|---|---|---|---|---|
| 9505.0030 | Chrome | Reel | 30 m | 8719605021243 | |
| 9505 060100 | Chrome | Reel | 100 ft | 612825254324 | |
| 9505.00U152 | Chrome | UnReel | 152 m | 8719605021267 | |
| 9505.01152 | Chrome | Reel | 152 m | 8719605021281 | |
| 9505.00305 | Chrome | Reel | 305 m | 8719605021250 | |
| 9505.00U305 | Chrome | UnReel | 305 m | 8719605021274 | |
| 9505 060500 | Chrome | Reel | 500 ft | 612825254348 | C |
| 9505 060U500 | Chrome | UnReel | 500 ft | 612825254317 | |
| 9505 0601000 | Chrome | Reel | 1,000 ft | 612825254331 | C |
| 9505 060U1000 | Chrome | UnReel | 1,000 ft | 612825254300 | |
| 9505.001525 | Chrome | Reel | 1,525 m | 8719605179791 | |
| 9505 0605000 | Chrome | Reel | 5,000 ft | 612825254355 | C |
