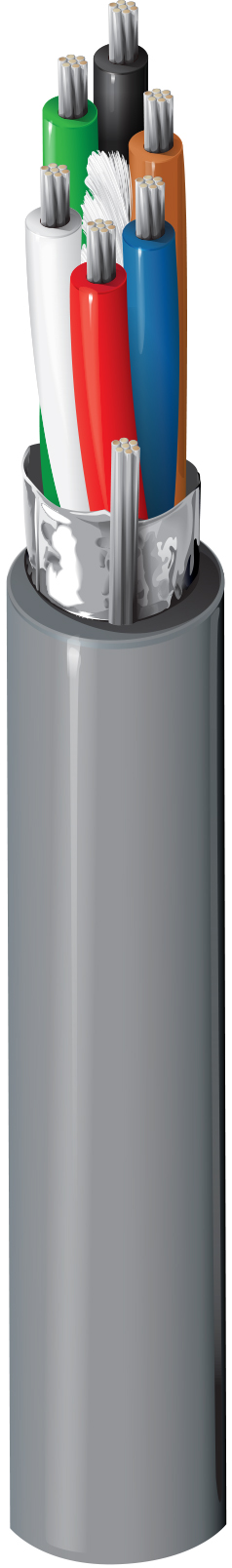

Product Number: 9536ELW
RS-232, 6C #24 Str TC, PO ins, OS, LSZH Jkt, 300V, Cca
24 AWG stranded (7x32) tinned copper conductors, 6 conductors cabled, PE insulation, overall Beldfoil® shield (100% coverage), 24 AWG stranded tinned copper drain wire, LSZH jacket, Flame resistance IEC 60332-1-2, Cca
-
Availability:
Global
-
Global inventory:
Available
Specifications
Product Overview
|
Suitable Applications |
Instrumentation and computer cable; For EIA RS-232 data transmission applications |
|---|
Physical Characteristics (Overall)
Conductor
| AWG | Stranding | Material | No. of Conductors |
|---|---|---|---|
| 24 | 7x32 | TC - Tinned Copper | 6 |
|
Conductor Count |
6 |
|---|
Insulation
| Material | Nominal Diameter | Diameter +/- Tolerance |
|---|---|---|
| PE - Polyethylene (Foam) | 1.12 mm | 0.05 mm |
Color Chart
| Number | Color |
|---|---|
| Wire 1 | Black |
| Wire 2 | White |
| Wire 3 | Red |
| Wire 4 | Green |
| Wire 5 | Brown |
| Wire 6 | Blue |
Outer Shield
| Type | Material | Material Trade Name | Thickness of Foil | Drainwire Material | Drainwire AWG |
|---|---|---|---|---|---|
| Tape | Bi-Laminate (Alum+Poly) | Beldfoil® | 9 / 12 µm | TC - Tinned Copper | AWG24/7 |
Outer Jacket
| Material | Nominal Diameter | Nominal Wall Thickness |
|---|---|---|
| LSZH - Low Smoke Zero Halogen (Flame Retardant) | 6.6 mm | 1.3 mm |
Construction and Dimensions
Cabling
| Description | Filler |
|---|---|
| 1 center filler and 6 wires twisted to cable core | Cotton (White) |
Electrical Characteristics
Conductor DCR
| Nominal Conductor DCR | Nominal Outer Shield DCR |
|---|---|
| 82 Ohm/km | 59.1 Ohm/km |
Capacitance
| Nom. Capacitance Conductor to Conductor | Nom. Capacitance Conductor to Other Conductor to Shield |
|---|---|
| 108.3 pF/m | 213.3 pF/m |
Impedance
| Frequency [MHz] | Nominal Characteristic Impedance |
|---|---|
| N/A | 75 Ohm |
Current
| Element | Max. Recommended Current [A] |
|---|---|
| Conductor(s) | 1.75 Amps per Conductor |
Voltage
| Voltage Rating [V] |
|---|
| 300 V |
Temperature Range
|
Installation Temperature Range |
-15°C To +70°C |
|---|---|
|
Storage Temperature Range |
-45°C To +70°C |
|
Operating Temp Range (Flexible Install) |
-15°C To +70°C |
|
Operating Temp Range (Fixed Install) |
-45°C To +80°C |
Mechanical Characteristics
|
Oil Resistance |
IEC 60811-404 |
|---|---|
|
Max. Pull Tension |
150 N |
|
Min. Bend Radius During Installation |
64 mm |
Standards
|
CPR Euroclass |
Cca-s1,d1,a1 |
|---|---|
|
CENELEC Compliance |
EN 50290-2-20 |
Applicable Environmental and Other Programs
|
Environmental Space |
Indoor - Euroclass Cca |
|---|
Suitability
|
Suitability - Indoor |
Yes |
|---|---|
|
Suitability - Non-Halogenated |
Yes |
|
Suitability - Sunlight Resistance |
Yes |
Flammability, LS0H, Toxicity Testing
|
IEC Flammability |
IEC 60332-1-2 |
|---|---|
|
IEC 60754-1 - Halogen Amount |
Zero |
|
IEC 60754-2 - Halogen Acid Gas Amount - Max. Conductivity |
2.5 µS/mm |
|
IEC 60754-2 - Halogen Acid Gas Amount - Min. pH |
4.3 |
|
IEC 61034-2 - Smoke Density Min. Transmittance |
60% |
History
|
Update and Revision |
Revision Number: 0.39 Revision Date: 02-03-2025 |
|---|
Information
|
Update and Revision |
Revision Number: 0.39 Revision Date: 02-03-2025 |
|---|
Part Numbers
| Item # |
|---|
| 9536ELW.00500 |
