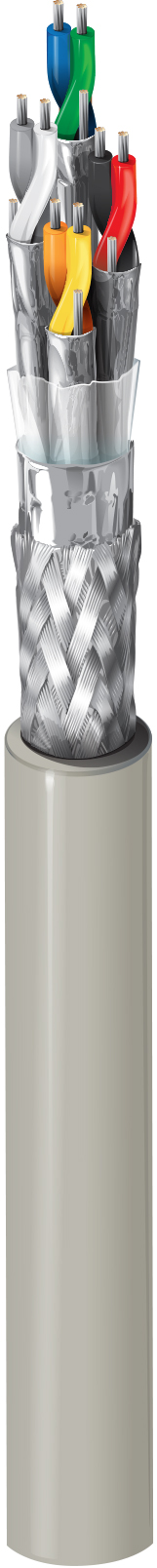

Transceiver 10BASE5, #20-4pr, FPO, Isolated Shields, PVC Jkt, CM

...
IEEE 802.3 Ethernet Transceiver 10BASE5, 20 AWG stranded (7x28) tinned copper conductors, Datalene® insulation, twisted pairs, overall polyester isolation tape + Duofoil® + tinned copper braid shield (95% coverage), drain wire, light gray PVC jacket.
English
Request Quote
Share
Get Product Alerts

Specifications
Report An Error
Product Overview

Suitable Applications

IEEE 802.3 Transceiver Cable

Construction Details
Conductor
Element No. of Elements Size Stranding Material
Pair(s) 4 20 7x28 TC - Tinned Copper
Insulation
Material Nom. Thickness Nom. Insulation Diameter Color Code Notes
PE - Polyethylene (Foam) 0.02 in (0.51 mm) 0.077 in (2.0 mm) Gray & White, Yellow & Orange, Blue & Green, Black & Red HDPE
Inner Shield
Shield Type Material Coverage
Tape Bi-Laminate (Alum+Poly) 100%
Outer Shield
Shield Type Material Coverage Drainwire Type
Tape Tri-Laminate (Alum+Poly+Alum) 100% 22 AWG (7x30) TC
Braid Tinned Copper (TC) 95%
Outer Jacket
Separator Material Nom. Thickness Nom. Diameter
Polyester Tape PVC - Polyvinyl Chloride 0.035 in (0.89 mm) 0.415 in
Electrical Characteristics
Electricals
Nom. Conductor DCR Nom. Capacitance Cond-to-Cond Nom. Capacitance Cond-to-Other (Conds + Shield) Nom. Characteristic Impedence Nom. Velocity of Prop. Max. Current
11.3 Ohm/1000ft 16.7 pF/ft (54.8 pF/m) 29.5 pF/ft (96.8 pF/m) 78 Ohm 78% 2.66 Amps per Conductor at 25ºC
Voltage
UL Voltage Rating
30 V (AWM 2919), 300 V (CM)
Mechanical Characteristics
Temperature
UL Temperature Operating
80°C -20°C To +80°C
Bend Radius
Stationary Min. Installation Min.
4.15 in (105 mm) 4.15 in

Max. Pull Tension

208 lbs (94.3 kg)

Bulk Cable Weight

97 lbs/1000ft

Standards and Compliance

Flammability / Reaction to Fire

UL1685 UL Loading, FT4

CPR Compliance

CPR Euroclass: Eca

NEC / UL Compliance

Article 725, Article 800, CL2, CM

AWM Compliance

AWM 2919

CEC / C(UL) Compliance

CM

IEEE Compliance

IEEE 802.3

European Directive Compliance

EU CE Mark, EU Directive 2012/19/EU (WEEE)

UK Regulation Compliance

UKCA Mark

APAC Compliance

China RoHS II (GB/T 26572-2011)

Other Standard Compliance(s)

DEC Part No. 17-01320-00

Plenum Number

89901
