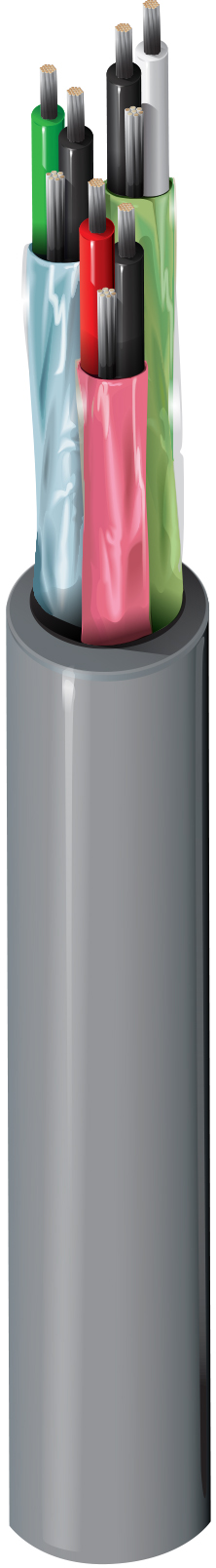

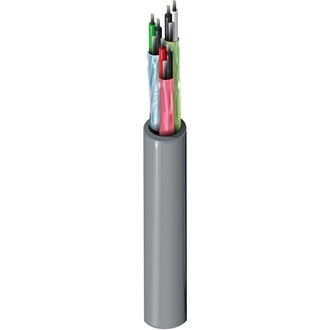

9990

Audio, Control & Instrument, #24-3pr, PO, Indiv. Foil, PVC Jkt, CM

...
Audio, Control & Instrument Cable, 24 AWG stranded (7x32) tinned copper conductors, polyethylene insulation, 3 twisted pairs, individually shielded with Beldfoil® (100% coverage), 24 AWG stranded tinned copper drain wire, PVC jacket.
English
Request Quote
Share
Get Product Alerts

Specifications
Report An Error
Product Overview

Suitable Applications

low voltage analog signals (4-20ma, 0-10v, ...); low voltage digital control (24v, …); line level audio; computer communication; panel wiring

Construction Details
Conductor
Element No. of Elements Size Stranding Material
Pair(s) 3 24 7x32 TC - Tinned Copper
Insulation
Material Nom. Thickness Nom. Insulation Diameter Color Code
PE - Polyethylene 0.011 in (0.28 mm) 0.046 in (1.2 mm) Black & Red, Black & White, Black & Green
Inner Shield
Shield Type Material Coverage Drainwire Type
Tape Bi-Laminate (Alum+Poly) 100% 24 AWG (7x32) TC
Outer Jacket
Material Nom. Thickness Nom. Diameter
PVC - Polyvinyl Chloride 0.035 in (0.89 mm) 0.255 in (6.48 mm)
Electrical Characteristics
Electricals
Nom. Conductor DCR Nom. Inner Shield DCR Nom. Capacitance Cond-to-Cond Nom. Capacitance Cond-to-Other (Conds + Shield) Nom. Characteristic Impedence Nom. Velocity of Prop. Max. Current
28.8 Ohm/1000ft 15.8 Ohm/1000ft (51.8 Ohm/km) 25 pF/ft (82 pF/m) 47 pF/ft (150 pF/m) 60 Ohm 66% 1.47 Amps per Conductor at 25ºC
Voltage
UL Voltage Rating
30 V (AWM 2919), 300 V (CM)
Mechanical Characteristics
Temperature
UL Temperature Operating
80°C -20°C To +80°C
Bend Radius
Stationary Min. Installation Min.
2.55 in (64.8 mm) 2.55 in (64.8 mm)

Max. Pull Tension

38.5 lbs (17.5 kg)

Bulk Cable Weight

32 lbs/1000ft

Standards and Compliance

Flammability / Reaction to Fire

UL1685 UL Loading, IEC 60332-1-2

CPR Compliance

CPR Euroclass: Eca

NEC / UL Compliance

Article 800, CM

AWM Compliance

AWM 2919

CEC / C(UL) Compliance

CM

European Directive Compliance

EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)

UK Regulation Compliance

UKCA Mark

APAC Compliance

China RoHS II (GB/T 26572-2011)

History

Update and Revision

Revision Number: 0.455 Revision Date: 12-22-2023

Show All Specifications
Hide Specifications
Part Numbers
Item # Color UPC Footnote
9990 0601000 Chrome 612825267683 C
9990 060500 Chrome 612825267690 C
