7202A

MachFlex™, 3 Pr #24 Str BC, PO Ins, OS+TC Brd, PVC Jkt, CM

...

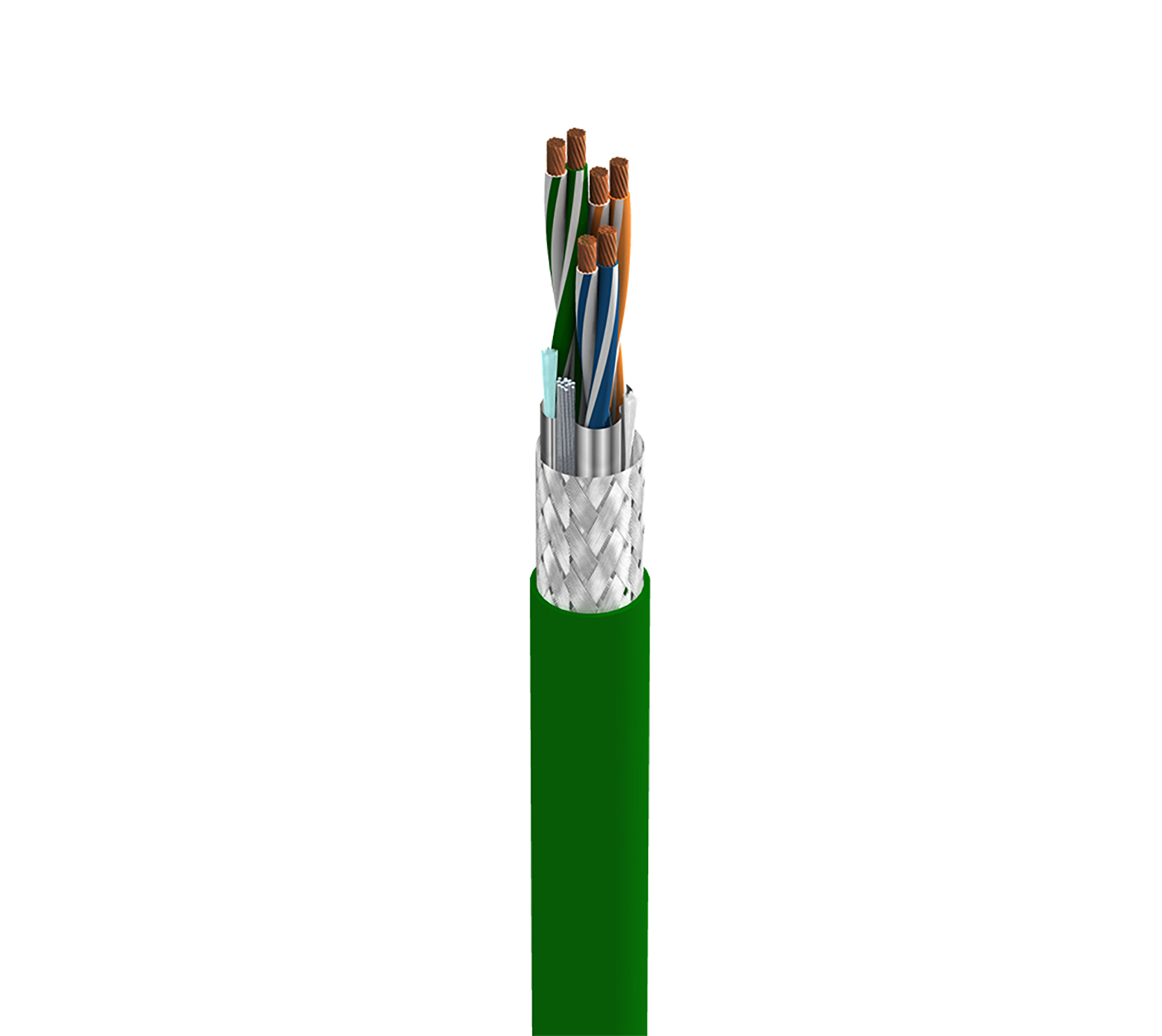

MachFlex™ for High Flex, 3 Pair 24AWG (41x40) Bare Copper, PO Insulation, Overall Beldfoil®+Tinned Copper Braid(85%) Shield, PVC Outer Jacket, CM
English
Request Quote
Share
Request Sample Get Product Alerts

Specifications
Report An Error
Product Overview

Suitable Applications

Flex Data, RS232, RS485

Construction Details
Conductor
Element No. of Elements Size Stranding Material
Pair(s) 3 24 AWG 41x40 BC - Bare Copper
Insulation
Element Material Nom. Thickness Nom. Insulation Diameter Color Code
Conductor(s) PE - Polyethylene (Foam) 0.0115 in (0.292 mm) 0.0555 in (1.41 mm) White & Blue, White & Orange, White & Green
Outer Shield
Shield Type Material Coverage Drainwire Type
Tape Bi-Laminate (Alum+Poly) 100% 24 AWG (41x40) TC
Braid Tinned Copper (TC) 85%
Inner Jacket
Material Nom. Thickness Nom. Diameter
PVC - Polyvinyl Chloride 0.0275 in (0.699 mm) 0.275 in (6.99 mm)
Outer Jacket
Material Nom. Thickness Nom. Diameter Ripcord
PVC - Polyvinyl Chloride 0.045 in (1.1 mm) 0.336 in Yes

Overall Cable Diameter (Nominal)

0.336

Electrical Characteristics
Electricals
Nom. Conductor DCR Nom. Capacitance Cond-to-Cond Nom. Capacitance Cond-to-Other (Conds + Shield) Nom. Characteristic Impedence Nom. Velocity of Prop. Max. Current
28.8 Ohm/1000ft 15 pF/ft (49 pF/m) 27 pF/ft (89 pF/m) 53 Ohm 72% 12.6 Amps per Conductor at 30ºC
Voltage
UL Voltage Rating
300 V
Mechanical Characteristics
Temperature
UL Temperature Operating
60°C -20°C to +60°C
Bend Radius
Stationary Min. Installation Min.
3.36 in (85.3 mm) 3.36 in

Max. Pull Tension

83 lbs (38 kg)

Bulk Cable Weight

60 lbs/1000ft

Standards and Compliance

Environmental Suitability

Indoor/Outdoor, Indoor, Outdoor, Oil Resistance, Oil Resistance

Flammability / Reaction to Fire

UL1685 UL Loading

NEC / UL Compliance

Article 800, CM

CEC / C(UL) Compliance

CM

European Directive Compliance

EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)

APAC Compliance

China RoHS II (GB/T 26572-2011)

Other Standard Compliance(s)

RS Type: 232/485

Product Notes

Notes

1 million flex cycles based on proper installation techniques in a C-track cable guide.

History

Update and Revision

Revision Number: 0.402 Revision Date: 12-22-2023

Show All Specifications
Hide Specifications
Part Numbers
Item # Color Putup Type Length UPC Footnote
7202A X4P500 Green X4P Reel 500 ft 612825182726 C
7202A X4P1000 Green X4P Reel 1,000 ft 612825182719 C
