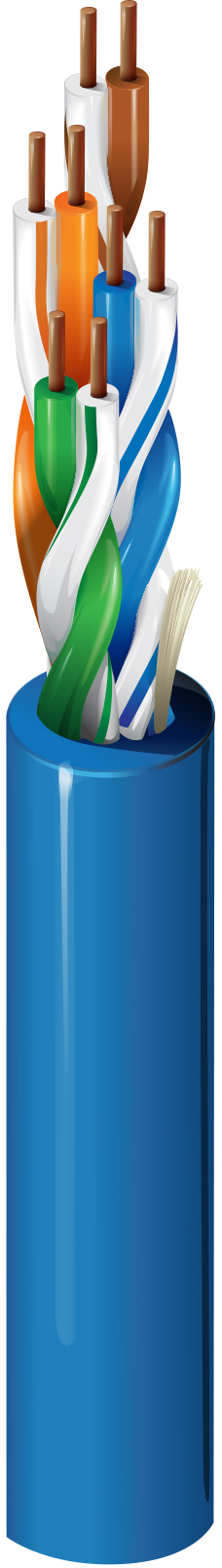

CAT5e+ Horizontal, 4pr, UTP, LSZH Jkt
Regions Available: Global
|
Suitable Applications |
Premise Horizontal Cable, Gigabit Ethernet, 100BaseTX, 100BaseVG ANYLAN, 155ATM, 622ATM, NTSC/PAL Component or Composite Video, AES/EBU, Digital Video, RS-422 |
|---|
| AWG | Stranding | Material | No. of Pairs |
|---|---|---|---|
| 24 | Solid | BC - Bare Copper | 4 |
|
Conductor Count |
8 |
|---|---|
|
Total Number of Pairs |
4 |
| Material |
|---|
| PE - Polyethylene |
|
Bonded-Pair |
N/A |
|---|
| Number | Color |
|---|---|
| 1 | White/Blue Stripe & Blue |
| 2 | White/Orange Stripe & Orange |
| 3 | White/Green Stripe & Green |
| 4 | White/Brown Stripe & Brown |
| Material | Material Trade Name | Nominal Diameter | Ripcord |
|---|---|---|---|
| LSZH - Low Smoke Zero Halogen (Flame Retardant) | Haloarrest® | 0.193 in | Yes |
| Max. Conductor DCR | Max. DCR Unbalance |
|---|---|
| 89 Ohm/km | 3 % |
| Max. Capacitance Unbalance | Nom.Mutual Capacitance |
|---|---|
| 330 pF/100m | 15 pF/ft |
| Frequency [MHz] | Max. Delay | Max. Delay Skew | Nominal Velocity of Propagation (VP) [%] |
|---|---|---|---|
| 100 MHz | 537.6 ns/100m | 25 ns/100m | 70% |
| Frequency [MHz] | Max. Insertion Loss (Attenuation) | Min. NEXT [dB] | Min. PSNEXT [dB] | Min. ACR [dB] | Min. PSACR [dB] | Min. ACRF (ELFEXT) [dB] | Min. PSACRF (PSELFEXT) [dB] | Min. RL (Return Loss) [dB] | Max./Min. Input Impedance (unFitted) | Max./Min. Fitted Impedance |
|---|---|---|---|---|---|---|---|---|---|---|
| 1 MHz | 2.0 dB/100m | 70.3 dB | 69.3 dB | 68.3 dB | 67.3 dB | 67.8 dB | 65.8 dB | 20.0 dB | 100 ± 15 Ohm | 100 ± 15 Ohm |
| 4 MHz | 4.0 dB/100m | 61.3 dB | 60.3 dB | 57.3 dB | 56.3 dB | 55.8 dB | 53.8 dB | 23.0 dB | 100 ± 15 Ohm | 100 ± 15 Ohm |
| 8 MHz | 5.7 dB/100m | 56.8 dB | 55.8 dB | 51.1 dB | 50.1 dB | 49.7 dB | 47.7 dB | 24.5 dB | 100 ± 15 Ohm | 100 ± 15 Ohm |
| 10 MHz | 6.4 dB/100m | 55.3 dB | 54.3 dB | 48.9 dB | 47.9 dB | 47.8 dB | 45.8 dB | 25.0 dB | 100 ± 15 Ohm | 100 ± 15 Ohm |
| 16 MHz | 8.1 dB/100m | 52.2 dB | 51.2 dB | 44.1 dB | 43.1 dB | 43.7 dB | 41.7 dB | 25.0 dB | 100 ± 15 Ohm | 100 ± 15 Ohm |
| 20 MHz | 9.1 dB/100m | 50.8 dB | 49.8 dB | 41.7 dB | 40.7 dB | 41.8 dB | 39.8 dB | 25.0 dB | 100 ± 15 Ohm | 100 ± 15 Ohm |
| 25 MHz | 10.2 dB/100m | 49.3 dB | 48.3 dB | 39.1 dB | 38.1 dB | 39.8 dB | 37.8 dB | 24.3 dB | 100 ± 15 Ohm | 100 ± 15 Ohm |
| 31.25 MHz | 11.4 dB/100m | 47.9 dB | 46.9 dB | 36.4 dB | 35.4 dB | 37.9 dB | 35.9 dB | 23.6 dB | 100 ± 15 Ohm | 100 ± 15 Ohm |
| 62.5 MHz | 16.4 dB/100m | 43.4 dB | 42.4 dB | 27.0 dB | 26.0 dB | 31.9 dB | 29.9 dB | 21.5 dB | 100 ± 15 Ohm | 100 ± 15 Ohm |
| 100 MHz | 21.0 dB/100m | 40.3 dB | 39.3 dB | 19.3 dB | 18.3 dB | 27.8 dB | 25.8 dB | 20.1 dB | 100 ± 15 Ohm | 100 ± 15 Ohm |
| 155 MHz | 26.6 dB/100m | 37.4 dB | 36.4 dB | 10.9 dB | 9.9 dB | 24.0 dB | 22.0 dB | 18.8 dB | 100 ± 22 Ohm | 100 ± 15 Ohm |
| 200 MHz | 30.5 dB/100m | 35.8 dB | 34.8 dB | 5.3 dB | 4.3 dB | 21.8 dB | 19.8 dB | 18.0 dB | 100 ± 22 Ohm | 100 ± 15 Ohm |
| 250 MHz | 34.4 dB/100m | 34.3 dB | 33.3 dB | -0.1 dB | -1.1 dB | 19.8 dB | 17.8 dB | 17.3 dB | 100 ± 32 Ohm | 100 ± 15 Ohm |
| 300 MHz | 38.0 dB/100m | 33.1 dB | 32.1 dB | 1.9 dB | 18.3 dB | 16.3 dB | 14.4 dB | 100 ± 32 Ohm | 100 ± 15 Ohm | |
| 350 MHz | 41.4 dB/100m | 32.1 dB | 31.1 dB | 16.9 dB | 14.9 dB | 13.8 dB | 100 ± 32 Ohm | 100 ± 15 Ohm | ||
| 400 MHz | 44.6 dB/100m | 31.3 dB | 30.3 dB | 15.8 dB | 13.8 dB | 13.3 dB | 100 ± 32 Ohm | 100 ± 15 Ohm | ||
| 450 MHz | 47.7 dB/100m | 30.5 dB | 29.5 dB | 14.7 dB | 12.7 dB | 12.8 dB | 100 ± 32 Ohm | 100 ± 15 Ohm |
| UL Voltage Rating |
|---|
| 300 V RMS |
|
Installation Temperature Range |
+5°C To +50°C |
|---|---|
|
Non-UL Temp Rating |
+75°C |
|
Storage Temperature Range |
-20°C To +75°C |
|
Operating Temperature Range |
-20°C To +75°C |
|
Bulk Cable Weight |
25 lbs/1000ft |
|---|---|
|
Max. Pull Tension |
25 lbs |
|
Min. Bend Radius During Installation |
2.0 in |
|
Min. Bend Radius/Minor Axis |
1.0 in |
|
ISO/IEC Compliance |
11801 ed 2.2 (2011) Class D |
|---|---|
|
CPR Euroclass |
Eca |
|
Data Category |
Category 5e |
|
ANSI Compliance |
S-90-661-2012 Category 5e, ANSI/NEMA WC-63.1 Category 5e |
|
TIA/EIA Compliance |
ANSI/TIA-568-C.2 Category 5e |
|
IEEE Compliance |
IEEE 802.3bt Type 1, Type 2, Type 3 |
|
Environmental Space |
Indoor - Euroclass Eca |
|---|---|
|
EU Directive 2000/53/EC (ELV) |
Yes |
|
EU Directive 2002/96/EC (WEEE) |
Yes |
|
EU Directive 2003/11/EC (BFR) |
Yes |
|
EU Directive 2003/96/EC (BFR) |
Yes |
|
EU Directive 2011/65/EU (RoHS 2) |
Yes |
|
EU Directive 2012/19/EU (WEEE) |
Yes |
|
EU Directive 2015/863/EU (RoHS 2 amendment) |
Yes |
|
EU Directive Compliance |
Yes |
|
EU CE Mark |
No |
|
EU REACH SVHC Compliance (yyyy-mm-dd) |
2017-07-10 |
|
MII Order #39 (China RoHS) |
Yes |
|
Suitability - Aerial |
No |
|---|---|
|
Suitability - Burial |
No |
|
Suitability - Hazardous Locations |
No |
|
Suitability - Indoor |
Yes |
|
Suitability - Non-Halogenated |
Yes |
|
Suitability - Oil Resistance |
No |
|
Suitability - Outdoor |
No |
|
Suitability - Sunlight Resistance |
No |
|
IEC Flammability |
IEC 60332-1-2 |
|---|---|
|
UL voltage rating |
300 V RMS |
|
Plenum (Y/N) |
No |
|---|---|
|
Plenum Number |
1213 |
|
Non-Plenum Number |
1212 |
|---|
|
Notes |
Electrical values are expected performance based on cable testing and representative performance within a typical Belden system. Values above 350 MHz are for Engineering Information Only. Print Includes Descending Footage/Meter Markings. |
|---|
|
Update and Revision |
Revision Number: 0.516 Revision Date: 04-29-2024 |
|---|
| Item # | Color | Put-Up Type | Length | UPC/EAN |
|---|---|---|---|---|
| 1224.08U305 | Gray | UnReel | 305 m | 8719605000682 |
| 1224.07U305 | Purple | UnReel | 305 m | 8719605000675 |
| 1224 007U1000 | Purple | UnReel | 1,000 ft | 612825061526 |
| 1224.09U305 | White | UnReel | 305 m | 8719605000705 |
| 1224.09500 | White | Reel | 500 m | 8719605000699 |
