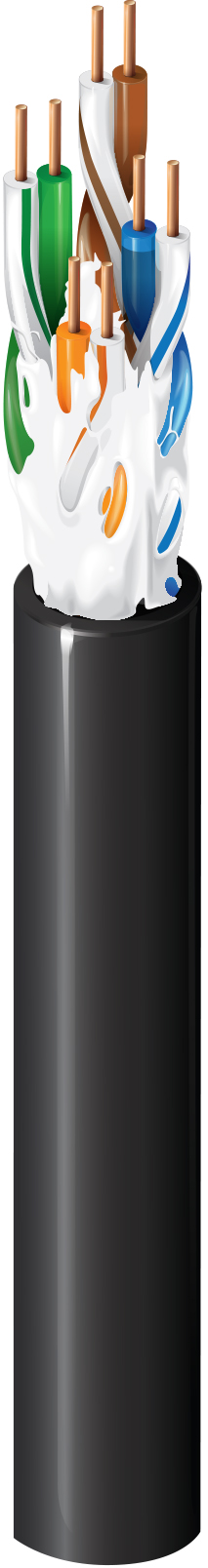

Category 5e Indoor/Outdoor OSP/CM-LS LSZH Cable
|
Suitable Applications |
OSP-Outdoor, CM-LS, Low Smoke, Indoor/Outdoor, Gigabit Ethernet, 100BaseTX, 100BaseVG ANYLAN, 155ATM, 622ATM, NTSC/PAL Component or Composite Video, AES/EBU, Digital Video, RS-422 |
|---|---|
|
Patent |
This product has one or more applicable patents. More information on patents can be found at https://www.belden.com/patents. |
| AWG | Stranding | Material | No. of Pairs |
|---|---|---|---|
| 24 | Solid | BC - Bare Copper | 4 |
|
Conductor Count |
8 |
|---|---|
|
Total Number of Pairs |
4 |
| Material |
|---|
| PO - Polyolefin |
|
Bonded-Pair |
N/A |
|---|
| Number | Color |
|---|---|
| 1 | White/Blue Stripe & Blue |
| 2 | White/Orange Stripe & Orange |
| 3 | White/Green Stripe & Green |
| 4 | White/Brown Stripe & Brown |
|
Water Penetration |
GR 421‐CORE para. 4.3.5.1, ANSI/ICEA S‐107‐704 para. 8.2.1, ANSI/ICEA S-99-689 |
|---|
| Material | Material Trade Name | Nominal Diameter | Ripcord |
|---|---|---|---|
| LSZH - Low Smoke Zero Halogen (Flame Retardant) | Haloarrest® | 0.251 in | No |
| Max. Conductor DCR | Max. DCR Unbalance |
|---|---|
| 93.8 Ohm/km | 5.0 % |
| Max. Capacitance Unbalance | Nom.Mutual Capacitance |
|---|---|
| 330 pF/100m | 15 pF/ft |
| Frequency [MHz] | Max. Delay | Max. Delay Skew | Nominal Velocity of Propagation (VP) [%] |
|---|---|---|---|
| 100 MHz | 537.6 ns/100m | 45 ns/100m | 68% |
| Frequency [MHz] | Max. Insertion Loss (Attenuation) | Min. NEXT [dB] | Min. PSNEXT [dB] | Min. ACR [dB] | Min. PSACR [dB] | Min. ACRF (ELFEXT) [dB] | Min. PSACRF (PSELFEXT) [dB] | Min. RL (Return Loss) [dB] | Max./Min. Input Impedance (unFitted) | Max./Min. Fitted Impedance |
|---|---|---|---|---|---|---|---|---|---|---|
| 1 MHz | 2.0 dB/100m | 65.3 dB | 62.3 dB | 63.3 dB | 60.3 dB | 63.8 dB | 60.8 dB | 20.0 dB | 100 ± 15 Ohm | 100 ± 15 Ohm |
| 4 MHz | 4.1 dB/100m | 56.3 dB | 53.3 dB | 52.2 dB | 49.2 dB | 51.8 dB | 48.8 dB | 23.0 dB | 100 ± 15 Ohm | 100 ± 15 Ohm |
| 8 MHz | 5.8 dB/100m | 51.8 dB | 48.8 dB | 46.0 dB | 43.0 dB | 45.7 dB | 42.7 dB | 24.5 dB | 100 ± 15 Ohm | 100 ± 15 Ohm |
| 10 MHz | 6.5 dB/100m | 50.3 dB | 47.3 dB | 43.8 dB | 40.8 dB | 43.8 dB | 40.8 dB | 25.0 dB | 100 ± 15 Ohm | 100 ± 15 Ohm |
| 16 MHz | 8.2 dB/100m | 47.2 dB | 44.2 dB | 39.0 dB | 36.0 dB | 39.7 dB | 36.7 dB | 25.0 dB | 100 ± 15 Ohm | 100 ± 15 Ohm |
| 20 MHz | 9.3 dB/100m | 45.8 dB | 42.8 dB | 36.5 dB | 33.5 dB | 37.8 dB | 34.8 dB | 25.0 dB | 100 ± 15 Ohm | 100 ± 15 Ohm |
| 25 MHz | 10.4 dB/100m | 44.3 dB | 41.3 dB | 33.9 dB | 30.9 dB | 35.8 dB | 32.8 dB | 24.3 dB | 100 ± 15 Ohm | 100 ± 15 Ohm |
| 31.25 MHz | 11.7 dB/100m | 42.9 dB | 39.9 dB | 31.2 dB | 28.2 dB | 33.9 dB | 30.9 dB | 23.6 dB | 100 ± 15 Ohm | 100 ± 15 Ohm |
| 62.5 MHz | 17.0 dB/100m | 38.4 dB | 35.4 dB | 21.4 dB | 18.4 dB | 27.9 dB | 24.9 dB | 21.5 dB | 100 ± 15 Ohm | 100 ± 15 Ohm |
| 100 MHz | 22.0 dB/100m | 35.3 dB | 32.3 dB | 13.3 dB | 10.3 dB | 23.8 dB | 20.8 dB | 20.1 dB | 100 ± 15 Ohm | 100 ± 15 Ohm |
| 155 MHz | 28.1 dB/100m | 32.4 dB | 29.4 dB | 4.4 dB | 1.4 dB | 20.0 dB | 17.0 dB | 18.8 dB | ||
| 200 MHz | 32.4 dB/100m | 30.8 dB | 27.8 dB | 17.8 dB | 14.8 dB | 18.0 dB |
| UL Voltage Rating |
|---|
| 300 V RMS |
|
Installation Temperature Range |
-20°C To +75°C |
|---|---|
|
UL Temp Rating |
75°C |
|
Storage Temperature Range |
-40°C To +75°C |
|
Operating Temperature Range |
-40°C To +75°C |
|
Cold Bend Test |
-20°C Compliance per UL 1581 |
|---|---|
|
Bulk Cable Weight |
35 lbs/1000ft |
|
Max. Pull Tension |
25 lbs |
|
Min. Bend Radius During Installation |
2.5 in |
|
Min. Bend Radius/Minor Axis |
1.0 in |
|
NEC/(UL) Compliance |
CM-LS |
|---|---|
|
CEC/C(UL) Compliance |
CM-LS |
|
ISO/IEC Compliance |
11801 ed 2.2 (2011) Class D |
|
Data Category |
Category 5e |
|
ANSI Compliance |
S-90-661-2012 Category 5e, ANSI/NEMA WC-63.1 Category 5e |
|
TIA/EIA Compliance |
ANSI/TIA-568-C.2 Category 5e |
|
IEEE Compliance |
IEEE 802.3bt Type 1, Type 2, Type 3 |
|
Environmental Space |
Indoor/Outdoor |
|---|---|
|
EU Directive 2000/53/EC (ELV) |
Yes |
|
EU Directive 2003/96/EC (BFR) |
Yes |
|
EU Directive 2011/65/EU (RoHS 2) |
Yes |
|
EU Directive 2012/19/EU (WEEE) |
Yes |
|
EU Directive 2015/863/EU (RoHS 2 amendment) |
Yes |
|
EU Directive Compliance |
Yes |
|
EU CE Mark |
Yes |
|
EU REACH SVHC Compliance (yyyy-mm-dd) |
2017-07-10 |
|
Suitability - Aerial |
Yes - When supported by messenger wire |
|---|---|
|
Suitability - Burial |
Yes - Engineered burial only |
|
Suitability - Hazardous Locations |
No |
|
Suitability - Indoor |
Yes |
|
Suitability - Non-Halogenated |
Yes |
|
Suitability - Oil Resistance |
No |
|
Suitability - Outdoor |
Yes |
|
Suitability - Sunlight Resistance |
Yes |
|
UL Flammability |
UL 1685 (UL Loading-Limited Smoke) |
|---|---|
|
UL voltage rating |
300 V RMS |
|
Plenum (Y/N) |
No |
|---|
|
Notes |
Electrical values are expected performance based on cable testing and representative performance within a typical Belden system. Values over 100 MHz are for Engineering Information Only. Print Includes Descending Footage/Meter Markings from Max. Put-Up Length to 0. Suitable for use in Buildings in Wet Locations. Not Suitable for Direct Burial. Fully Water Blocked and Sunlight Resistant (Black Jacket Only). |
|---|
|
Update and Revision |
Revision Number: 0.323 Revision Date: 04-29-2024 |
|---|
| Item # | Color | UPC |
|---|---|---|
| 2137A 0101000 | Black | 612825321255 |
