7934A

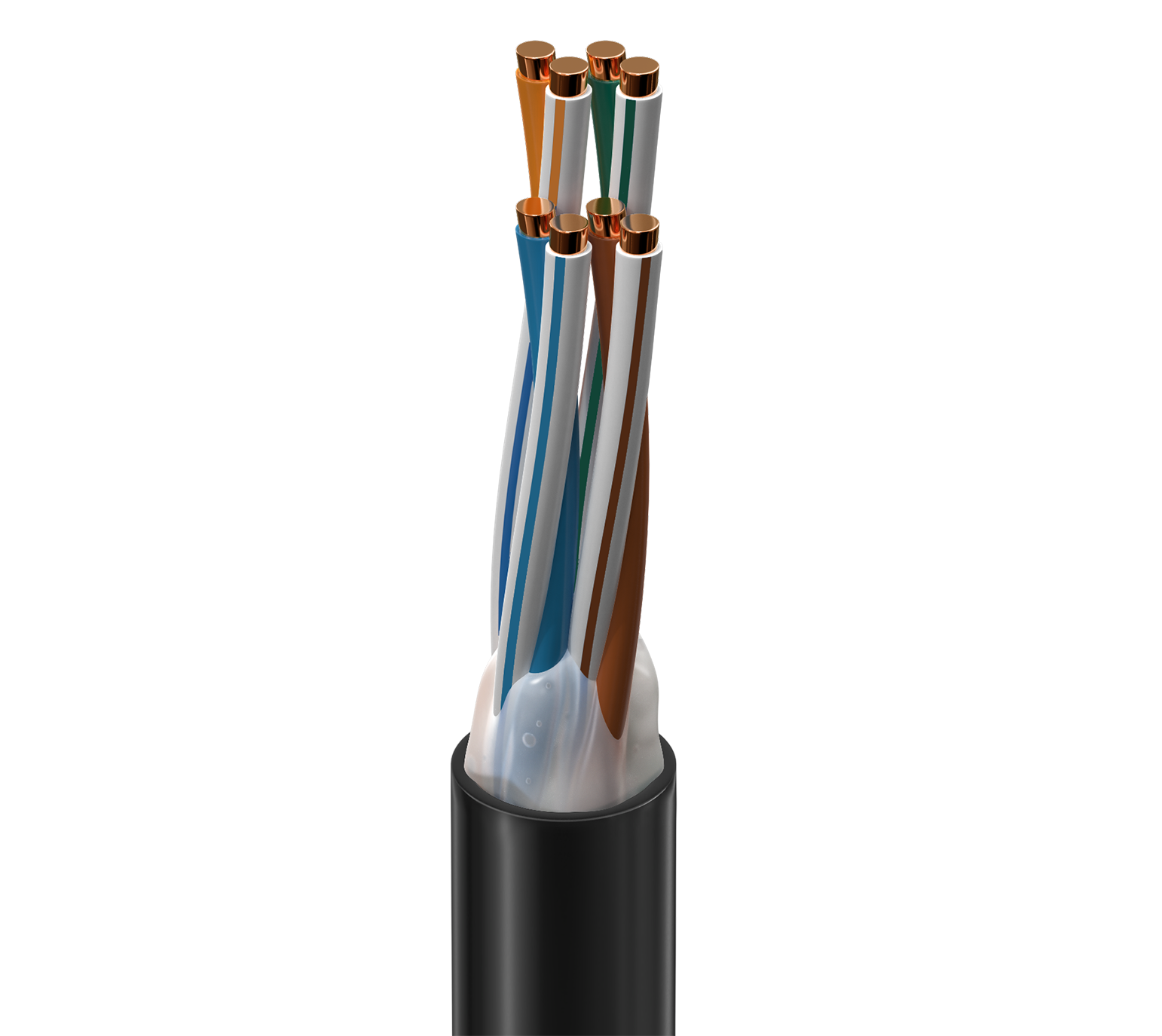

DataTuff® Cat 5e, 4 Bonded-Pr #24 Sol BC, PO Ins, PE Jkt, OSP BURIAL

...
Industrial Ethernet Cat 5e, 4 Bonded-Pair 24AWG (Solid) Bare Copper, PO Insulation, PE Outer Jacket, Polymer Gel Waterblocked OSP BURIAL

Regions Available: Global
English
Request Quote
Share
Request Sample Get Product Alerts

Specifications
Report An Error
Product Overview

Suitable Applications

burial, harsh environment, IIoT, factory or process automation, IP cameras and devices, data communication, etc.

Patent

This product has one or more applicable patents. More information on patents can be found at https://www.belden.com/patents.

Construction Details
Conductor
Element Size Stranding Material No. of Pairs No. of Elements
Pair(s) 24 AWG Solid BC - Bare Copper 4 4
Insulation
Material Color Code
PO - Polyolefin White/Blue Stripe & Blue, White/Orange Stripe & Orange, White/Green Stripe & Green, White/Brown Stripe & Brown

Bonded-Pair

Yes

Waterblocking

Gel Filled

Outer Jacket
Material Nom. Diameter Ripcord
PE - Polyethylene 0.230 in (5.84 mm) No

Overall Cable Diameter (Nominal)

0.230 in (5.84 mm)

Electrical Characteristics
Electricals
Max. Conductor DCR Max. Capacitance Unbalance
93.8 Ohm/km (28.6 Ohm/1000ft) 150 pF/ft
Delay
Max. Delay Skew Nom. Velocity of Prop.
45 ns/100m 70%
High Frequency
Frequency [MHz] Max. Insertion Loss (Attenuation) Min. NEXT [dB] Min. PSNEXT [dB] Min. ACR [dB] Min. PSACR [dB] Min. ACRF (ELFEXT) [dB] Min. PSACRF (PSELFEXT) [dB] Min. RL (Return Loss) [dB] Min. SRL (Structural Return Loss) [dB] Max./Min. Input Impedance (unFitted) [Ohm] Max./Min. Fitted Impedance [Ohm]
1 2.0 dB/100m 65.3 62.3 63 60 63.8 60.8 20 23 100 ± 15 102.5 ± 7.5
4 4.1 dB/100m 56.3 53.3 51 49 51.7 48.7 23.6 23 100 ± 15 102.5 ± 7.5
8 5.8 dB/100m 51.8 48.8 46 43 45.7 42.7 25.4 24.5 100 ± 15 101 ± 6
10 6.5 dB/100m 50.3 47.3 43 41 43.8 40.8 26 25 100 ± 15 101 ± 6
16 8.2 dB/100m 47.3 44.3 39 36 39.7 36.7 26 25 100 ± 15 101 ± 6
20 9.3 dB/100m 45.8 42.8 36.5 33.5 37.7 34.7 26 25 100 ± 15 101 ± 6
25 10.4 dB/100m 44.3 41.3 33.9 30.9 35.8 32.8 25.5 24.3 100 ± 15 101 ± 6
31.25 11.7 dB/100m 42.9 39.9 31 28 33.9 30.9 25 23.6 100 ± 15 101 ± 6
62.5 17.0 dB/100m 38.4 35.4 22 19 27.8 24.8 23.5 21.5 100 ± 15 101 ± 6
100 22.0 dB/100m 35.3 32.3 14 11 23.8 20.8 22.5 20.1 100 ± 15
155 28.1 dB/100m 32.5 29.5 4.4 1.4 19.9 16.9 15.8 100 ± 25
200 32 dB/100m 30.8 27.8 4 1 17.7 14.7 15 100 ± 25
Voltage
Voltage Rating
300 V
Mechanical Characteristics
Temperature
Operating Installation Storage
-40°C To +75°C -25°C To +75°C -40°C To +85°C
Bend Radius
Stationary Min.
1 in (25 mm)

Max. Pull Tension

40 lbs (18 kg)

Bulk Cable Weight

22 lbs/1000ft

Standards and Compliance

Environmental Suitability

Outdoor, Outdoor, Non-Halogenated, Sunlight Resistance, Oil Resistance, Burial - Engineered burial only

CPR Compliance

CPR Euroclass: Fca

Data Category

Category 5e

TIA/EIA Compliance

ANSI/TIA-568.2-D Category 5e

Third Party Performance Verification

Category 5e

ISO/IEC Compliance

ISO/IEC 11801-1, IEC 61156-5

European Directive Compliance

EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE), REACH: 2020-01-16

APAC Compliance

China RoHS II (GB/T 26572-2011)

Product Notes

Notes

EtherNet IP is a trademark of ControlNet International Ltd. under license by DeviceNet Vendor Association, Inc. Operating Temperature subject to length de-rating. Cable not guaranteed to meet TIA 568.2 specification for delay above lengths of 90m. Fully Water Blocked. Suitable for burial or use in Buildings in Wet Locations. Not recommended for Direct Burial applications without additional crush and impact protection. Additional crush and impact protection would include cable armoring, installation in conduit or installation with over top barriers per Belden Technical Bulletin T/8-6. Not intended for burial in areas where the ground temperature exceeds 60C for long periods of time.

History

Update and Revision

Revision Number: 0.667 Revision Date: 03-31-2025

Show All Specifications
Hide Specifications
Part Numbers
Item # Color Putup Type Length UPC Footnote
7934A 0101000 Black Reel 1,000 ft 612825191674 C
