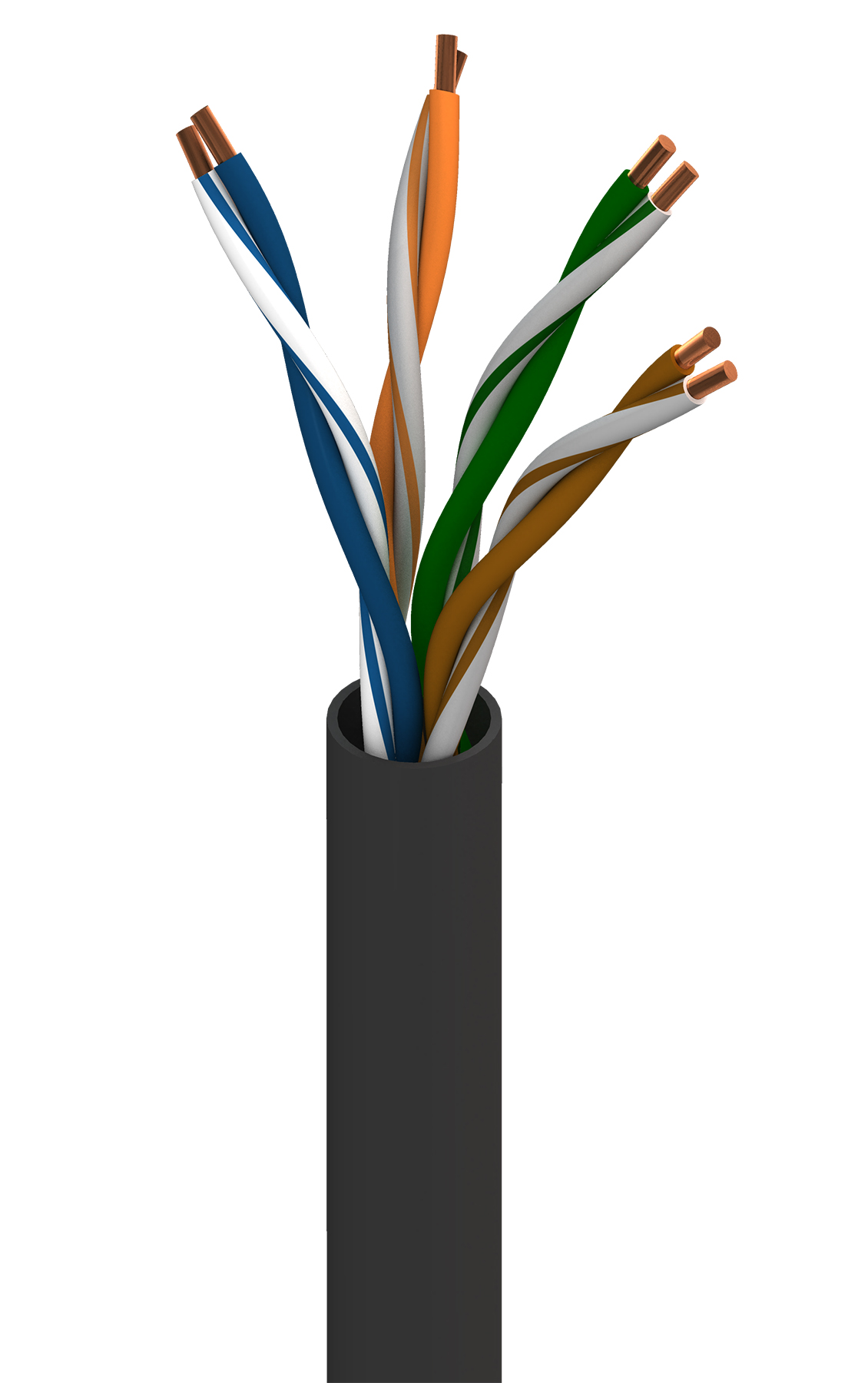

DataTuff® 5e, 4 Bonded-Pr #24 Sol BC, PO Ins, LSZH Jkt, CM SUN RES
|
Suitable Applications |
shipboard, transportation, harsh environment, IIoT, factory or process automation, IP cameras and devices, data communication, etc. |
|---|
| Element | AWG | Stranding | Material | Nominal Diameter | No. of Pairs |
|---|---|---|---|---|---|
| Pair(s) | 24 | Solid | BC - Bare Copper | 0.02 in | 4 |
|
Conductor Count |
8 |
|---|---|
|
Total Number of Pairs |
4 |
| Element | Material | Nominal Diameter | Nominal Wall Thickness |
|---|---|---|---|
| Pair(s) | PP - Polypropylene | 0.038 in | 0.009 in |
|
Bonded-Pair |
Yes |
|---|
| Number | Color |
|---|---|
| 1 | Blue & White/Blue |
| 2 | Orange & White/Orange |
| 3 | Green & White/Green |
| 4 | Brown & White/Brown |
| Material | Nominal Diameter | Ripcord |
|---|---|---|
| LSZH - Low Smoke Zero Halogen (Flame Retardant) | 0.23 in | Yes |
| Max. Conductor DCR | Max. DCR Unbalance |
|---|---|
| 29.7 Ohm/1000ft | 3 % |
| Max. Capacitance Unbalance | Nom.Mutual Capacitance |
|---|---|
| 66 pF/ft | 15 pF/ft |
| Max. Delay | Max. Delay Skew | Nominal Velocity of Propagation (VP) [%] |
|---|---|---|
| 510 ns/100m | 25 ns/100m | 70% |
| Frequency [MHz] | Max. Insertion Loss (Attenuation) | Min. NEXT [dB] | Min. PSNEXT [dB] | Min. ACR [dB] | Min. PSACR [dB] | Min. ACRF (ELFEXT) [dB] | Min. PSACRF (PSELFEXT) [dB] | Min. RL (Return Loss) [dB] | Max./Min. Input Impedance (unFitted) | Max./Min. Fitted Impedance |
|---|---|---|---|---|---|---|---|---|---|---|
| 1 MHz | 2 dB/100m | 65.3 dB | 65.3 dB | 63.3 dB | 63.3 dB | 63.8 dB | 60.8 dB | 20 dB | 100 ± 12 Ohm | 95-110 Ohm |
| 4 MHz | 4 dB/100m | 56.3 dB | 56.3 dB | 52.3 dB | 52.3 dB | 51.7 dB | 48.7 dB | 23.6 dB | 100 ± 12 Ohm | 95-110 |
| 8 MHz | 5.7 dB/100m | 51.8 dB | 51.8 dB | 46.1 dB | 46.1 dB | 45.7 dB | 42.7 dB | 25.4 dB | 100 ± 12 Ohm | 95-107 |
| 10 MHz | 6.4 dB/100m | 50.3 dB | 50.3 dB | 43.9 dB | 43.9 dB | 43.8 dB | 40.8 dB | 26 dB | 100 ± 12 Ohm | 95-107 |
| 16 MHz | 8.1 dB/100m | 47.3 dB | 47.3 dB | 39.1 dB | 39.1 dB | 39.7 dB | 36.7 dB | 26 dB | 100 ± 12 Ohm | 95-107 |
| 20 MHz | 9.2 dB/100m | 45.8 dB | 45.8 dB | 35.2 dB | 35.2 dB | 37.7 dB | 34.7 dB | 26 dB | 100 ± 12 Ohm | 95-107 |
| 25 MHz | 10.3 dB/100m | 44.3 dB | 44.3 dB | 34.1 dB | 34.1 dB | 35.8 dB | 32.8 dB | 25.5 dB | 100 ± 15 Ohm | 95-107 |
| 31.25 MHz | 11.6 dB/100m | 42.9 dB | 42.9 dB | 31.3 dB | 31.3 dB | 33.9 dB | 30.9 dB | 25 dB | 100 ± 15 Ohm | 95-107 |
| 62.5 MHz | 16.8 dB/100m | 38.4 dB | 38.4 dB | 21.6 dB | 21.6 dB | 27.8 dB | 24.8 dB | 23.5 dB | 100 ± 15 Ohm | 95-107 |
| 100 MHz | 21.7 dB/100m | 35.3 dB | 35.3 dB | 17.1 dB | 17.1 dB | 23.8 dB | 20.8 dB | 22.5 dB | 100 ± 15 Ohm | |
| 155 MHz | 27.7 dB/100m | 32.5 dB | 32.5 dB | 4.7 dB | 4.7 dB | 19.9 dB | 16.9 dB | 19 dB | 100 ± 18 Ohm | |
| 200 MHz | 32 dB/100m | 30.8 dB | 30.8 dB | 3 dB | 3 dB | 17.7 dB | 14.7 dB | 19 dB | 100 ± 20 Ohm | |
| 250 MHz | 36.4 dB/100m | 29.3 dB | 29.3 dB | 0 dB | 0 dB | 15.8 dB | 12.8 dB | 18 dB | 100 ± 20 Ohm | |
| 300 MHz | 40.5 dB/100m | 28.2 dB | 28.2 dB | 0 dB | 0 dB | 14.2 dB | 11.2 dB | 18 dB | 100 ± 20 Ohm | |
| 310 MHz | 41.3 dB/100m | 27.9 dB | 27.9 dB | 13.9 dB | 10.9 dB | 18 dB | 100 ± 20 Ohm | |||
| 350 MHz | 44.3 dB/100m | 27.2 dB | 27.2 dB | 12.9 dB | 9.9 dB | 17 dB | 100 ± 22 Ohm |
| UL Voltage Rating |
|---|
| 300 V RMS |
|
Installation Temperature Range |
+5°C To +75°C |
|---|---|
|
UL Temp Rating |
60°C |
|
Storage Temperature Range |
-10°C To +75°C |
|
Operating Temperature Range |
-10°C To +75°C |
|
UV Resistance |
Yes |
|---|---|
|
Bulk Cable Weight |
26 lbs/1000ft |
|
Max. Pull Tension |
41 lbs |
|
Min. Bend Radius During Installation |
2.3 in |
|
Min. Bend Radius/Minor Axis |
0.25 in |
|
NEC Articles |
Article 800 |
|---|---|
|
NEC/(UL) Compliance |
CM |
|
CEC/C(UL) Compliance |
CM |
|
ISO/IEC Compliance |
ISO/IEC 11801 Cat 5e |
|
CPR Euroclass |
Eca |
|
Data Category |
Category 5e |
|
TIA/EIA Compliance |
TIA-568.C.2 Category 5e, NEMA WC-63.1 |
|
Third Party Performance Verification |
UL Verifieid Category 5e |
|
Environmental Space |
Indoor/Outdoor |
|---|---|
|
EU Directive 2000/53/EC (ELV) |
Yes |
|
EU Directive 2003/11/EC (BFR) |
Yes |
|
EU Directive 2011/65/EU (RoHS 2) |
Yes |
|
EU Directive 2012/19/EU (WEEE) |
Yes |
|
EU Directive 2015/863/EU (RoHS 2 amendment) |
Yes |
|
EU Directive Compliance |
EU Directive 2003/11/EC (BFR) |
|
EU CE Mark |
Yes |
|
MII Order #39 (China RoHS) |
Yes |
|
Suitability - Indoor |
Yes |
|---|---|
|
Suitability - Non-Halogenated |
Yes |
|
Suitability - Outdoor |
Yes |
|
Suitability - Sunlight Resistance |
Yes |
|
CSA/C(UL) Flammability |
FT1 |
|---|---|
|
UL Flammability |
UL1685 Vertical Tray Flame Test |
|
IEC Flammability |
IEC 60332-1-2 |
|
UL voltage rating |
300 V RMS |
|
Plenum (Y/N) |
No |
|---|
|
Footnote |
C - CRATE REEL PUT-UP. |
|---|
|
Notes |
US Patent #'s 5, 606, 151; 5, 734, 126. EtherNet IP is a trademark of ControlNet International, Ltd. under license by Open DeviceNet Vendor Association, Inc. Operating temperatures are subject to length de-rating. Cable passes -40C Cold Bend per UL 1581. |
|---|
|
Update and Revision |
Revision Number: 0.535 Revision Date: 04-29-2024 |
|---|
| Item # | Color | Put-Up Type | Length | UPC |
|---|---|---|---|---|
| 7935A 0101000 | Black | Reel | 1,000 ft | 612825191681 |
| 7935A 0102000 | Black | Reel | 2,000 ft | 612825191698 |
