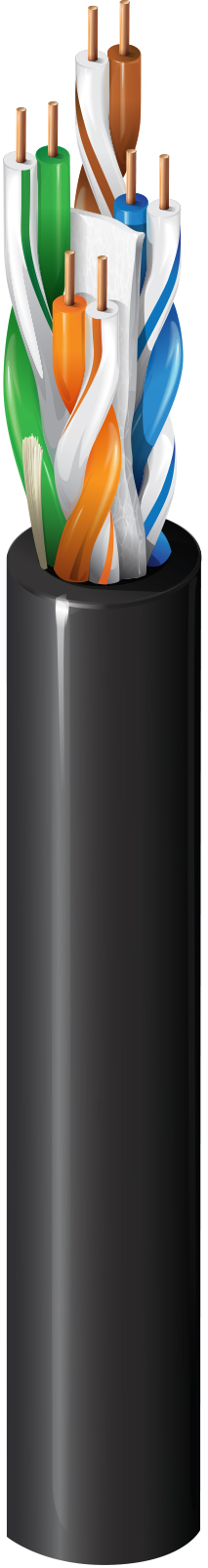

Category 6 Indoor/Outdoor Cable, 4 Pair, U/UTP, CMR/CMX
|
Suitable Applications |
Indoor/Outdoor, Premise Horizontal Cable, Ethernet 1000BASE-T, Ethernet 100BASE-TX, Ethernet 10BASE-T, PoE++, PoE+, PoE |
|---|---|
|
Patent |
This product has one or more applicable patents. More information on patents can be found at https://www.belden.com/patents. |
| Size | Stranding | Material | No. of Pairs |
|---|---|---|---|
| 23 AWG | Solid | BC - Bare Copper | 4 |
| Material | Color Code |
|---|---|
| PO - Polyolefin | White/Blue Stripe & Blue, White/Orange Stripe & Orange, White/Green Stripe & Green, White/Brown Stripe & Brown |
| Separator | Material | Nom. Diameter | Ripcord |
|---|---|---|---|
| Dielectric Tape (Patented) | PVC - Polyvinyl Chloride | 0.255 in (6.48 mm) | Yes |
|
Overall Cable Diameter (Nominal) |
0.255 in (6.48 mm) |
|---|
| Max. Conductor DCR | Max. Capacitance Unbalance |
|---|---|
| 78 Ohm/km (24 Ohm/1000ft) | 330 pF/100m |
| Frequency | Max. Delay | Max. Delay Skew | Nom. Velocity of Prop. |
|---|---|---|---|
| 100 MHz | 537.6 ns/100m | 35 ns/100m | 68% |
| Frequency [MHz] | Max. Insertion Loss (Attenuation) | Min. NEXT [dB] | Min. PSNEXT [dB] | Min. ACR [dB] | Min. PSACR [dB] | Min. ACRF (ELFEXT) [dB] | Min. PSACRF (PSELFEXT) [dB] | Min. RL (Return Loss) [dB] | Max./Min. Input Impedance (unFitted) [Ohm] | Min. TCL [dB] | Min. ELTCTL [dB] |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 | 2.0 dB/100m | 75.3 | 75.3 | 73.3 | 73.3 | 70.8 | 67.8 | 20.0 | 100 +/- 15 | 40.0 | 35.0 |
| 4 | 3.7 dB/100m | 66.3 | 66.3 | 62.5 | 62.5 | 58.8 | 55.8 | 23.0 | 100 +/- 15 | 40.0 | 23.0 |
| 8 | 5.3 dB/100m | 61.8 | 61.8 | 56.5 | 56.5 | 52.7 | 49.7 | 24.5 | 100 +/- 15 | 40.0 | 16.9 |
| 10 | 5.9 dB/100m | 60.3 | 60.3 | 54.4 | 54.4 | 50.8 | 47.8 | 25.0 | 100 +/- 15 | 40.0 | 15.0 |
| 16 | 7.4 dB/100m | 57.2 | 57.2 | 49.8 | 49.8 | 46.7 | 43.7 | 25.0 | 100 +/- 15 | 38.0 | 10.9 |
| 20 | 8.3 dB/100m | 55.8 | 55.8 | 47.4 | 47.4 | 44.8 | 41.8 | 25.0 | 100 +/- 15 | 37.0 | 9.0 |
| 25 | 9.4 dB/100m | 54.3 | 54.3 | 45.0 | 45.0 | 42.8 | 39.8 | 24.3 | 100 +/- 15 | 36.0 | 7.0 |
| 31.25 | 10.5 dB/100m | 52.9 | 52.9 | 42.4 | 42.4 | 40.9 | 37.9 | 23.6 | 100 +/- 15 | 35.1 | 5.1 |
| 62.5 | 15.1 dB/100m | 48.4 | 48.4 | 33.3 | 33.3 | 34.9 | 31.9 | 21.5 | 100 +/- 15 | 32.0 | |
| 100 | 19.3 dB/100m | 45.3 | 45.3 | 26.0 | 26.0 | 30.8 | 27.8 | 20.8 | 100 +/- 15 | 30.0 | |
| 155 | 24.5 dB/100m | 42.4 | 42.4 | 17.9 | 17.9 | 27.0 | 24.0 | 19.5 | 100 +/- 22 | 28.1 | |
| 200 | 28.2 dB/100m | 40.8 | 40.8 | 12.6 | 12.6 | 24.8 | 21.8 | 18.7 | 100 +/- 22 | 27.0 | |
| 250 | 31.8 dB/100m | 39.3 | 39.3 | 7.5 | 7.5 | 22.8 | 19.8 | 18.0 | 100 +/- 32 | 26.0 | |
| 300 | 35.2 dB/100m | 38.1 | 36.1 | 2.9 | 0.9 | 21.3 | 18.3 | 17.5 | 100 +/- 32 | 25.2 | |
| 350 | 38.4 dB/100m | 37.1 | 35.1 | 19.9 | 16.9 | 17.0 | 100 +/- 32 | 24.6 | |||
| 400 | 41.5 dB/100m | 36.3 | 34.3 | 18.8 | 15.8 | 16.6 | 100 +/- 32 | 24.0 | |||
| 450 | 44.3 dB/100m | 35.5 | 33.5 | 17.7 | 14.7 | 16.2 | 100 +/- 32 | 23.5 | |||
| 500 | 47.1 dB/100m | 34.8 | 32.8 | 16.8 | 13.8 | 15.9 | 100 +/- 32 | 23.0 | |||
| 550 | 49.7 dB/100m | 34.2 | 32.2 | 16.0 | 13.0 | 15.6 | 100 +/- 32 |
| UL Voltage Rating |
|---|
| 300 V (CMR), 300 V (CMX-Outdoor) |
| UL Temperature | Operating | Installation | Storage |
|---|---|---|---|
| 90°C | -40°C To +75°C | -20°C To +75°C | -40°C To +75°C |
| Stationary Min. | Installation Min. |
|---|---|
| 1.0 in (25 mm) | 2.75 in (69.9 mm) |
|
Max. Pull Tension |
25 lbs (11 kg) |
|---|---|
|
Bulk Cable Weight |
29 lbs/1000ft |
|
Environmental Suitability |
Indoor/Outdoor, Indoor, Outdoor, Sunlight Resistance, Aerial - When supported by messenger wire |
|---|---|
|
Sustainability |
Product Lens™, Environmental Product Declaration (EPD) Available |
|
Flammability / Reaction to Fire |
UL 1666 Riser, FT4, IEEE 1202 Vertical Tray Flame Test |
|
CPR Compliance |
CPR Euroclass: Fca; CPR UKCA Class: Fca |
|
NEC / UL Compliance |
Article 800, CMR, CMX-Outdoor, CMG |
|
CEC / C(UL) Compliance |
CMX-Outdoor;CMG |
|
ICEA Compliance |
S-116-732, S-56-434, S-99-689, S-100-685 |
|
IEEE Compliance |
IEEE 802.3bt Type 1, Type 2, Type 3, Type 4 |
|
NEMA Compliance |
ANSI/NEMA WC-66 |
|
Data Category |
Category 6 |
|
TIA/EIA Compliance |
ANSI/TIA-568.2-D Category 6 |
|
Third Party Performance Verification |
Category 6 |
|
ISO/IEC Compliance |
ISO/IEC 11801-1, IEC 61156-5 |
|
CENELEC Compliance |
Segregation class according EN50174-2 = a |
|
European Directive Compliance |
EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE), REACH: 2020-01-16 |
|
UK Regulation Compliance |
UKCA Mark |
|
APAC Compliance |
China RoHS II (GB/T 26572-2011) |
|
Plenum Number |
2413 |
|
Non-Plenum Number |
2412 |
|
Notes |
Electrical values are expected performance based on cable testing and representative performance within a typical Belden system. Values above 350 MHz are for Engineering Information Only. Print Includes Descending Footage/Meter Markings from Max. Put-Up Length to 0. |
|---|
|
Update and Revision |
Revision Number: 0.421 Revision Date: 04-29-2024 |
|---|
| Item # | Color | UPC |
|---|---|---|
| 2146A 0101000 | Black | 612825062264 |
