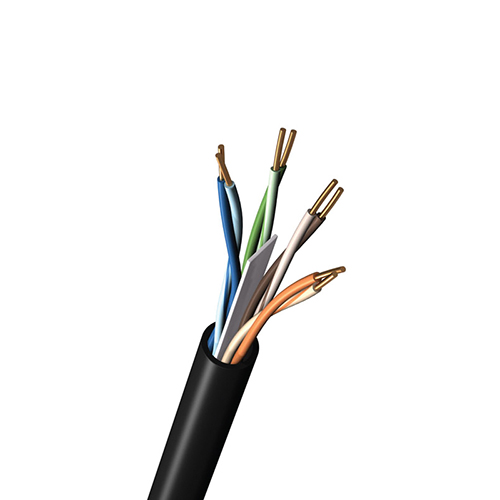

DataTuff® 6, 4 Bonded-Pr #23 Sol BC, PO Ins, LSZH Jkt, CMG-ST1, FT4
|
Suitable Applications |
shipboard, transportation, harsh environment, IIoT, factory or process automation, IP cameras and devices, data communication, etc. |
|---|---|
|
Patent |
This product has one or more applicable patents. More information on patents can be found at https://www.belden.com/patents. |
| Element | AWG | Stranding | Material | No. of Pairs |
|---|---|---|---|---|
| Pair(s) | 23 | Solid | BC - Bare Copper | 4 |
|
Conductor Count |
8 |
|---|---|
|
Total Number of Pairs |
4 |
| Element | Material | Nominal Diameter | Nominal Wall Thickness |
|---|---|---|---|
| Pair(s) | PO - Polyolefin | 0.045 in | 0.010 in |
|
Bonded-Pair |
Yes |
|---|
| Number | Color |
|---|---|
| 1 | Blue & White/Blue |
| 2 | Orange & White/Orange |
| 3 | Green & White/Green |
| 4 | Brown & White/Brown |
| Material | Material Trade Name | Nominal Diameter |
|---|---|---|
| LSZH - Low Smoke Zero Halogen (Flame Retardant) | Haloarrest® | 0.328 in |
| Max. Conductor DCR | Max. DCR Unbalance |
|---|---|
| 25 Ohm/1000ft | 5.0 % |
| Max. Capacitance Unbalance | Nom.Mutual Capacitance |
|---|---|
| 330 pF/ft | 15 pF/ft |
| Max. Delay | Max. Delay Skew | Nominal Velocity of Propagation (VP) [%] |
|---|---|---|
| 537 ns/100m | 45 ns/100m | 72% |
| Frequency [MHz] | Max. Insertion Loss (Attenuation) | Min. NEXT [dB] | Min. PSNEXT [dB] | Min. ACR [dB] | Min. PSACR [dB] | Min. ACRF (ELFEXT) [dB] | Min. PSACRF (PSELFEXT) [dB] | Min. RL (Return Loss) [dB] | Max./Min. Input Impedance (unFitted) |
|---|---|---|---|---|---|---|---|---|---|
| 1 MHz | 2 dB/100m | 74.3 dB | 72.3 dB | 72.3 dB | 70.3 dB | 67.8 dB | 64.8 dB | 21 dB | 100 ± 15 Ohm |
| 4 MHz | 3.8 dB/100m | 65.3 dB | 63.3 dB | 61.5 dB | 59.5 dB | 55.8 dB | 52.7 dB | 24 dB | 100 ± 15 Ohm |
| 8 MHz | 5.3 dB/100m | 60.8 dB | 58.8 dB | 55.4 dB | 53.4 dB | 49.7 dB | 46.7 dB | 25.5 dB | 100 ± 15 Ohm |
| 10 MHz | 6 dB/100m | 59.3 dB | 57.3 dB | 53.3 dB | 51.3 dB | 47.8 dB | 44.8 dB | 26 dB | 100 ± 15 Ohm |
| 16 MHz | 7.6 dB/100m | 56.2 dB | 54.3 dB | 48.7 dB | 46.7 dB | 43.7 dB | 40.7 dB | 26 dB | 100 ± 15 Ohm |
| 20 MHz | 8.5 dB/100m | 54.8 dB | 52.8 dB | 46.3 dB | 44.3 dB | 41.8 dB | 38.8 dB | 26 dB | 100 ± 15 Ohm |
| 25 MHz | 9.5 dB/100m | 53.3 dB | 51.3 dB | 43.8 dB | 41.8 dB | 39.8 dB | 36.8 dB | 25.3 dB | 100 ± 15 Ohm |
| 31.25 MHz | 10.7 dB/100m | 51.9 dB | 49.9 dB | 41.2 dB | 39.2 dB | 37.9 dB | 34.9 dB | 24.6 dB | 100 ± 15 Ohm |
| 62.5 MHz | 15.4 dB/100m | 47.4 dB | 45.4 dB | 32 dB | 30 dB | 31.9 dB | 28.9 dB | 22.5 dB | 100 ± 15 Ohm |
| 100 MHz | 19.8 dB/100m | 44.3 dB | 42.3 dB | 24.5 dB | 22.5 dB | 27.8 dB | 24.8 dB | 21.1 dB | 100 ± 15 Ohm |
| 155 MHz | 25.2 dB/100m | 41.5 dB | 39.5 dB | 16.3 dB | 14.3 dB | 23.9 dB | 20.9 dB | 19.8 dB | 100 ± 22 Ohm |
| 200 MHz | 29 dB/100m | 39.8 dB | 37.8 dB | 10.8 dB | 8.8 dB | 21.8 dB | 18.8 dB | 19 dB | 100 ± 22 Ohm |
| 250 MHz | 32.8 dB/100m | 38.3 dB | 36.3 dB | 5.5 dB | 3.5 dB | 19.8 dB | 16.8 dB | 18.3 dB | 100 ± 32 Ohm |
| UL Voltage Rating |
|---|
| 300 V RMS |
|
Installation Temp Rating |
-30°C To +60°C |
|---|---|
|
Installation Temperature Range |
-20°C To +75°C |
|
UL Temp Rating |
60°C |
|
Storage Temperature Range |
-30°C To +60°C |
|
Operating Temperature Range |
-30°C To +60°C |
|
UV Resistance |
Yes |
|---|---|
|
Bulk Cable Weight |
47 lbs/1000ft |
|
Max. Pull Tension |
50 lbs |
|
Min. Bend Radius (Continuous Flexing) |
3.3 in |
|
NEC Articles |
Article 800 |
|---|---|
|
NEC/(UL) Compliance |
CMG-ST1 |
|
ISO/IEC Compliance |
ISO/IEC 11801 Cat 6, 60754-1, 60754-2 |
|
CPR Euroclass |
Eca |
|
Data Category |
Category 6 |
|
TIA/EIA Compliance |
ANSI/TIA-568.2-D Category 6 |
|
Other Standards |
NFPA 130 |
|
Environmental Space |
Indoor/Outdoor |
|---|---|
|
EU Directive 2000/53/EC (ELV) |
Yes |
|
EU Directive 2003/11/EC (BFR) |
Yes |
|
EU Directive 2011/65/EU (RoHS 2) |
Yes |
|
EU Directive 2012/19/EU (WEEE) |
Yes |
|
EU Directive 2015/863/EU (RoHS 2 amendment) |
Yes |
|
EU Directive Compliance |
EU Directive 2003/11/EC (BFR) |
|
EU CE Mark |
Yes |
|
Suitability - Aerial |
Yes |
|---|---|
|
Suitability - Indoor |
Yes |
|
Suitability - Non-Halogenated |
Yes |
|
Suitability - Outdoor |
Yes |
|
Suitability - Sunlight Resistance |
Yes |
|
CSA/C(UL) Flammability |
FT4 |
|---|---|
|
UL Flammability |
UL 1685 FT4 Loading |
|
IEC Flammability |
IEC 60332-3-22 |
|
IEEE Flammability |
IEEE 1202 |
|
UL voltage rating |
300 V RMS |
|
Plenum (Y/N) |
No |
|---|
|
Notes |
Jacket sequentially marked at 2 ft. intervals. |
|---|
|
Update and Revision |
Revision Number: 0.463 Revision Date: 04-29-2024 |
|---|
| Item # | Color | UPC |
|---|---|---|
| 7940T 0105000 | Black | 612825191858 |
