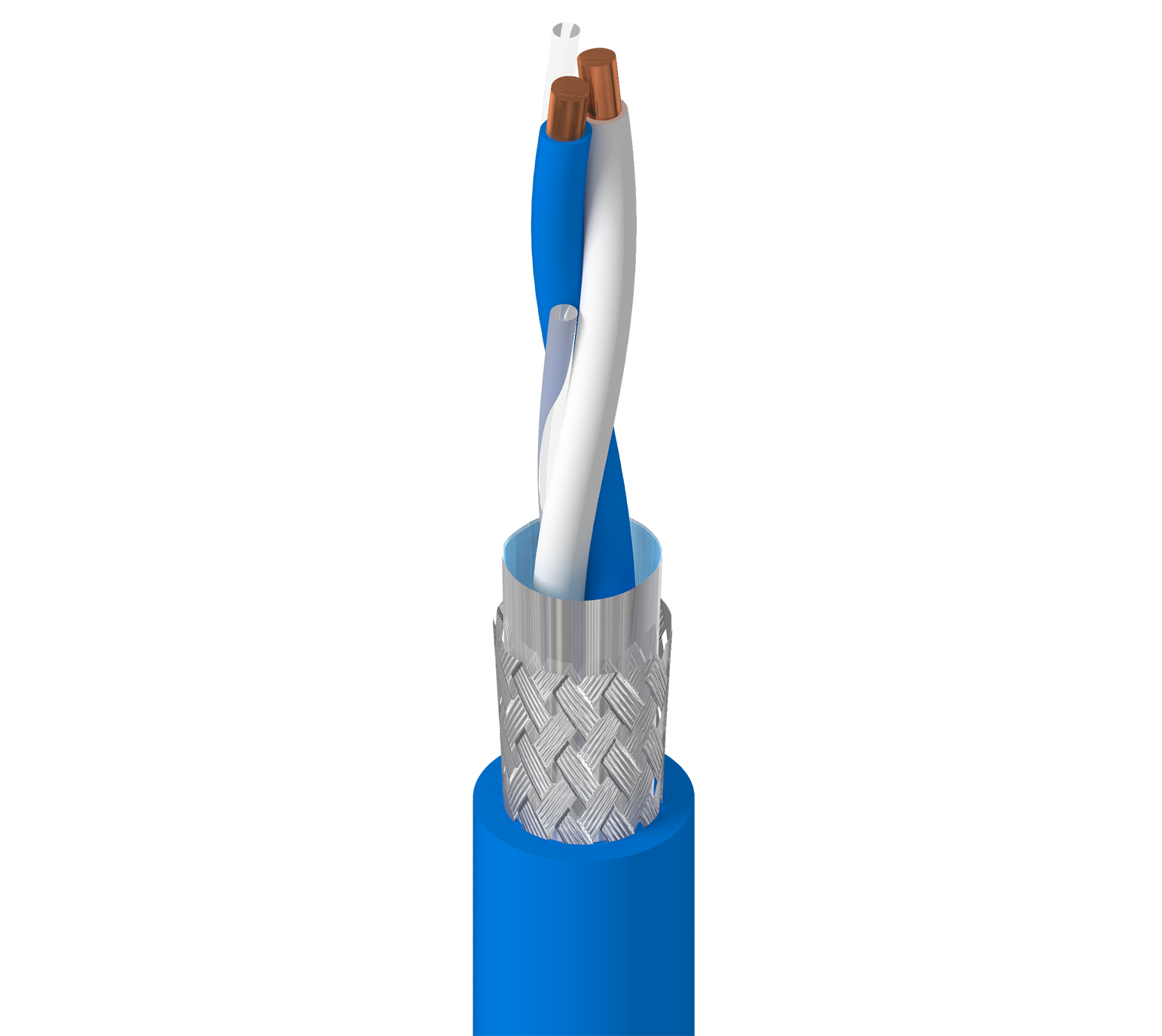

DataTuff Ind SPE 40m 1Gbps 100 Ohm 22AWG SFTP PVC
|
Suitable Applications |
Noisy environment, IIoT, factory or process automation, IP cameras and devices, data communication, etc. |
|---|
| Size | Stranding | Material | No. of Pairs |
|---|---|---|---|
| 22 AWG | Solid | BC - Bare Copper | 1 |
| Material | Nom. Insulation Diameter | Color Code |
|---|---|---|
| PE - Polyethylene (Foam) | 0.069 in (1.8 mm) | White & Blue |
| Shield Type | Material | Coverage |
|---|---|---|
| Tape | Bi-Laminate (Alum+Poly) | 100% |
| Braid | Tinned Copper (TC) | 80% |
| Material | Nom. Diameter |
|---|---|
| PVC - Polyvinyl Chloride | 0.201 in (5.11 mm) |
| Max. Conductor DCR | Max. Capacitance Unbalance |
|---|---|
| 54.3 Ohm/km | 1,200 pF/km |
| Frequency | Max. Delay | Max. Delay Skew |
|---|---|---|
| 100 MHz | 538 ns/100m | 25 ns/100m |
| Frequency [MHz] | Max. Insertion Loss (Attenuation) | Min. RL (Return Loss) [dB] | Min. SRL (Structural Return Loss) [dB] | Min. TCL [dB] | Min. ELTCTL [dB] | Max. Surface Transfer Impedance [mOhm/m] | Min. Coupling Attenuation [dB] |
|---|---|---|---|---|---|---|---|
| 1 | 2.1 dB/100m | 20 | 40 | 40 | 50 | ||
| 4 | 3.7 dB/100m | 23 | 40 | 28 | 76 | ||
| 8 | 5.2 dB/100m | 24.5 | 36.5 | 21.9 | 93 | ||
| 10 | 5.8 dB/100m | 25 | 35.0 | 20.0 | 100 | ||
| 16 | 7.3 dB/100m | 25 | 31.9 | 15.9 | 135 | ||
| 20 | 8.2 dB/100m | 25 | 30.5 | 14 | 155 | ||
| 25 | 9.2 dB/100m | 24.3 | 29 | 12 | 178 | ||
| 30 | 10.1 dB/100m | 23.8 | 27.8 | 10.5 | 200 | 85 | |
| 60 | 14.3 dB/100m | 21.7 | 23.3 | 5 | 85 | ||
| 100 | 18.5 dB/100m | 20.1 | 20 | 5 | 85 | ||
| 200 | 26.5 dB/100m | 18.0 | 15.5 | 5 | 79 | ||
| 250 | 29.7 dB/100m | 17.3 | 14 | 5 | 77 | ||
| 300 | 32.7 dB/100m | 16.8 | 12.8 | 5 | 75 | ||
| 350 | 35.4 dB/100m | 16.3 | 11.8 | 5 | 74 | ||
| 400 | 38.0 dB/100m | 15.9 | 11 | 5 | 73 | ||
| 450 | 40.4 dB/100m | 15.5 | 10.2 | 5 | 72 | ||
| 500 | 42.8 dB/100m | 15.2 | 9.5 | 5 | 71 | ||
| 550 | 45.0 dB/100m | 14.9 | 8.9 | 5 | 70 | ||
| 600 | 47.1 dB/100m | 14.7 | 8.3 | 5 | 69 |
| UL Voltage Rating | Voltage Rating |
|---|---|
| 300 V (UL AWM 2095) | 300 V (IEC 61156-11) |
| UL Temperature | Operating |
|---|---|
| 80°C | -30°C To +80°C |
| Installation Min. |
|---|
| 2 in (51 mm) |
|
Bulk Cable Weight |
10.9 lbs/1000ft |
|---|
|
Environmental Suitability |
Indoor, Outdoor, UV Resistance, Oil Resistance |
|---|---|
|
Flammability / Reaction to Fire |
FT2, IEC 60332-1-2 |
|
AWM Compliance |
AWM 2095, AWM I A/B |
|
IEEE Compliance |
IEEE 802.3bp |
|
ISO/IEC Compliance |
IEC 61156-11 |
|
European Directive Compliance |
EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE), REACH: 2020-01-16 |
|
APAC Compliance |
China RoHS II (GB/T 26572-2011) |
|
Notes |
Electrical values are expected performance based on cable testing and representative performance within a typical Belden system. |
|---|
|
Update and Revision |
Revision Number: 0.94 Revision Date: 04-29-2024 |
|---|
