MachFlex™, 2 C #20 Str BC, PVC Ins, TPE Jkt, PLTC

...

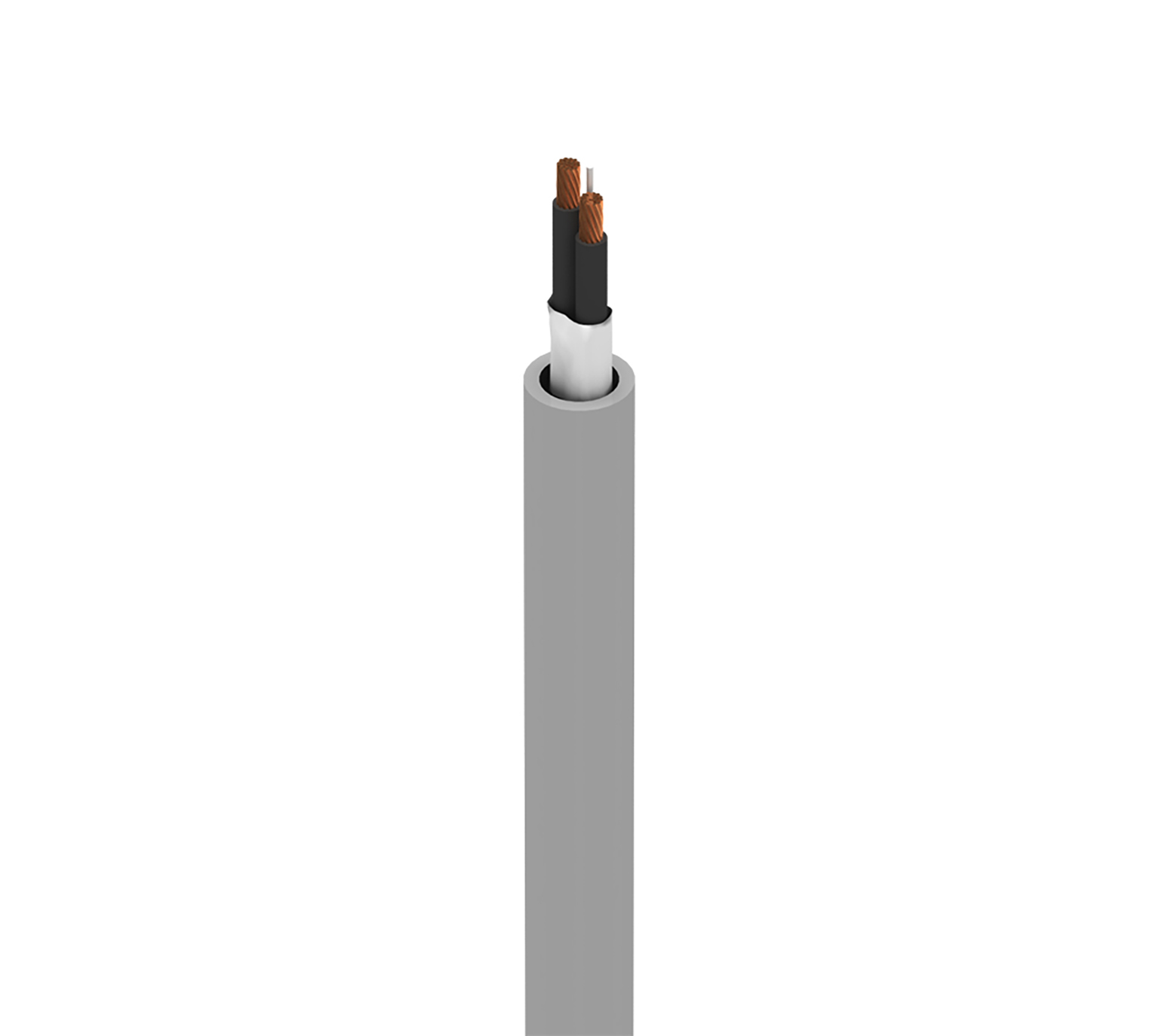

MachFlex™ for High Flex, 2 Conductor 20AWG (19x32) Bare Copper, PVC Insulation, TPE Outer Jacket, PLTC

Regions Available: Global
English
Request Quote
Share
Request Sample Get Product Alerts

Specifications
Report An Error
Product Overview

Suitable Applications

Robotics, Robot, Continuous Flex

Construction Details
Conductor
Element No. of Elements Size Stranding Material
Conductor(s) 2 20 AWG 19x32 BC - Bare Copper
Insulation
Element Material Nom. Thickness Nom. Insulation Diameter Color Code
Conductor(s) PVC - Polyvinyl Chloride 0.015 in (0.38 mm) 0.066 in (1.7 mm) Black and Numbered
Outer Shield
Material
No Shield
Outer Jacket
Separator Material Nom. Thickness Nom. Diameter
non-Woven Tape TPE - Thermoplastic Elastomer 0.037 in (0.94 mm) 0.211 in

Overall Cable Diameter (Nominal)

0.211 in

Electrical Characteristics
Electricals
Nom. Conductor DCR Max. Current
10.7 Ohm/1000ft 9 Amps per Conductor at 30ºC
Voltage
UL Voltage Rating Voltage Rating
300 V 600 V
Mechanical Characteristics
Temperature
UL Temperature Operating
UL : 90°C, AWM 20327 : 105°C -40°C To 105°C
Bend Radius
Stationary Min. Installation Min.
2.11 in (53.6 mm) 2.11 in

Max. Pull Tension

30 lbs (14 kg)

Bulk Cable Weight

25 lbs/1000ft

Standards and Compliance

Environmental Suitability

Outdoor, Sunlight Resistance, UV Resistance, Oil Resistance

Flammability / Reaction to Fire

UL1685 UL Loading, IEEE 1202 FT4

NEC / UL Compliance

Article 725, PLTC

AWM Compliance

AWM 20327, AWM I/II A/B

European Directive Compliance

EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)

APAC Compliance

China RoHS II (GB/T 26572-2011)

History

Update and Revision

Revision Number: 0.378 Revision Date: 02-15-2024

Show All Specifications
Hide Specifications
Part Numbers
Item # Color Putup Type Length UPC Footnote
7400W 060250 Chrome Reel 250 ft 612825185253 C
7400W 0601000 Chrome Reel 1,000 ft 612825185246 C
7400W 0605000 Chrome Reel 5,000 ft 612825185260
