7415WS

MachFlex™, 11+1G C #18 Str BC, PVC-NYL Ins, OA TC Brd, TPE Jkt, 1000V WTTC, 600V TC-ER

...

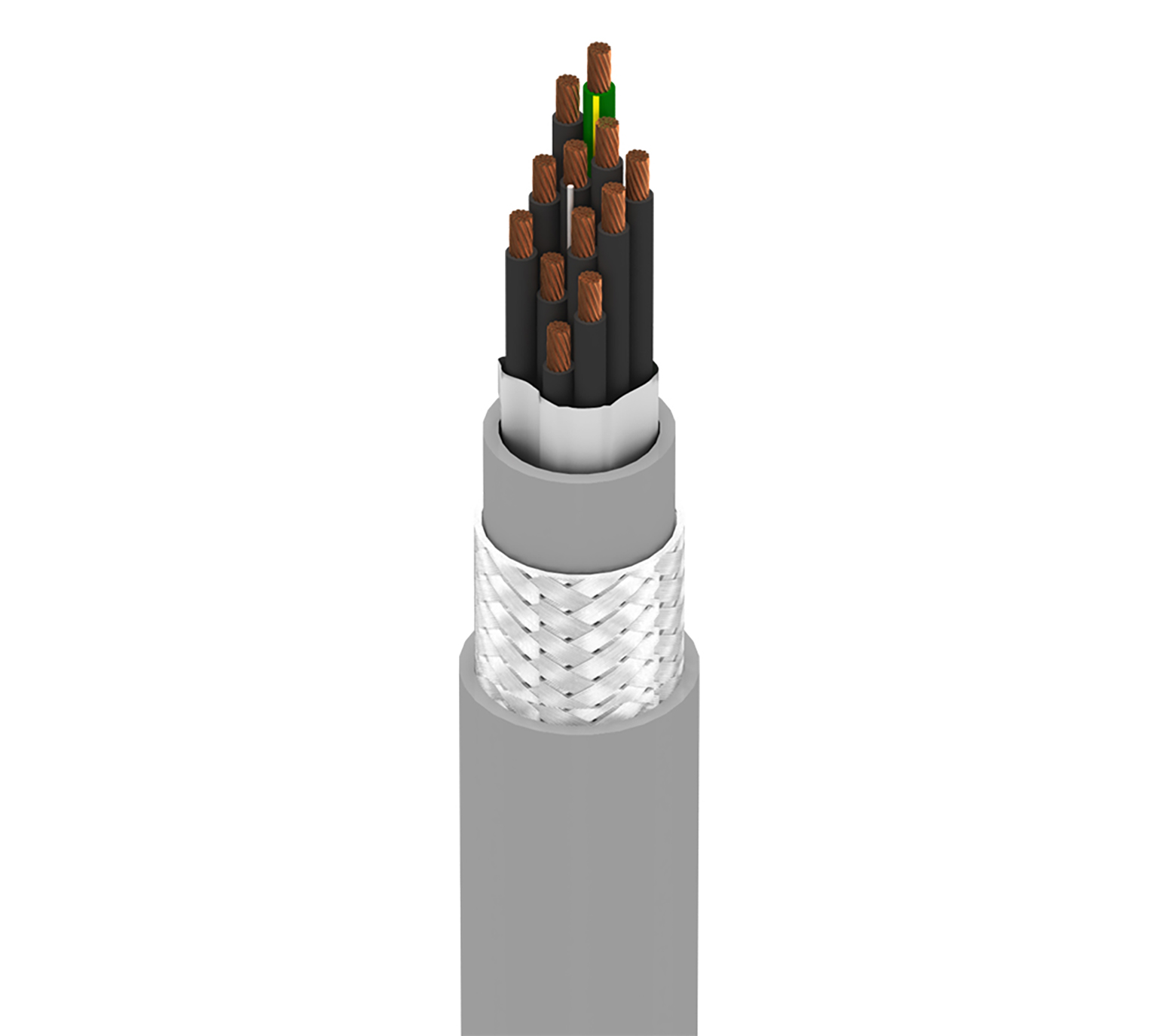

MachFlex™ for High Flex, 11+1G Conductor 18AWG (16x30) Bare Copper, PVC-NYL Insulation, Overall Tinned Copper Braid(85%) Shield, TPE Outer Jacket, 1000V WTTC, 600V TC-ER
English
Request Quote
Share
Request Sample Get Product Alerts

Specifications
Report An Error
Product Overview

Suitable Applications

Robotics, Robot, Continuous Flex

Construction Details
Conductor
Element No. of Elements Size Stranding Material
Conductor(s) 11 18 AWG 16x30 BC - Bare Copper
Ground Wire 1 18 AWG 16x30 BC - Bare Copper
Insulation
Element Material Nom. Thickness Nom. Insulation Diameter Color Code
Conductor(s) PVC/Nylon - Polyvinyl Chloride + Nylon 0.021 in (0.53 mm) 0.089 in (2.3 mm) Black and Numbered
Ground Wire PVC/Nylon - Polyvinyl Chloride + Nylon 0.021 in (0.53 mm) 0.089 in (2.3 mm) Green/Yellow
Outer Shield
Shield Type Material Coverage
Braid Tinned Copper (TC) 85%
Inner Jacket
Separator Material Nom. Thickness Nom. Diameter Color
non-Woven Tape TPE - Thermoplastic Elastomer 0.25 in (6.4 mm) 0.424 in (10.8 mm) Chrome
Outer Jacket
Material Nom. Thickness Nom. Diameter
TPE - Thermoplastic Elastomer 0.063 in (1.6 mm) 0.578 in

Overall Cable Diameter (Nominal)

0.578 in

Electrical Characteristics
Electricals
Element Nom. Conductor DCR Max. Current
Conductor(s) 6.5 Ohm/1000ft 10.5 Amps per Conductor at 30ºC
Ground Wire 7.06 Ohm/1000ft (23.2 Ohm/km) 24 Amps per Conductor at 30ºC
Voltage
UL Voltage Rating
1000 V (WTTC), 600 V (TC-ER)
Mechanical Characteristics
Temperature
UL Temperature Operating
UL : 90°C Dry, 75°C Wet; AWM 20328 : 105°C -40°C To 105°C
Bend Radius
Stationary Min. Installation Min.
2.31 in (58.7 mm) 2.89 in

Max. Pull Tension

249.6 lbs (113.2 kg)

Bulk Cable Weight

196 lbs/1000ft

Standards and Compliance

Environmental Suitability

Outdoor, Sunlight Resistance, UV Resistance, Oil Resistance

Flammability / Reaction to Fire

UL1685 UL Loading, IEEE 1202 FT4

NEC / UL Compliance

Article 336

AWM Compliance

AWM 20328, AWM I/II A/B

CEC / C(UL) Compliance

CIC, TC

European Directive Compliance

EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)

APAC Compliance

China RoHS II (GB/T 26572-2011)

History

Update and Revision

Revision Number: 0.377 Revision Date: 01-10-2024

Show All Specifications
Hide Specifications
Part Numbers
Item # Color Putup Type Length UPC Footnote
7415WS 060250 Chrome Reel 250 ft 612825185970 C
7415WS 0601000 Chrome Reel 1,000 ft 612825185963 C
