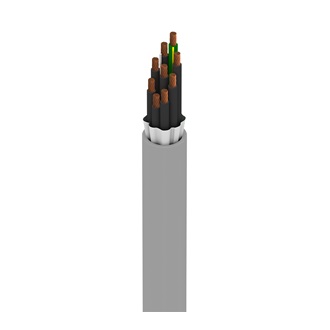

Product Number: 7439W
MachFlex™, 8+1G C #14 Str BC, PVC-NYL Ins, TPE Jkt, 1000V WTTC, 600V TC-ER
MachFlex™ for High Flex, 8+1G Conductor 14AWG (41x30) Bare Copper, PVC-NYL Insulation, TPE Outer Jacket, 1000V WTTC, 600V TC-ER
-
Availability:
Global
-
Global inventory:
Available
Specifications
Product Overview
|
Suitable Applications |
Robotics, Robot, Continuous Flex |
|---|
Physical Characteristics (Overall)
Conductor
| Element | AWG | Stranding | Material | No. of Conductors |
|---|---|---|---|---|
| 14 | 41x30 | BC - Bare Copper | 8 | |
| Ground Wire | 14 | 41x30 | BC - Bare Copper |
|
Conductor Count |
9 |
|---|
Insulation
| Material | Nominal Diameter |
|---|---|
| PVC/Nylon - Polyvinyl Chloride + Nylon | 0.117 in |
Color Chart
| Number | Color |
|---|---|
| 1 | Black and Numbered 1 |
| 2 | Black and Numbered 2 |
| 3 | Black and Numbered 3 |
| 4 | Black and Numbered 4 |
| 5 | Black and Numbered 5 |
| 6 | Black and Numbered 6 |
| 7 | Black and Numbered 7 |
| 8 | Black and Numbered 8 |
| 9 | Green/Yellow |
Outer Shield
| Material |
|---|
| No Shield |
Outer Jacket
| Material | Nominal Diameter | Nominal Wall Thickness |
|---|---|---|
| TPE - Thermoplastic Elastomer | 0.593 in | 0.063 in |
Electrical Characteristics
Conductor DCR
| Nominal Conductor DCR |
|---|
| 2.5 Ohm/1000ft |
Voltage
| UL Voltage Rating |
|---|
| 1000 V RMS |
| 600 V RMS |
Temperature Range
|
UL Temp Rating |
75°C Dry, 90°C Wet |
|---|---|
|
Other Temp Range |
Flexing: -5°C To +90 °C |
Mechanical Characteristics
|
Oil Resistance |
Yes |
|---|---|
|
Flex Cycle Rating |
1 Million Flexes |
|
Bulk Cable Weight |
171 lbs/1000ft |
|
Max. Pull Tension |
603 lbs |
|
Min. Bend Radius (Continuous Flexing) |
5.9 in |
Standards
|
NEC/(UL) Compliance |
TC-ER, WTTC |
|---|---|
|
CEC/C(UL) Compliance |
CIC, TC |
|
UL AWM Style Compliance |
AWM 20328 |
|
CSA AWM Compliance |
AWM I/II A/B |
Applicable Environmental and Other Programs
|
EU Directive 2000/53/EC (ELV) |
Yes |
|---|---|
|
EU Directive 2011/65/EU (RoHS 2) |
Yes |
|
EU Directive 2012/19/EU (WEEE) |
Yes |
|
EU Directive 2015/863/EU (RoHS 2 amendment) |
Yes |
|
EU Directive Compliance |
EU Directive 2003/11/EC (BFR) |
|
MII Order #39 (China RoHS) |
Yes |
Suitability
|
Suitability - Non-Halogenated |
No |
|---|---|
|
Suitability - Oil Resistance |
Yes - Oil Res II |
|
Suitability - Sunlight Resistance |
Yes |
Flammability, LS0H, Toxicity Testing
|
UL Flammability |
UL1685 UL Loading |
|---|---|
|
CSA Flammability |
FT4 |
|
IEEE Flammability |
1202 |
|
UL voltage rating |
1000 V RMS |
Plenum/Non-Plenum
|
Plenum (Y/N) |
No |
|---|
Related Part Numbers
|
Footnote |
C - CRATE REEL PUT-UP. |
|---|
History
|
Update and Revision |
Revision Number: 0.241 Revision Date: 01-10-2024 |
|---|
Information
|
Update and Revision |
Revision Number: 0.241 Revision Date: 01-10-2024 |
|---|
Part Numbers
| Item # | Color | Put-Up Type | Length | UPC |
|---|---|---|---|---|
| 7439W 060250 | Chrome | Reel | 250 ft | 612825186724 |
| 7439W 0601000 | Chrome | Reel | 1,000 ft | 612825186717 |
| 7439W 0605000 | Chrome | Reel | 5,000 ft | 612825186731 |
