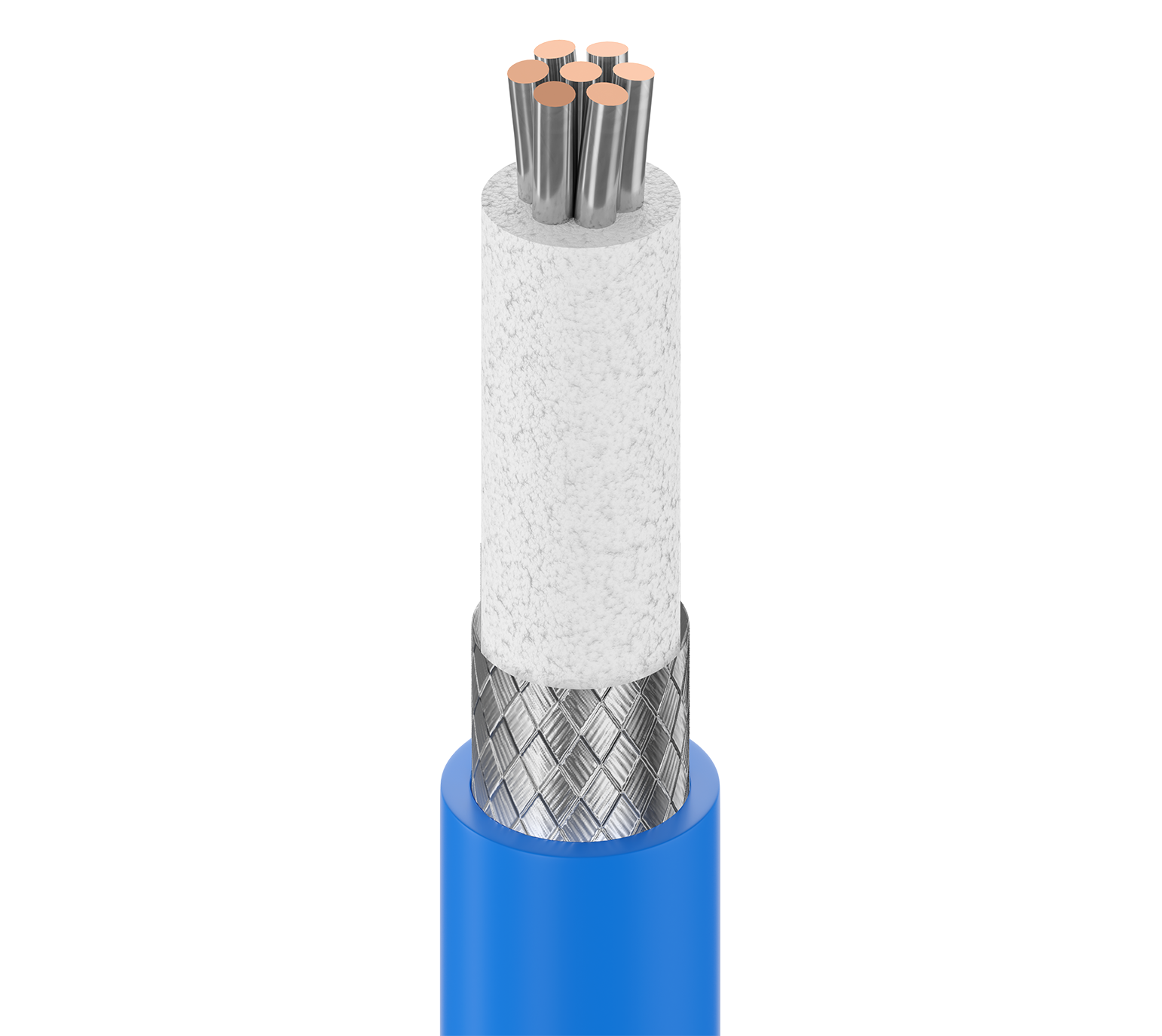

Product Number: 7500A
MachFlex™, Vision Coax 75Ω, #30 Str Tinned Alloy, FPE Ins, OA TC Brd, PVC Jkt, High Flex, AWM 1354
30AWG (7x38) Tinned Alloy, Foam PE Insulation, Overall Tinned Copper Braid(95%) Shield, PVC Outer Jacket, High Flex, AWM 1354
-
Availability:
Global
-
Global inventory:
Available
Specifications
Product Overview
|
Suitable Applications |
Automation, Robotics, Vision Control |
|---|
Construction Details
Conductor
| Size | Stranding | Nom. Diameter | Material |
|---|---|---|---|
| 30 AWG | 7x38 | 0.012 in | TCA - Tinned Copper Alloy |
Insulation
| Material | Nom. Insulation Diameter | Color Code |
|---|---|---|
| PE - Polyethylene (Foam) | 0.056 in (1.4 mm) | White |
Outer Shield
| Outer Shield Type | Material | Coverage |
|---|---|---|
| French Braid | Tinned Copper (TC) | 95% |
Outer Jacket
| Material | Nom. Diameter |
|---|---|
| PVC - Polyvinyl Chloride | 0.110 in (2.79 mm) |
|
Overall Cable Diameter (Nominal) |
0.110 in (2.79 mm) |
|---|
Electrical Characteristics
Attenuation
| Frequency | Nom. Attenuation |
|---|---|
| 2.2 MHz | 0.9 dB/100ft |
| 5 MHz | 1.4 dB/100ft |
| 10 MHz | 2.0 dB/100ft |
| 30 MHz | 3.4 dB/100ft |
| 50 MHz | 4.4 dB/100ft |
| 100 MHz | 6.4 dB/100ft |
Electricals
| Nom. Conductor DCR | Nom. Outer Shield DCR | Nom. Capacitance Cond-to-Shield | Nom. Characteristic Impedance | Nom. Velocity of Prop. |
|---|---|---|---|---|
| 108 Ohm/1000ft | 13.3 Ohm/1000ft (43.6 Ohm/km) | 17.3 pF/ft (56.8 pF/m) | 75 Ohm | 78% |
Voltage
| UL Voltage Rating |
|---|
| 30 V (UL AWM 1354) |
Mechanical Characteristics
Temperature
| UL Temperature | Operating |
|---|---|
| 80°C | -35°C to +80°C |
Bend Radius
| Installation Min. | Flexing Min. |
|---|---|
| 1.1 in (28 mm) | 2.2 in (56 mm) |
|
Max. Pull Tension |
14 lbs (6.4 kg) |
|---|---|
|
Bulk Cable Weight |
8 lbs/1000ft |
Standards and Compliance
|
Environmental Suitability |
Indoor (Not Riser or Plenum), Indoor |
|---|---|
|
Sustainability |
CA Prop 65 |
|
Flammability / Reaction to Fire |
UL 1581 Horizontal Wire, FT1 |
|
AWM Compliance |
AWM 1354, AWM I/II A/B |
|
CEC / C(UL) Compliance |
LL7874 |
|
European Directive Compliance |
EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
|
APAC Compliance |
China RoHS II (GB/T 26572-2011) |
History
|
Update and Revision |
Revision Number: 0.540 Revision Date: 02-03-2025 |
|---|
Information
|
Update and Revision |
Revision Number: 0.540 Revision Date: 02-03-2025 |
|---|
Part Numbers
| Item # | Color | Putup Type | Length | UPC | Footnote |
|---|---|---|---|---|---|
| 7500A G7X1000 | Blue, Matte | Reel | 1,000 ft | 612825187202 | Z |
